2619100000 - 93mm Surge Voltage Arrester for Low Voltage Applications

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

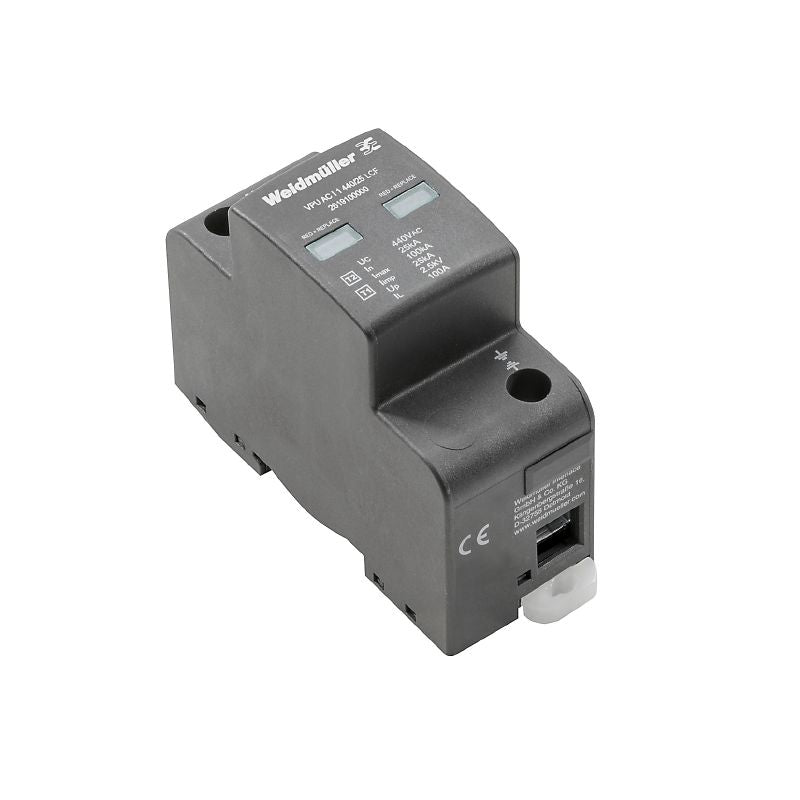

Introducing the VPU AC I 1 440/25 LCF, a reliable surge voltage arrester tailored for low voltage applications within single-phase TN systems This device adheres to RoHS regulations, ensuring safe materials and manufacturing processes With impressive surge protection capabilities, it stands firm against voltage surges Measuring at a depth of 93 mm, a height of 90 mm, and a width of 36 mm, this arrester fits snugly into a 2TE installation housing.

It is engineered to function efficiently in temperatures ranging from -40 °C to 85 °C, with humidity levels from 5% to 95% For ease of monitoring, the arrester is equipped with an optical display: a green light indicates normal operation, while a red light signals when replacement is necessary It supports a maximum continuous voltage of 440 V and complies with the insulation coordination standards set by EN 50178, making it a dependable choice for your electrical safety needs.

Features and Benefits:

•Compact design with installation housing for efficient use of space.

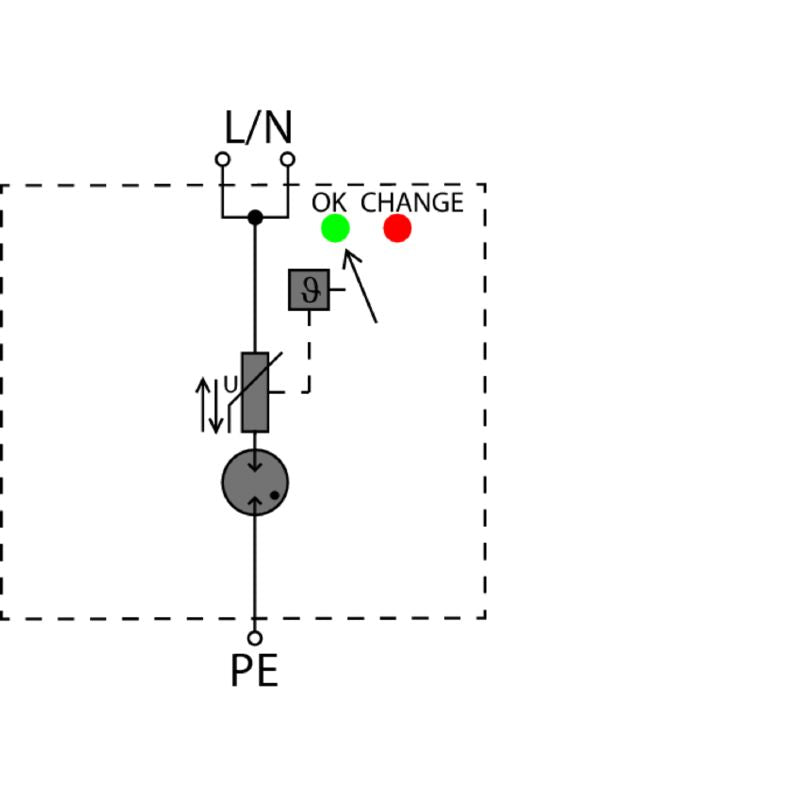

•Green display for operational status and red display indicating a defect.

•Compliance with both IEC and EN standards for safety and performance.

•Installation in count-in systems without leakage current.

•Low voltage power distribution.

•Protection against surge voltages in electrical systems.

Specifications:
