2593130000 - IP67 Rated 24V Stainless Steel Housing Device, 96mm Height

Description:

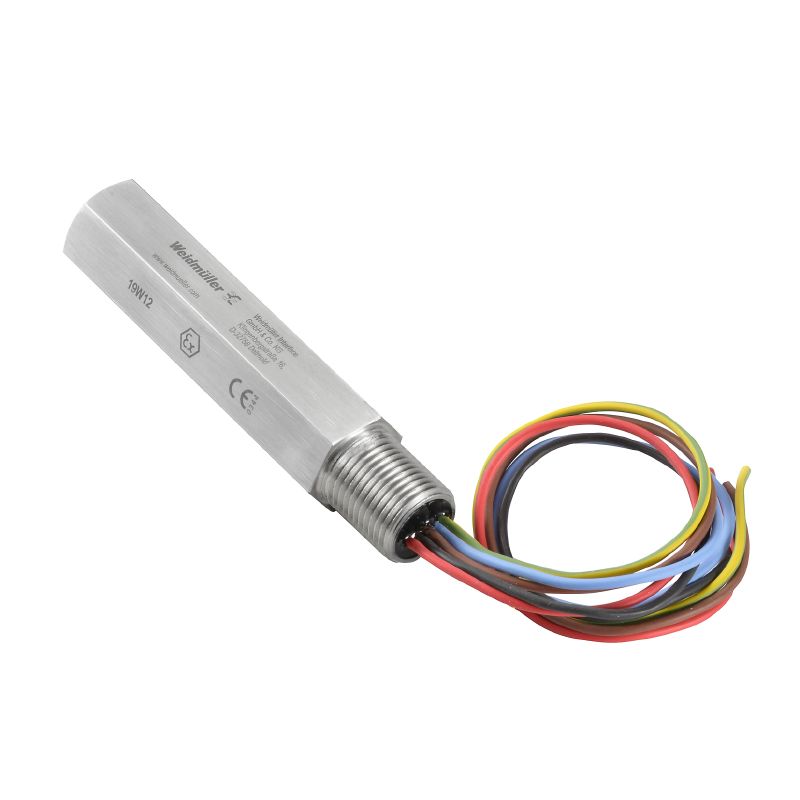

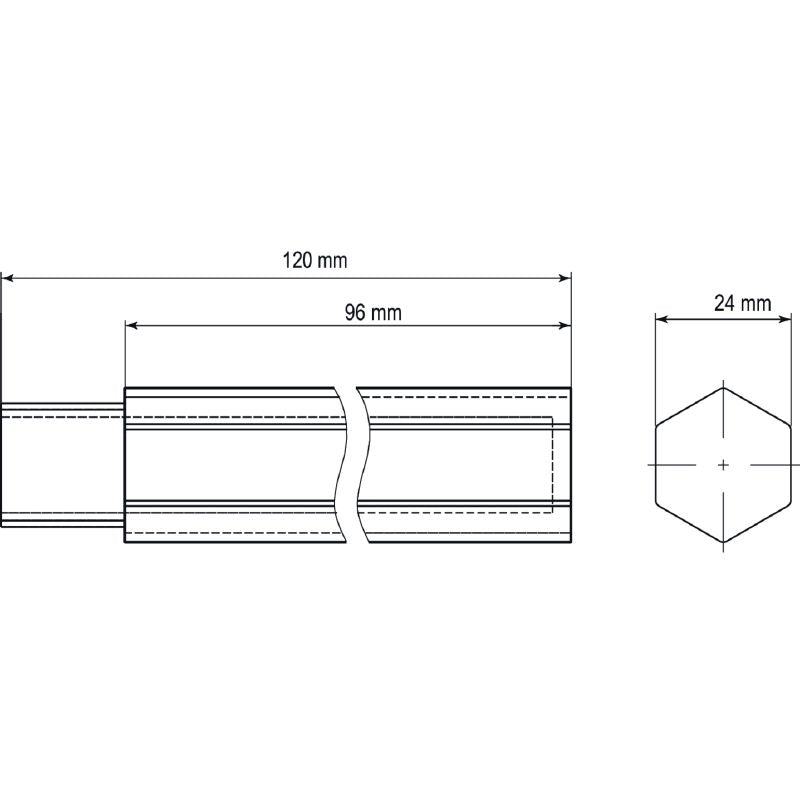

Introducing the VCG 24V EX 4 NPT1/2, a robust unit engineered for optimal performance across a temperature spectrum of -30 °C to 60 °C This model features a durable stainless steel screw mounting housing, ensuring longevity and reliability With dimensions of 96 mm in height, 24 mm in width, and 120 mm in length, along with a diameter of 28 mm, it’s compact yet efficient, weighing in at 300 g Designed with care for the environment, this product is RoHS compliant and free from any SVHC exceeding 0.

1 wt% Its IP67 protection rating offers excellent resistance against dust and water, while also prioritizing electrical safety Perfect for those seeking a dependable and safe solution for their applications.

Features and Benefits:

•Suitable for FIELD BUS FOUNDATION BUS H1 applications according to IEC 61158-2.

•Rated voltage of 24 V, with a maximum input voltage of 33 V.

•Lightning test current rating of 2 kA for both wire-PE and wire-wire configurations.

•Supports a frequency range from 0 Hz to 30 MHz.

•Designed for straight connections with a 1/2" NPT.

•Provides dielectric strength at FG against PE of ≥ 500 V.

•Measurement.

•Monitoring.

•Setting.

Specifications:
