2591700000 - Low-Voltage Surge Protector with Remote Contact & UL Certification

2591700000 - Low-Voltage Surge Protector with Remote Contact & UL Certification

SKU: 2591700000 Download PDF

Variant:
  • 2591700000 - Low-Voltage Surge Protector with Remote Contact & UL Certification
Now $200.85
BEFORE   $0.00 Now $200.85
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

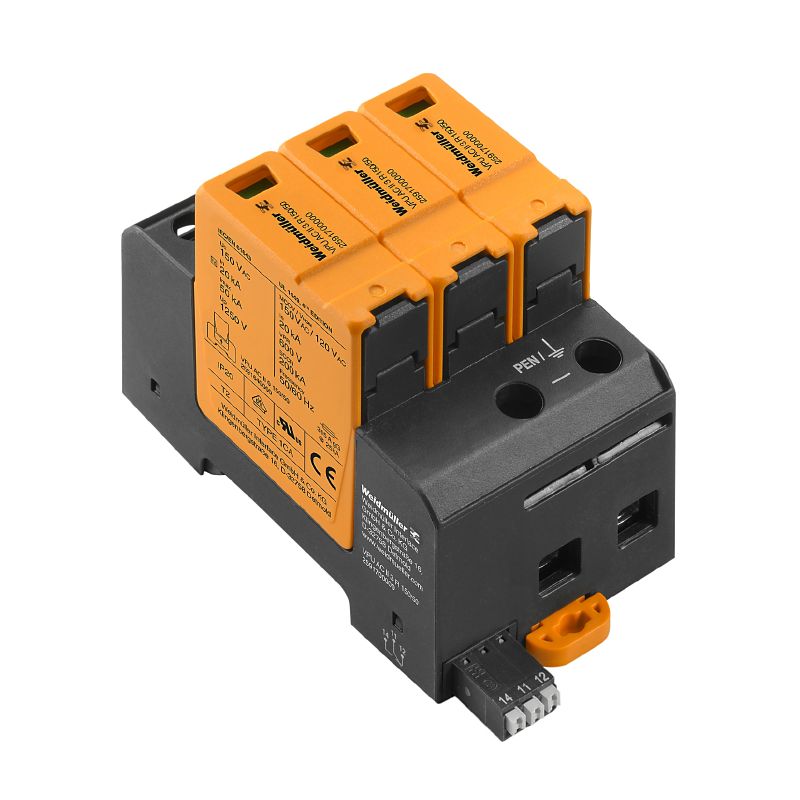

Introducing the VPU AC II 3 R 150/50, a dependable low-voltage surge protector specifically designed for use in TN-C systems This device not only meets RoHS standards but also holds a UL certification for added assurance Its surge voltage classification is rated at category III, and it operates efficiently within a temperature range of -40 °C to 85 °C With a maximum continuous voltage rating of 150 V AC, it is built to withstand high ambient temperatures, making it a robust choice for various environments.

Additionally, the surge protector comes with visual indicators, allowing for easy monitoring of its performance and alerting users in case of a failure.

Features and Benefits:

    •Compliant with RoHS regulations.

    •Remote contact functionality.

    •Visual indicators for functionality status.

    •Power distribution.

Specifications:

 Depth 68 mm
 Height 104.5 mm
 Width 54 mm
 Net weight 379 g
 Operating altitude ≤ 4000 m
 Protection degree IP20 in installed state
 Rated Voltage U 120 V
 MCOV (L-PE) 150 V
 SCCR 200 kA
 I n 20 kA
 Ambient temperature (operational), max. 85 °C
 Ambient temperature (operational), min. -40 °C
 Discharge current I max (8/20µs) wire-PE 50 kA
 Discharge current I n (8/20µs) wire-PE 20 kA
 Combined pulse U OC 6 kV
 Response time / fallback time ≤ 25 ns
 Number of poles 3
 Connection type PUSH IN
 Stripping length 8 mm
 Rated data IEC / EN Type II, Type III
 Frequency range, max. 60 Hz
 Frequency range, min. 50 Hz
