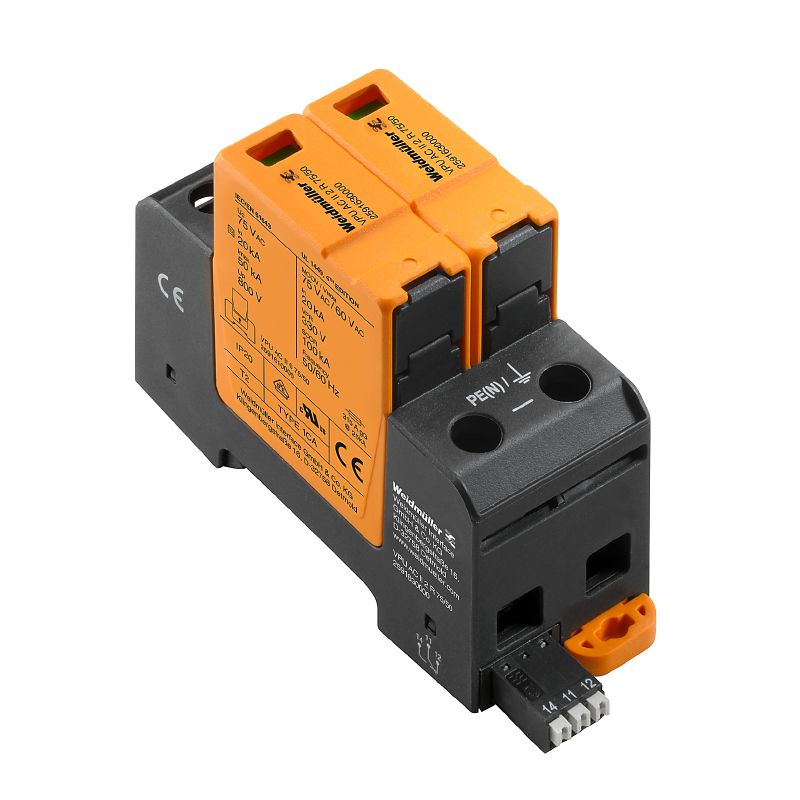

2591630000 - VPU AC II 2 R Surge Protector for Low Voltage Systems

2591630000 - VPU AC II 2 R Surge Protector for Low Voltage Systems

SKU: 2591630000 Download PDF

Variant:
  • 2591630000 - VPU AC II 2 R Surge Protector for Low Voltage Systems
Now $138.15
BEFORE   $0.00 Now $138.15
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

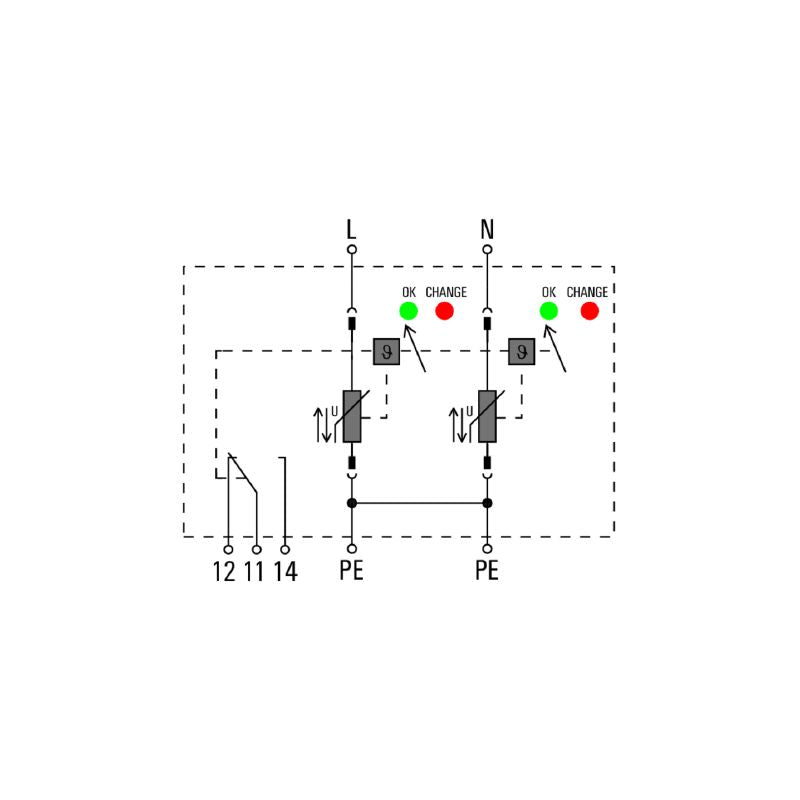

Introducing the VPU AC II 2 R 75/50, a robust surge voltage arrester specifically engineered for low voltage environments This reliable device offers surge protection while featuring a convenient remote contact capability Ideal for single-phase TN-S systems, it meets RoHS standards and has received UL certification (certificate number E3542610000), ensuring you choose a product that is both safe and effective.

Features and Benefits:

    •Compliant with RoHS without exemptions.

    •Dimensions include a depth of 68 mm, height of 104.5 mm, and width of 36 mm.

    •Net weight of 238 g.

    •Operating temperature range from -40 °C to +85 °C.

    •Humidity tolerance of 5 to 95% relative humidity.

    •Protection degree of IP20 when installed.

    •Optical function display indicating operational status.

    •Surge protection in low voltage power distribution systems.

Specifications:

 Depth 68 mm
 Depth (inches) 2.677 inch
 Height 104.5 mm
 Height (inches) 4.114 inch
 Width 36 mm
 Width (inches) 1.417 inch
 Storage temperature -40 °C to 85 °C
 Operating temperature -40 °C to 85 °C
 Rated Voltage U_N 60 V
 VPR (L/N-PE) 330 V
 MCOV (L-PE) 75 V
 SCCR 100 kA
 I_n 20 kA
 VPR (L-N) 700 V
 Wire connection method Screw connection
 Protection level U_p at I_N (L/N-PE) ≤ 0.8 kV
 Response time ≤ 25 ns
 Discharge current (type III) 3 kA
 Discharge current I_max (8/20µs) wire-PE 50 kA
 Discharge current I_n (8/20µs) wire-PE 20 kA
 Number of poles 2
