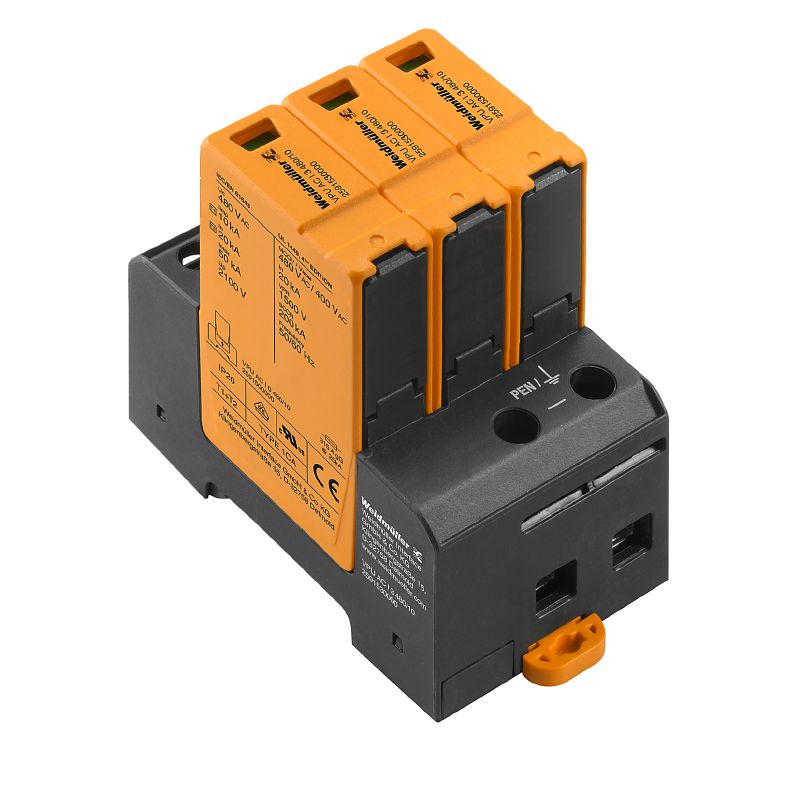

2591530000 - Low Voltage Surge Arrester, IP20, 400V, 50kA Protection

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the VPU AC I 3 480/10, a robust low voltage surge voltage arrester expertly crafted for surge protection in TN-C systems Compliant with RoHS regulations, it is housed in an IP20 enclosure, making it compatible with standard TS 35 mounting rails This device operates at a rated voltage of 400 V and withstands a maximum continuous voltage of 480 V Weighing in at 565 g, it is designed to function efficiently across extreme temperatures of -40 °C to +85 °C and can handle humidity levels between 5% and 95%.

With impressive technical specifications, it boasts a short-circuit current rating of 50 kA and a surge current rating of 20 kA, ensuring reliable performance for your surge protection needs.

Features and Benefits:

•Compliant with RoHS without exemptions.

•Installed in an IP20 housing.

•Suitable for three-pole connections.

•Designed for surge protection in low voltage power distribution.

•Surge protection in low voltage power distribution systems.
