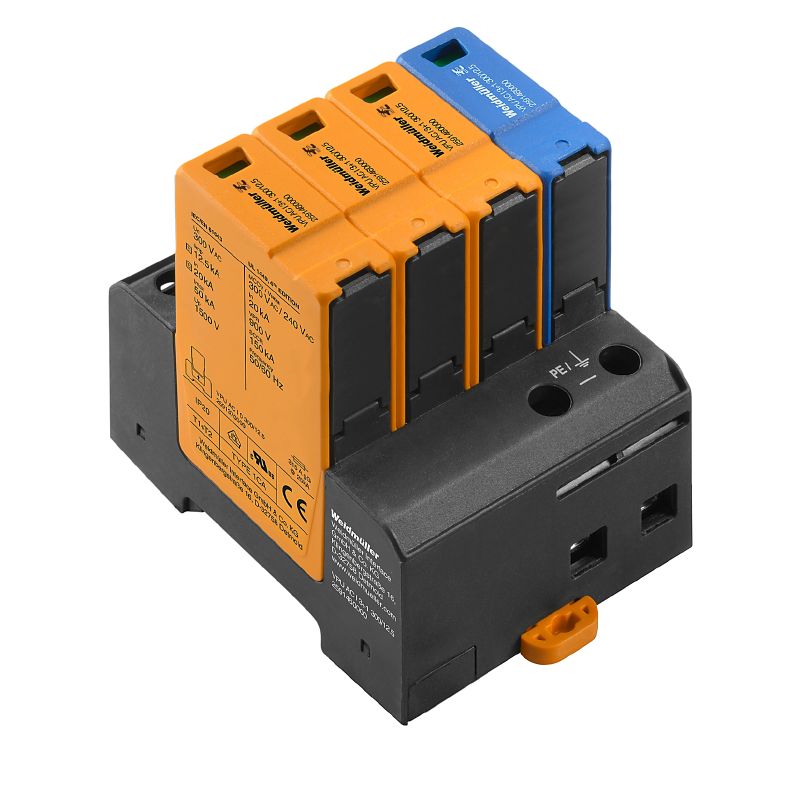

2591460000 - VPU Surge Protector for Low Voltage Systems, -40°C to 85°C

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

The VPU AC I 3+1 300/125 surge protection device is expertly crafted to safeguard low voltage systems against surges, adhering to industry standards It functions smoothly in TN-C-S, TN-S, TT, and IT configurations, whether or not neutral is included This unit operates within a temperature range of -40 °C to 85 °C and is capable of withstanding humidity levels from 5% to 95% Additionally, it carries RoHS certification, affirming its compliance with environmental safety regulations.

Features and Benefits:

•Four-pole device.

•Protection degree IP20 in installed state.

•Housing designed for installation.

•Optical function display indicating operational status.

•Compliant with IEC 61643-11 and UL 1449 standards.

•Available in multiple colors: black, orange, blue.

•Suitable for various low voltage networks and configurations.

•Surge protection in power distribution systems.

•Used in IT power systems.

Specifications:
