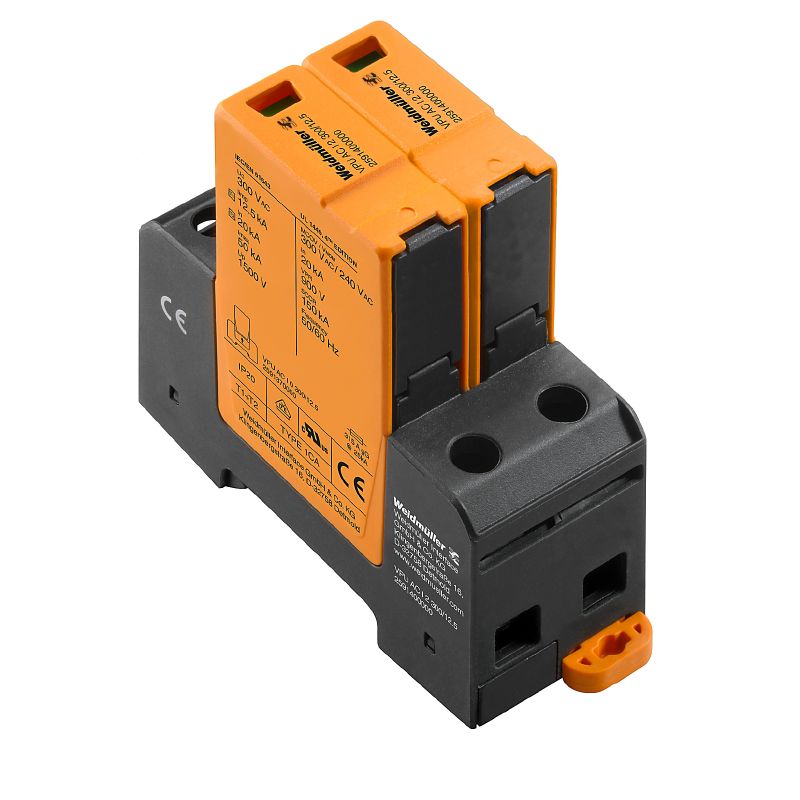

2591400000 - Low-Voltage Surge Arrester for TS 35 Rail, -40°C to +85°C

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the VPU AC I 2 300/125, a sophisticated solution for surge protection tailored to low-voltage, single-phase TN networks This surge voltage arrester is compliant with multiple standards, including RoHS, and boasts UL certification (file number E3542610000) Designed for durability, it operates efficiently across a wide temperature range from -40°C to +85°C and can handle humidity levels between 5% and 95%.

Installation is a breeze with its housing that fits TS 35 mounting rails, and it includes optical indicators to provide clear visibility of its operational status Keep your electrical system protected with this reliable surge arrester.

Features and Benefits:

•Compliant with RoHS without exemptions.

•Optical function display shows green for OK and red for needing replacement.

•Protection degree of IP20 when installed.

•Debut housing designed for ease of installation.

•Max operating altitude is 4000m.

•Used for power distribution and surge protection in various electrical systems.

Specifications:
