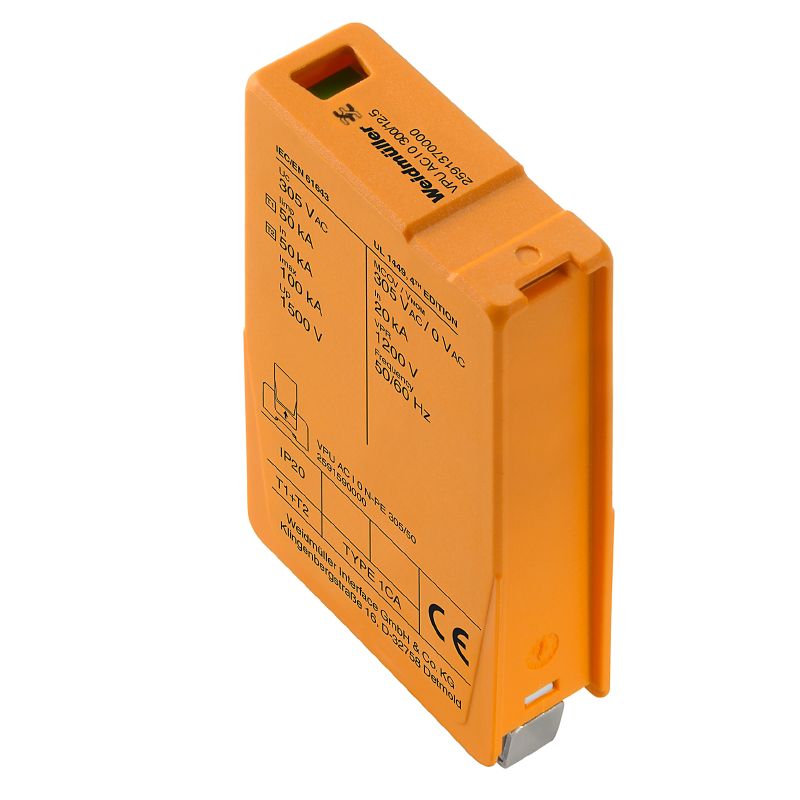

2591370000 - Surge Protection AC Arrester, 240V, SPD TYPE 1CA

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Ensure your devices are protected with this spare arrester, specifically engineered for surge protection and classified as SPD TYPE 1CA With a rated voltage of 240 V and a maximum continuous voltage of 300 V, it is built to withstand a broad operating temperature range of -40 °C to 85 °C This product meets RoHS standards and is free from any SVHC above 01 wt% Designed for easy installation, it is suitable for altitudes up to 4000 meters.

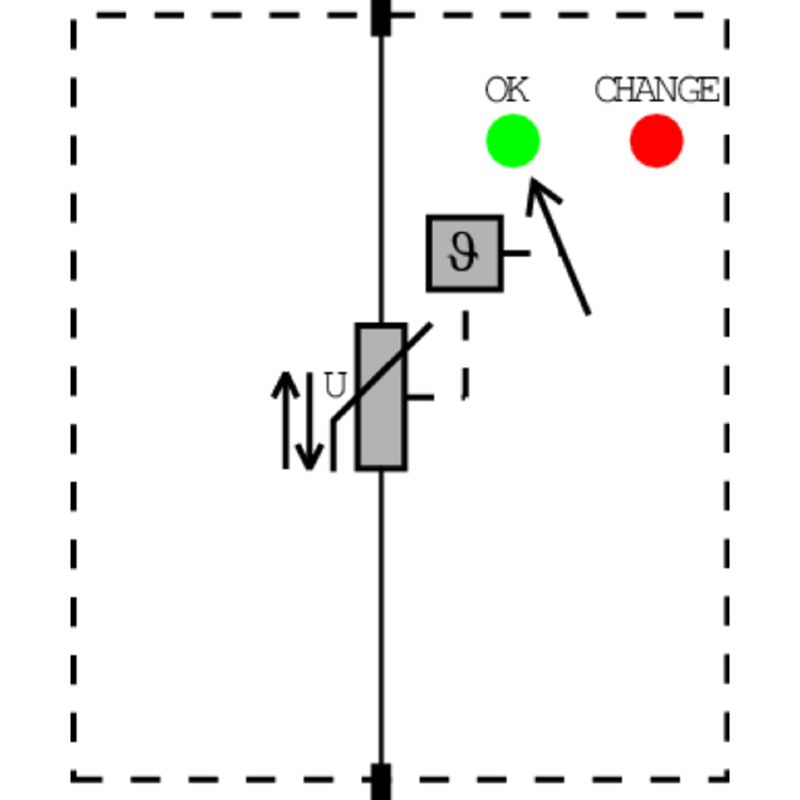

Additionally, it features integrated optical indicators that display a green light for operational status and a red light to indicate when replacement is needed.

Features and Benefits:

•Protection degree of IP20 in installed state.

•MTBF of 15 a.

•No fuse necessary for protection.

•Discharge current rating off 50 kA for wire-PE.

•Integrated back-up fuse requirement is absent.

•Voltage type is AC.

•Surge protection in power distribution.

Specifications:
