2591300000 - 200 kA Surge Arrester for Low Voltage Networks

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

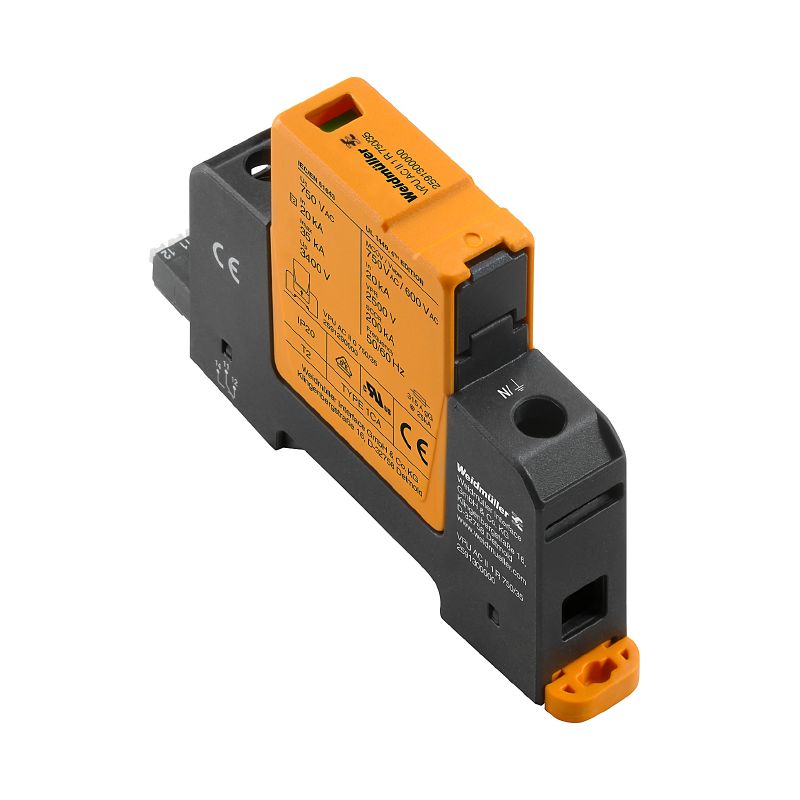

Experience reliable surge protection with the VPU AC II 1 R 750/35 surge voltage arrester This robust single-phase unit is engineered specifically for low voltage environments and includes a convenient remote contact feature It complies with RoHS standards and carries UL certification (Certificate No E354261) Capable of handling surges up to 200 kA, this device operates effectively within a temperature range of -40 °C to 85 °C, making it an excellent choice for TN low voltage networks.

Stay protected with this essential component for your electrical systems.

Features and Benefits:

•Compliant with RoHS without exemptions.

•IP20 protection degree in installed state.

•Integrated optical function display for monitoring.

•Suitable for environments with temperatures from -40 °C to 85 °C.

•No external fuses required for certain current ratings.

•Signaling contact with a rating of 250 V 1A 1CO.

•Used in surge protection applications within low voltage power distribution systems.

Specifications:
