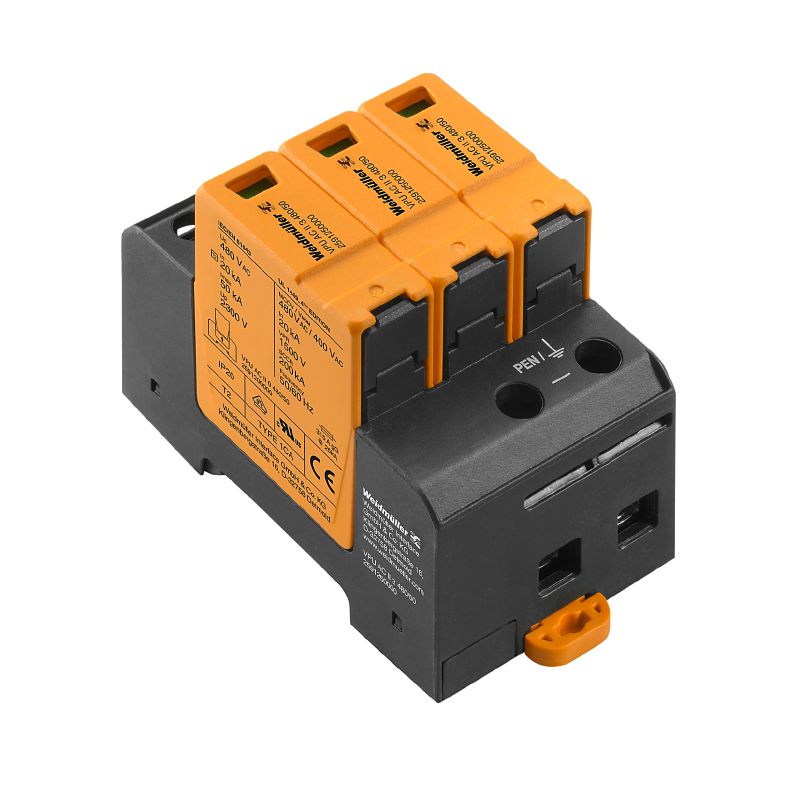

2591250000 - VPU AC II Surge Arrester for Low Voltage Protection

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the VPU AC II 3 surge voltage arrester, specifically engineered for low voltage systems, offering reliable surge protection in both TN-C and IT configurations without a neutral line This device adheres to RoHS standards and is housed within a compact 3TE installation unit It is designed for easy mounting on a TS 35 rail and operates effectively at altitudes of up to 4000 meters A user-friendly optical function display allows for quick status monitoring, while its IP20 protection rating must be noted for installed usage.

Features and Benefits:

•Optical function display with green for operational status and red for defect indication.

•Compliant with RoHS and environmental product compliance standards.

•Installation housing compatible with TS 35 mounting rail.

•IP20 protection rating in installed state.

•Suitable for low voltage power distribution and surge protection in electrical installations.

Specifications:
