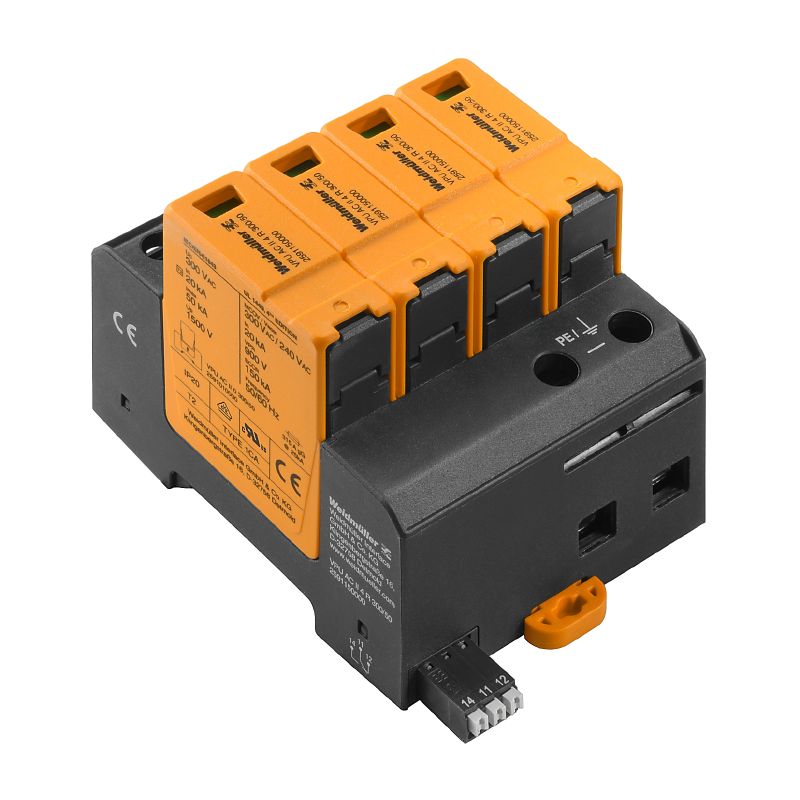

2591150000 - 240V Surge Arrester for Low Voltage Protection

SKU: SKU: 2591150000 Download PDF

Select a Variant:

2591150000 - 240V Surge Arrester for Low Voltage Protection

SET THE QTY:

Now $261.97 Web pricing policy

~~BEFORE $0.00~~ Now $261.97 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the VPU AC II 4 R 300/50, an advanced surge voltage arrester engineered for effective low voltage surge protection This unit is equipped with remote contact capabilities, making it an excellent choice for TN-C-S and TN-S electrical systems With a rated voltage of 240V, it provides robust surge protection across multiple modes Designed to function in a wide temperature range of -40 °C to +85 °C, this device adheres to RoHS standards, ensuring environmental compliance.

When installed, it boasts an IP20 protection rating, guaranteeing its reliability and resilience in various environments.

Features and Benefits:

•Surge protection with remote contact.

•Low voltage application.

•Compliant with RoHS standards.

•Environmental compliance with no SVHC above 0.1 wt%.

•Protection degree of IP20 in installed state.

•Visual function display for operational status.

Specifications:

Depth	68 mm
Height	104.5 mm
Width	72 mm
Rated Voltage U	240 V
Max. continuous voltage, Uc (AC)	300 V
Number of poles	4
Operating altitude	≤ 4000 m
Humidity	5 - 95% relative humidity
Approvals	Conform to UL (cURus) Certificate No. E354261
Voltage type	AC
Surge voltage category	III
Discharge current I max (8/20µs) wire-PE	50 kA
Response time / fallback time	≤ 25 ns
Connection type	PUSH IN
Rated data IEC / EN	Type II, Type III
Flammability rating	V-0
Electrical data	Solar and general low voltage applications
