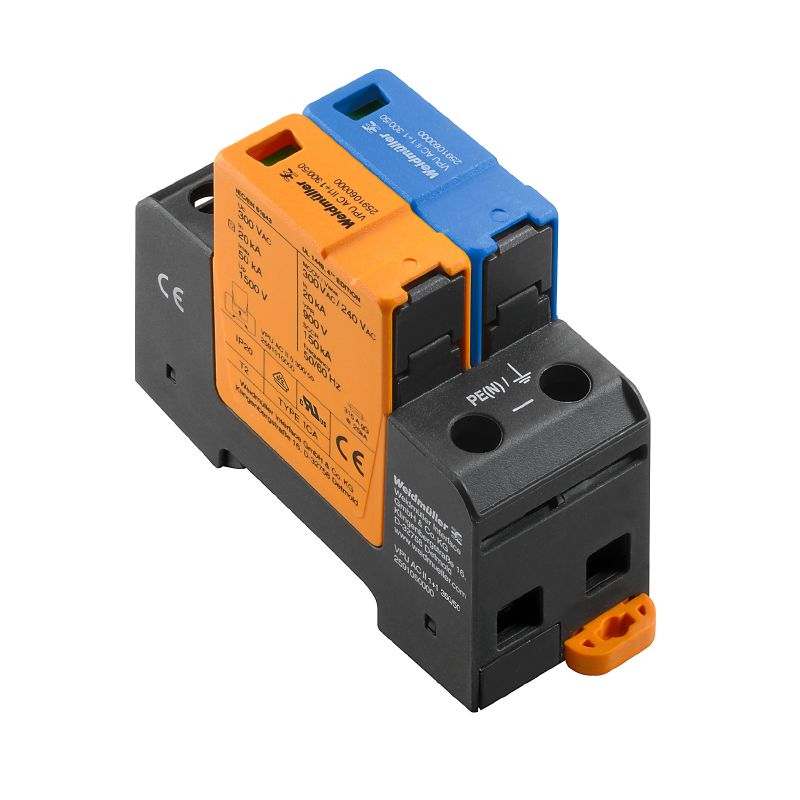

2591060000 - Surge Protection Device for Single-Phase Systems, IP20 Rated

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Enhance your electrical setup with the VPU AC II 1+1 300/50 surge voltage protector, specifically engineered for low-voltage applications This device is compatible with single-phase TN, TT, and IT systems, whether or not neutrals are involved It offers exceptional reliability and meets RoHS compliance standards With an impressive operational temperature range of -40°C to 85°C and effectiveness in humidity levels from 5% to 95%, this surge protector is built to perform in varied environments.

Featuring an IP20 protection degree when installed, it allows for easy mounting on TS 35 rails The optical function display provides a clear indication of the operational status at a glance Boasting a short-circuit current rating of 150 kA, this unit is equipped to handle diverse voltage types and loads, making it an ideal choice for versatile power distribution needs.

Features and Benefits:

•Voice over IP functionality.

•Compliant with RoHS without exemptions.

•Integrated back-up fuse not necessary.

•Easy visual status indication with green and red lights.

•Designed for quick installation on mounting rails.

•Low voltage surge protection in power distribution.

•Use in single-phase and IT power systems.

Specifications:
