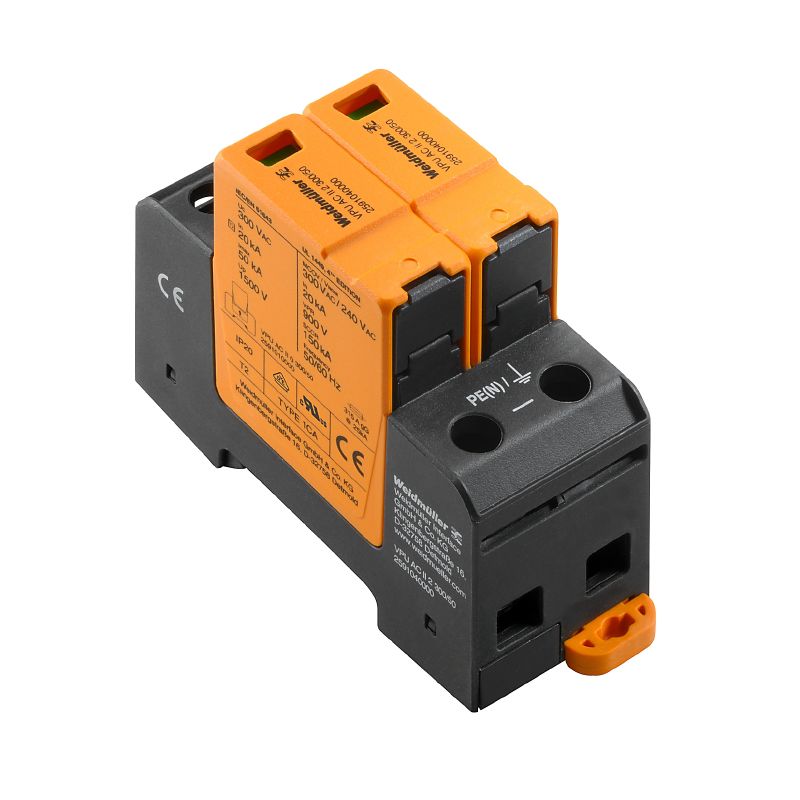

2591040000 - Compact Surge Protection Device, -40°C to 85°C, 300V Rated

SKU: SKU: 2591040000 Download PDF

Variant:

2591040000 - Compact Surge Protection Device, -40°C to 85°C, 300V Rated

Now $127.31

~~BEFORE $0.00~~ Now $127.31

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Protect your electrical systems with this advanced low-voltage surge protection device, crafted for single-phase TN-S applications Designed to handle surge voltage effectively, this unit complies with RoHS regulations and comes with a unique identification number along with various certifications It operates seamlessly in extreme temperatures, ranging from -40 °C to 85 °C, and can withstand humidity levels from 5% to 95%.

After rigorous testing against substantial surge currents, it boasts a maximum continuous voltage rating of 300 V Additionally, its compact installation housing is tailored to easily attach to a TS 35 mounting rail, making setup straightforward and efficient.

Features and Benefits:

•Compliant with RoHS without exemptions.

•Operating altitude of up to 4000 m.

•Optical function display with indicator lights.

•Protection degree of IP20 in installed state.

•Low flammability rating of V-0.

•Surge protection in power distribution systems.

Specifications:

Dimensions	{'Depth': '68 mm', 'Height': '90 mm', 'Width': '36 mm'}
Rated Voltage	240 V
Surge Voltage Category	III
Discharge Current I max	50 kA
Max Continuous Voltage	300 V
Response Time	≤ 25 ns
Number of Poles	2
Protection Level U p at I N (L/N-PE)	≤ 1.5 kV
Frequency Range	{'Min': '50 Hz', 'Max': '60 Hz'}
Wire Connection Method	Screw connection
Clamping Range	{'Min': '1.5 mm²', 'Max': '35 mm²'}
Environmental Product Compliance	{'RoHS Compliance Status': 'Compliant without exemption', 'REACH SVHC': 'No SVHC above 0.1 wt%'}
Standards	['IEC 61643-11', 'EN 61643-11', 'UL 1449']
