2591020000 - T2/T3 Surge Arrester, 300V, -40°C to 85°C Operating Range

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

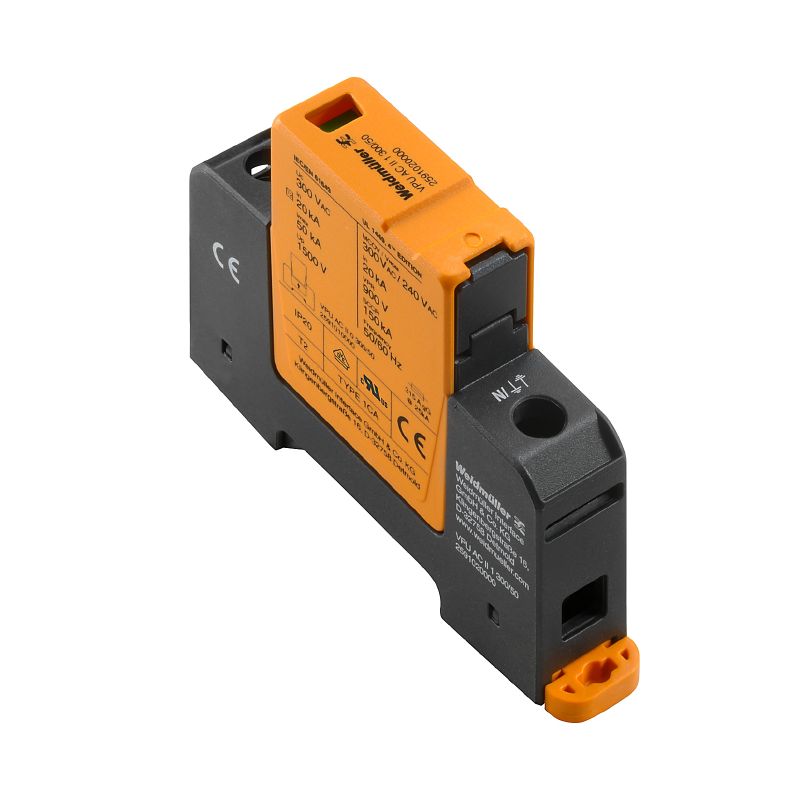

Introducing the VPU AC II 1 300/50, a premium single-phase surge voltage arrester crafted for effective low-voltage surge protection in power distribution systems This robust unit operates efficiently in a wide temperature range of -40 °C to 85 °C and is capable of managing humidity levels from 5% to 95% Upholding environmental standards, it complies with RoHS regulations and contains no SVHC above 0.

1 wt% Designed as a type T2 and T3 SPD, it offers a maximum continuous operating voltage of 300 V Additionally, the device includes visual indicators to display operational status, making it suitable for a variety of installation settings Protect your electrical systems with this reliable surge protector.

Features and Benefits:

•Installation housing suited for a 1TE design.

•Protection degree rated at IP20 when correctly installed.

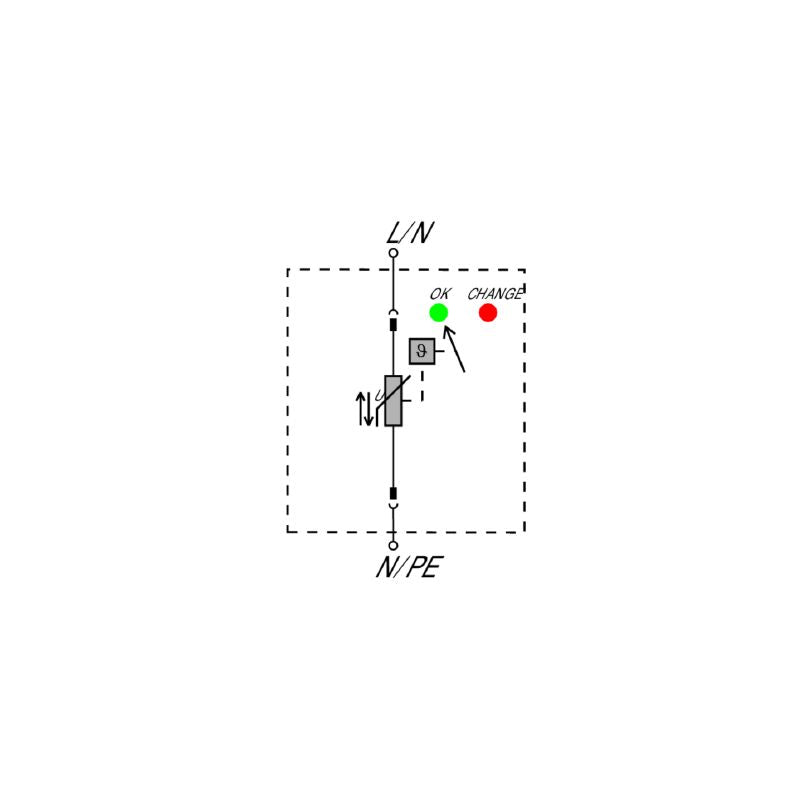

•Green optical function display indicates normal operation, while red indicates a defective state.

•No fuse necessary for standard ratings under specific conditions.

•Designed for single-phase TN low voltage surge protection and power distribution systems.
