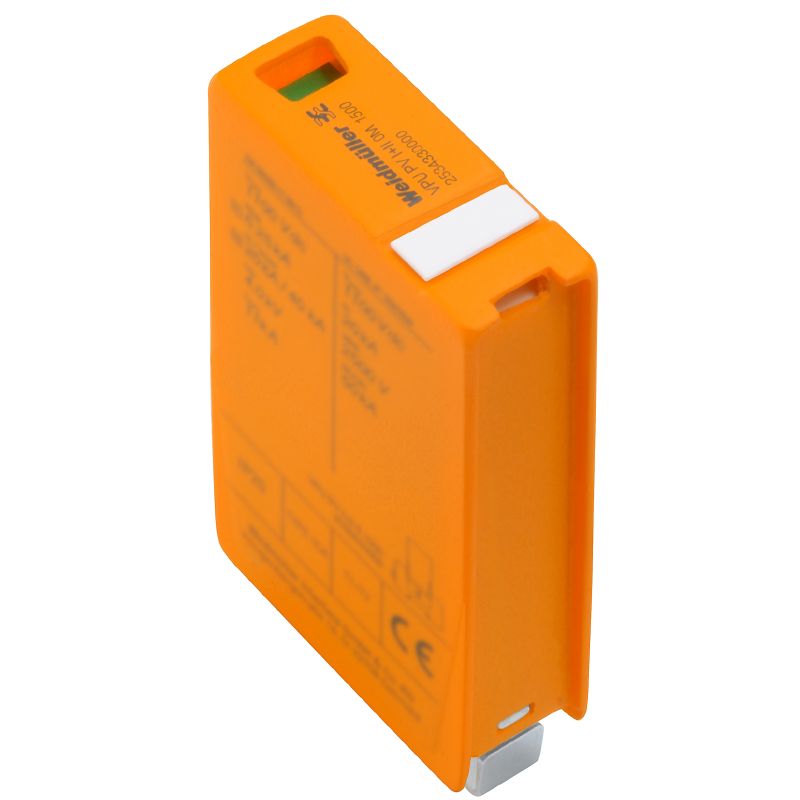

2534330000 - Durable Surge Voltage Arrester, 750V, 85°C, RoHS Compliant (Pack of 9)

SKU: SKU: 2534330000 Download PDF

Select a Variant:

2534330000 - Durable Surge Voltage Arrester, 750V, 85°C, RoHS Compliant (Pack of 9)

SET THE QTY:

Now $753.13 Web pricing policy

~~BEFORE $0.00~~ Now $753.13 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the VPU PV I+II 0M 1500, a robust surge voltage arrester designed for low voltage applications This reliable device includes a spare arrester and is compliant with RoHS standards, ensuring safety and environmental adherence Operating effectively at a maximum temperature of 85 °C, it supports a voltage rating of 750 V and boasts an impressive short-circuit current rating of 65 kA Engineered for durability, this arrester performs consistently across a range of environments.

Features and Benefits:

•Pluggable connection type.

•Protection degree of IP20.

•Integrated optical function display indicating status.

•Operating altitude under 4,000 m.

•Operating temperature range from -40 °C to 85 °C.

•Storage temperature allowable up to 85 °C.

•Humidity tolerance between 5% and 95% relative humidity.

•Used in photovoltaic systems.

Specifications:

Depth	73.5 mm
Height	45 mm
Width	18 mm
Net weight	67 g
Surge voltage category	III
Note	SPD TYPE 1CA
Rated data	{'Ambient temperature (operational), max.': '85 °C', 'Rated Voltage U_N': '750 V', 'SCCR': '65 kA', 'I_n': '20 kA', 'VPR (DC+/DC-)': '4,000 V'}
Lightning test current I_imp (10/350 µs)	5 kA
Response time / fallback time	≤ 25 ns
Number of poles	1
