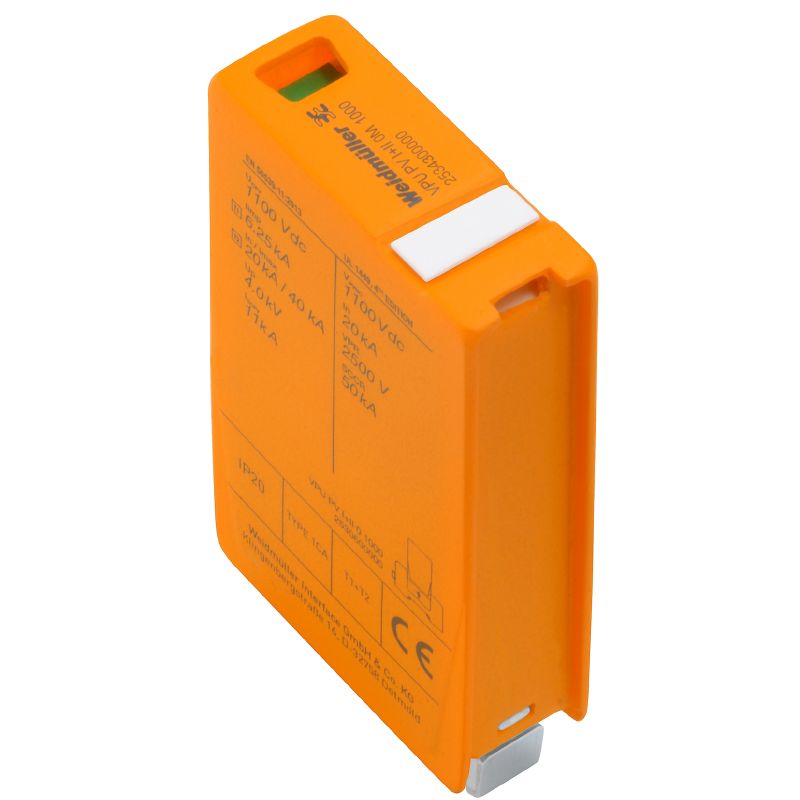

2534300000 - RoHS Compliant Surge Arrester for Low Voltage Protection (Pack of 9)

2534300000 - RoHS Compliant Surge Arrester for Low Voltage Protection (Pack of 9)

SKU: 2534300000 Download PDF

Variant:
  • 2534300000 - RoHS Compliant Surge Arrester for Low Voltage Protection (Pack of 9)
Now $598.88
BEFORE   $0.00 Now $598.88
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Ensure reliable surge protection with this voltage arrester, specifically engineered for low voltage environments Suitable for categories I and II, it also includes a spare arrester version for added convenience This product is compliant with RoHS standards and carries the UL Certificate number E3542610000, highlighting its safety and quality.

Features and Benefits:

    •Compliant with RoHS without exemptions.

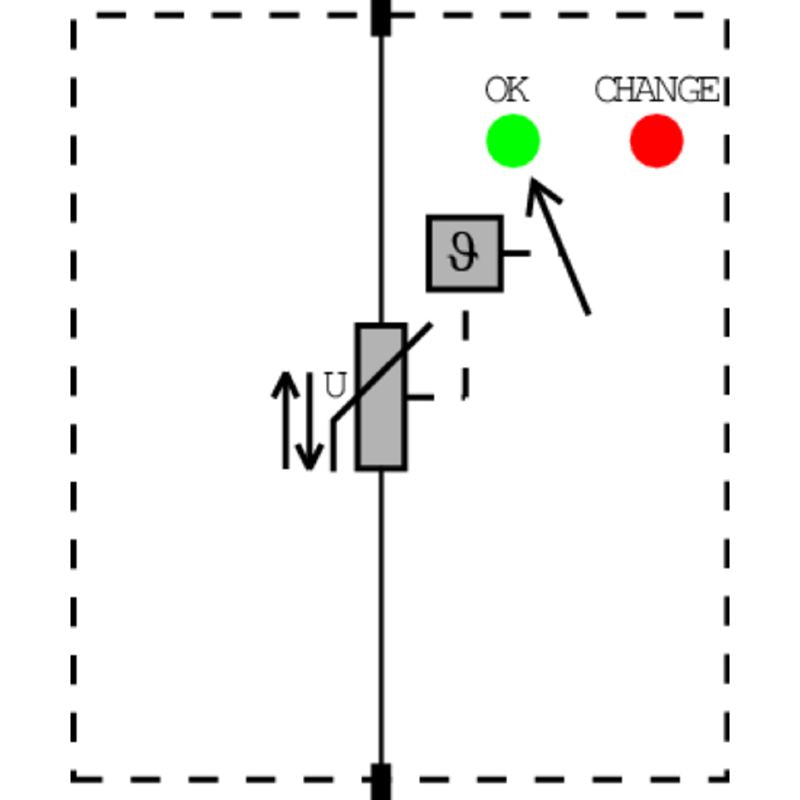

    •Green optical function display indicates OK status, while a red light signifies the need for replacement.

    •Installation housing design, suitable for installations.

    •Designed with IP20 protection degree.

    •Rated for a maximum operational temperature of 85 °C and a minimum of -40 °C.

Specifications:

 Depth 73.5 mm
 Height 45 mm
 Width 18 mm
 Net weight 65 g
 Storage temperature 85 °C
 Operating temperature -40 °C...85 °C
 Humidity 5 - 95% relative humidity
 Rated Voltage U 550 V
 SCCR 50 kA
 I_n 20 kA
 Ambient temperature (operational), max. 85 °C
 Ambient temperature (operational), min. -40 °C
 VPR (DC+/DC-) 2,500 V
 Voltage type DC
 Discharge current I_n (8/20 µs) 20 kA
 Lightning test current I_imp (10/350 µs) 6.25 kA
 Protection level U_p (+/-, -/PE, +/PE) ≤ 3.8 kV
 PV system voltage, max. U_cpv 1,100 V
 Short-circuit current I_SCPV 11,000 A
 Total discharge current I_total (8/20µs) 50 kA
 Total discharge current I_total (10/350µs) 12.5 kA
 Number of poles 1
 Response time / fallback time ≤ 25 ns
 Connection data pluggable
