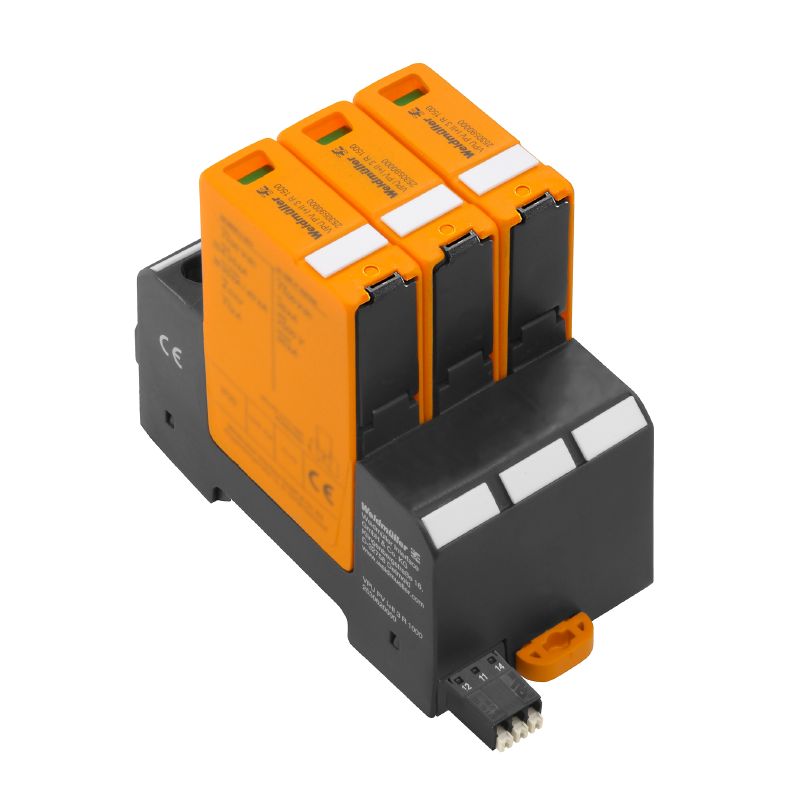

2530590000 - Low Voltage Surge Voltage Arrester, 86mm Depth, Remote Contact

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Protect your electrical systems with the Surge Voltage Arrester designed for low voltage applications, featuring a remote contact for added convenience This robust unit operates efficiently within a temperature range of -40 °C to 85 °C and adheres to RoHS standards, highlighted by its UL file number E3542610000 Compact in design, it measures 86 mm deep, 102 mm high, and 54 mm wide while weighing 480 g, making it versatile for a variety of environments.

With a humidity tolerance of 5% to 95%, this arrester is perfect for diverse conditions It's crafted for DC voltage applications, capable of handling a rated voltage of 1,500 V and a short-circuit current capacity of 65 kA The connection options—PUSH IN and screw—accommodate various wire sizes, ensuring easy installation for your needs.

Features and Benefits:

•RoHS compliant without exemptions.

•Optical function display showing green for OK and red for defective.

•Designed for installation housing with a category rating of SPD TYPE 1CA.

•Operating altitude of less than 4,000 m.

•Pollution severity rated as 2.

•Lightning test current capability of 5 kA.

•Response time/fallback time of ≤ 25 ns.

•Integrated back-up fuse is provided.

•Connection range for stranded wires from 1.5 mm² to 35 mm².
