1473440000 - 1000V Surge Protection Device, 17.8cm Wide, Level II SPD

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

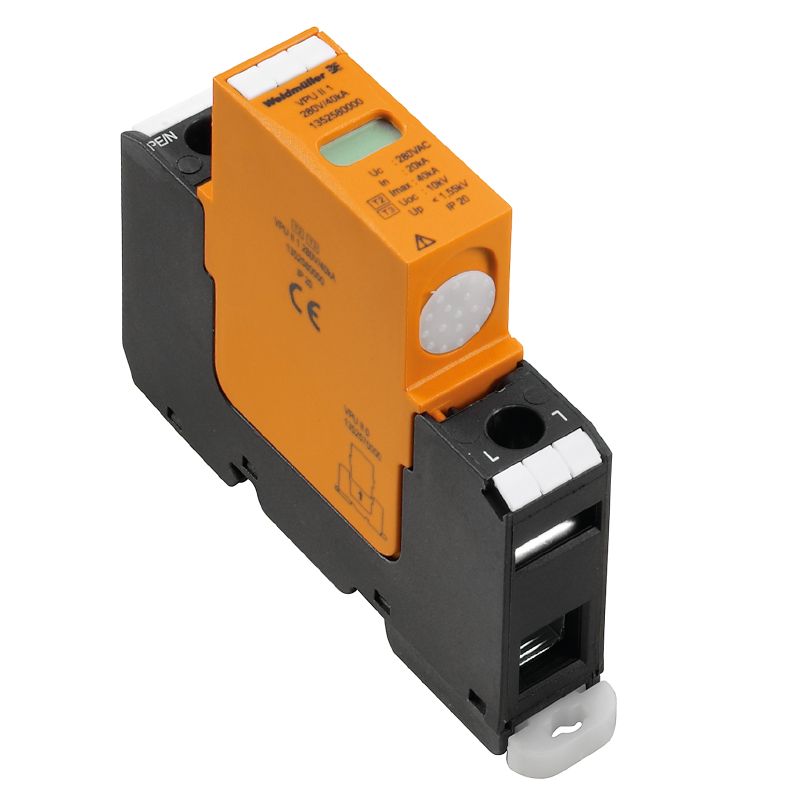

Introducing the VPU II 1 1000V/40KA AC surge voltage arrester, specifically engineered for single-phase TN systems This robust device operates without a telecommunications contact and adheres to stringent standards, including IEC 61643-11 and EN 61643-11 It provides high-performance surge protection, fulfilling level II SPD specifications thanks to its advanced varistor technology An essential feature is its optical indicator, which transitions from green to red if protection levels are compromised, ensuring you remain informed of its status.

Capable of managing a rated voltage of 1000V AC, it accommodates discharge currents up to 20 kA during regular use, with a maximum capacity of 40 kA The unit’s compact dimensions are 69 mm in depth, 94 mm in height, and 178 mm in width It is designed for a wide range of environmental conditions, operating effectively at temperatures from -40 °C to 70 °C and storing safely between -40 °C and 80 °C, all while withstanding humidity levels of 5% to 95%.

Features and Benefits:

•Compliant with RoHS and REACH.

•Includes thermal cut-off mechanism.

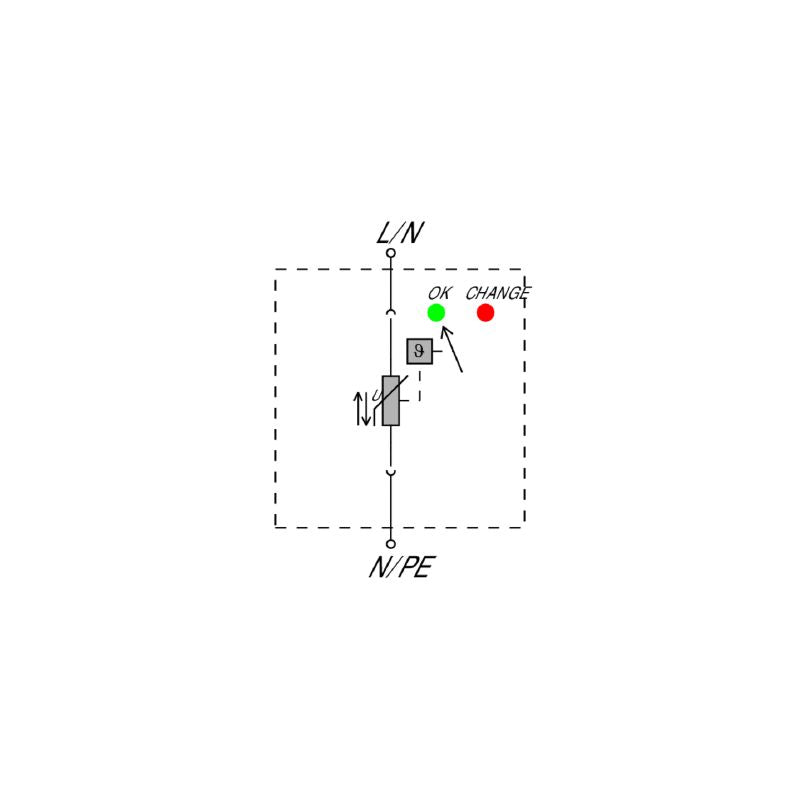

•Optical function display indicates operational status.

•Compact installation housing designed for mounting on standard rails.

•Used for protecting single-phase mains networks from voltage surges.
