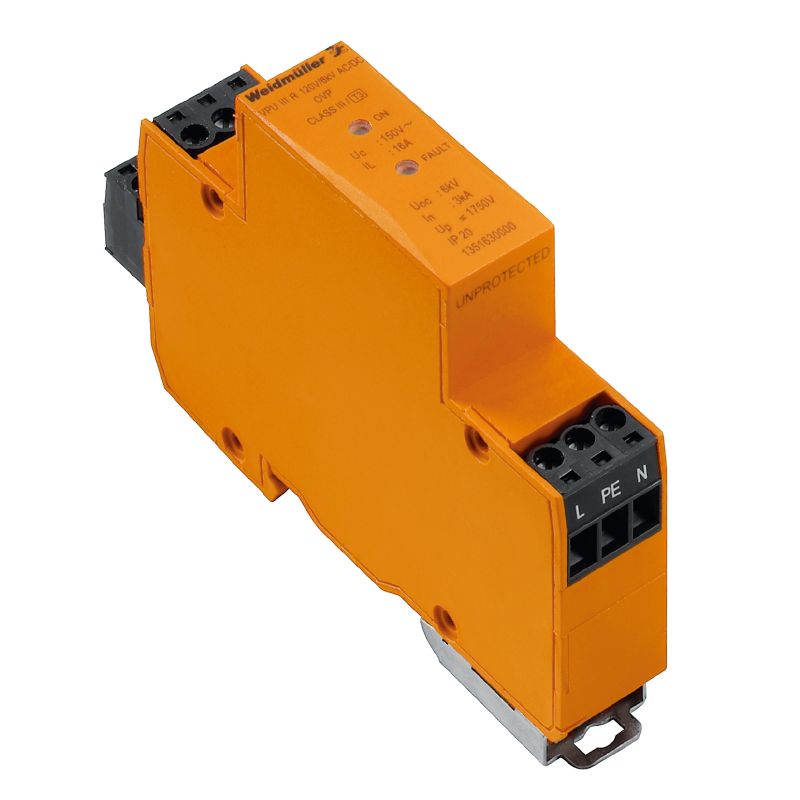

1351630000 - Surge Voltage Arrester for Single-Phase Use, 120V/6KV

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the VPU III R 120V/6KV AC/DC, a reliable surge voltage arrester tailored for low voltage applications This device is equipped with remote contact functionality and is optimized for single-phase operations It proudly meets ROHS standards, featuring various connection options suitable for solid core wires, complete with specified maximum torque settings and stripping lengths The integrated optical function display utilizes LED indicators for clear visibility.

With an environmentally compliant design, this arrester can operate efficiently within a temperature range of -40 °C to 70 °C, making it versatile for diverse settings.

Features and Benefits:

•Includes a remote alert.

•Optical function display with green and red LEDs.

•IP20 protection degree.

•Installation housing design.

•Compliant with IEC 61643-11 and EN 61643-11.

Specifications:
