1351600000 - VPU III R Surge Arrester for Low Voltage Systems

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

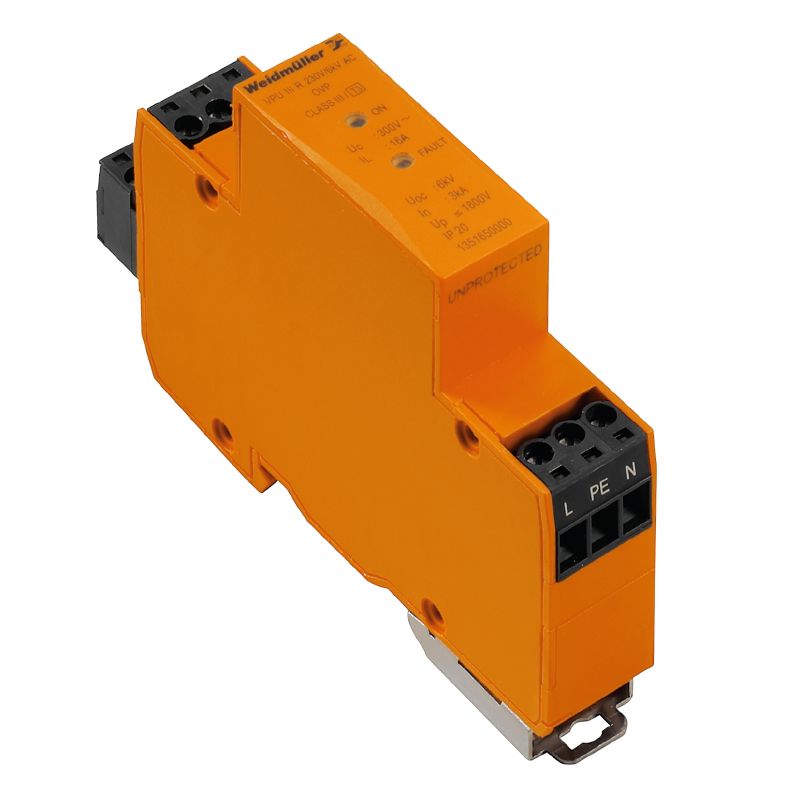

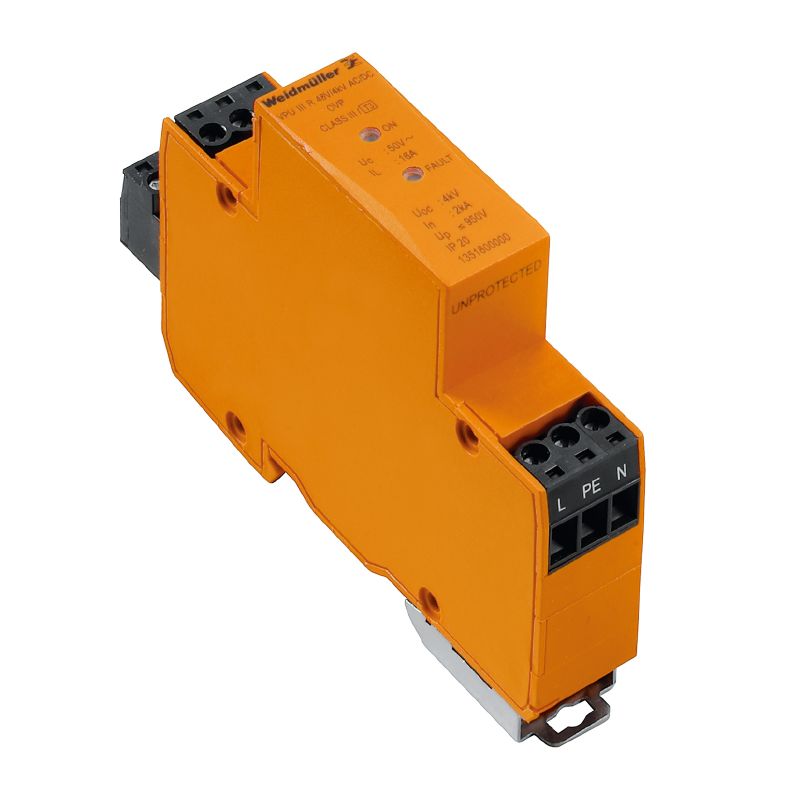

Introducing the VPU III R, a reliable surge voltage arrester tailored for low voltage applications, complete with remote contact capabilities This device is compatible with single-phase systems, adhering to RoHS standards It provides impressive surge voltage protection up to 4 kV, alongside a maximum continuous operating voltage of 50 V for AC and 72 V for DC Ideal for power distribution, the VPU III R is equipped to handle wire connections ranging from 0.

2 mm² to 25 mm², making it a solid choice for enhancing electrical safety.

Features and Benefits:

•Compliant with RoHS without any exemptions.

•Surge voltage category II.

•Protection degree IP20, suitable for installation housing.

•Integrated visual status indication with green LED and defective red LED.

•Signaling contact rated for up to 250 V and 10 A.

•Primarily used in power distribution systems for surge protection.
