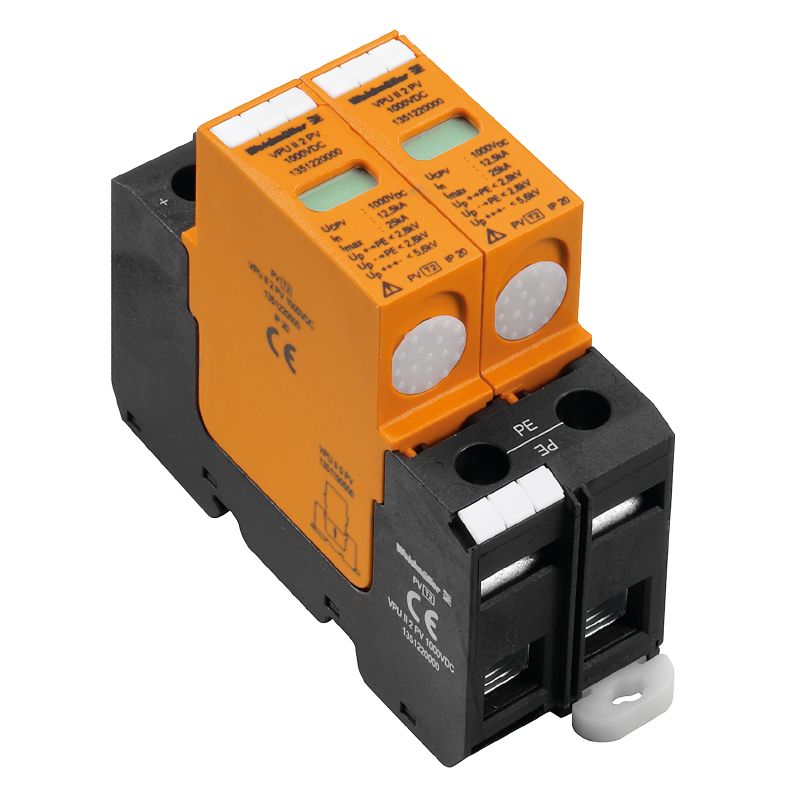

1351220000 - VPU II 1000V DC Surge Arrestor, IP20, 69mm x 35.6mm x 94mm

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the VPU II 2 PV 1000V DC, a reliable low voltage surge voltage arrestor designed for photovoltaic applications This device meets RoHS compliance, ensuring it is environmentally friendly and safe Measuring 69 mm in depth, 94 mm in height, and 356 mm in width, it has a compact design with a lightweight of just 282 grams Engineered to operate under challenging conditions, the arrestor functions within a temperature range of -40 °C to 70 °C during operation and -40 °C to 80 °C for storage.

An optical function display offers a clear indication of its operational status, transitioning from green to red to signal when replacement is necessary With an IP20 protection rating and compliance with UL 94 V-0 flammability standards, this arrestor is built to last It supports pollution severity level 2 and is categorized under surge voltage category III Designed for optimal safety, it can handle a maximum continuous operating voltage of 1000 V and boasts a discharge current capability of up to 12.

5 kA The device also achieves maximum protection levels of ≤ 56 kV for +/- connections and ≤ 28 kV for other configurations.

Features and Benefits:

•Compliant with RoHS regulations.

•Low voltage surge protection suitable for photovoltaic systems.

•Optical function display indicating operational status.

•Installation housing design.

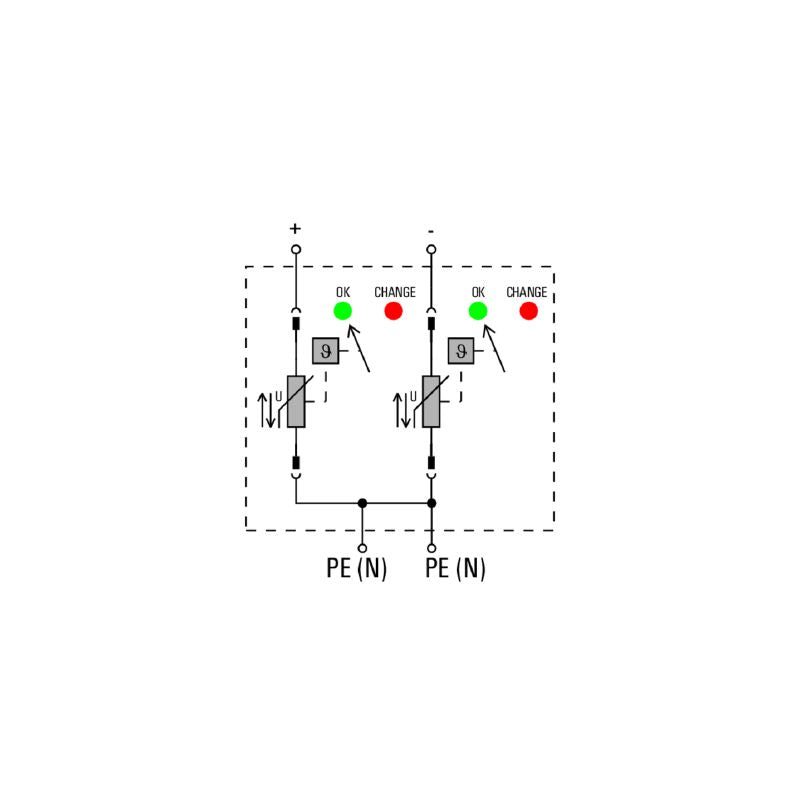

•Thermal separation device included.

•Class II surge protection with a maximum discharge current of 12.5 kA.

•Used in photovoltaic systems as a surge voltage arrestor.

Specifications:
