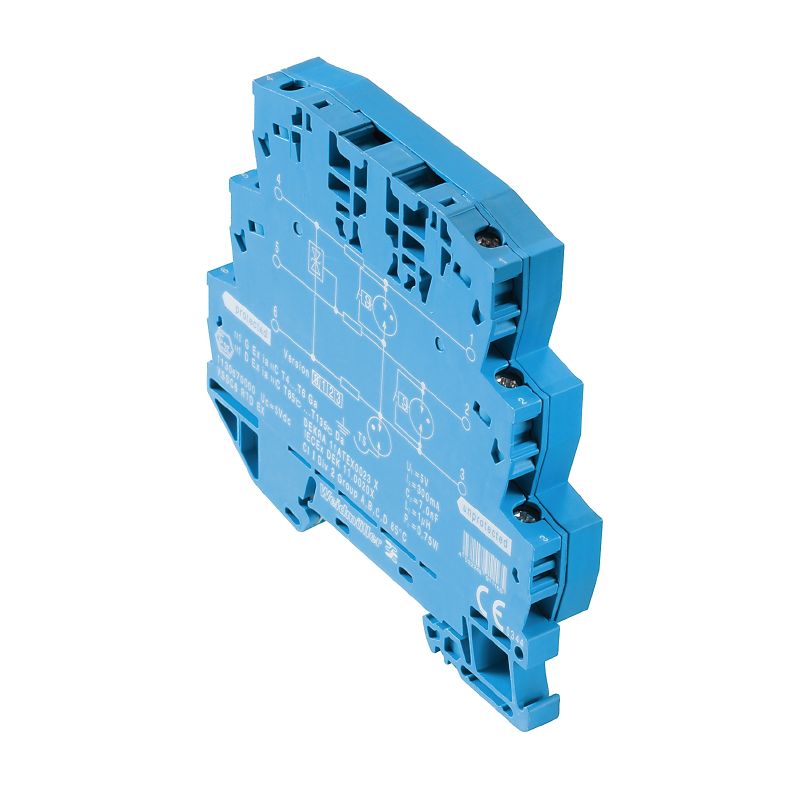

1130670000 - VSSC6 Surge Protection Device for Hazardous Locations

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the VSSC6 RTD EX, a reliable solution for surge protection tailored for instrumentation, measurement, and control systems This device can withstand a maximum surge voltage of 18 kV and meets RoHS compliance while adhering to stringent ATEX and IECEx standards, making it suitable for both gas and dust hazardous environments Its attractive light blue hue not only looks great but also allows for straightforward screw connections.

With an operating temperature range of -40 °C to +70 °C and humidity tolerance from 5% to 96%, this compact unit is built for versatility Designed for easy installation on a DIN rail, it’s the perfect choice for ensuring safety and performance in critical applications.

Features and Benefits:

•One piece, 6.2 mm wide DIN rail module.

•Optical identification based on protected switching type and voltage level.

•Can be labelled or marked.

•Surge protection for PT100 signal circuits.

•Instrumentation and control systems.

Specifications:
