1105700000 - Floating-Ground Power Base with Integrated Sparkover Gap

1105700000 - Floating-Ground Power Base with Integrated Sparkover Gap

SKU: 1105700000   Download PDF

Select a Variant:
  • 1105700000 - Floating-Ground Power Base with Integrated Sparkover Gap
Qty:
Now $39.53   Web pricing policy
BEFORE   $0.00 Now $39.53 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

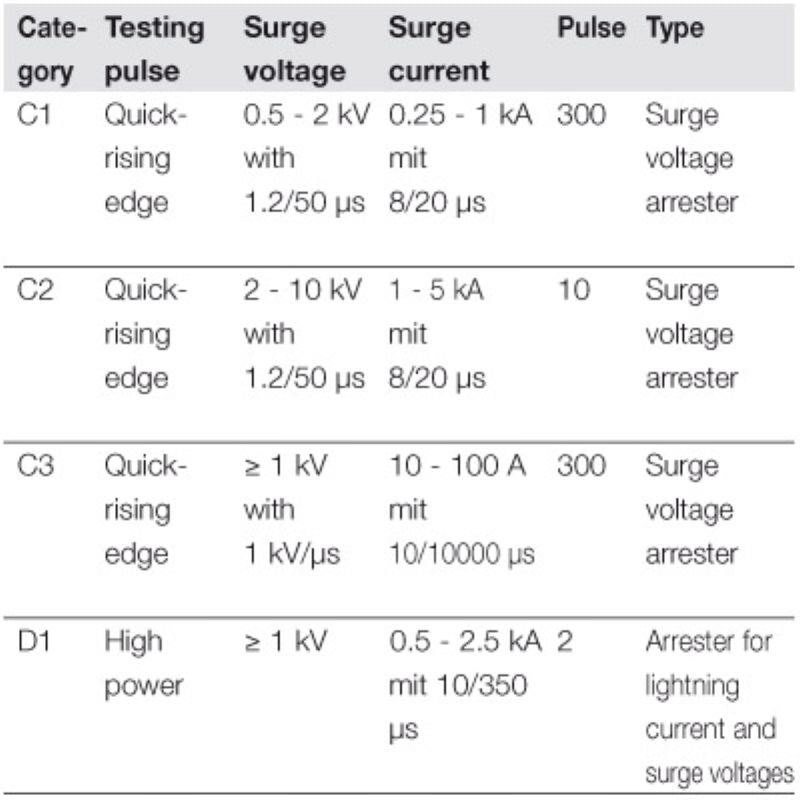

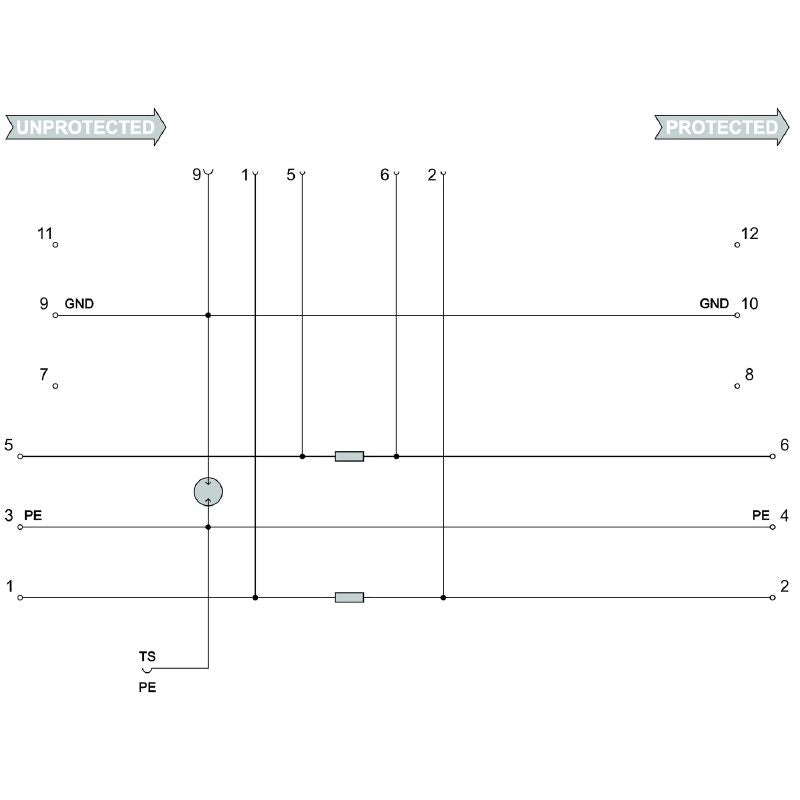

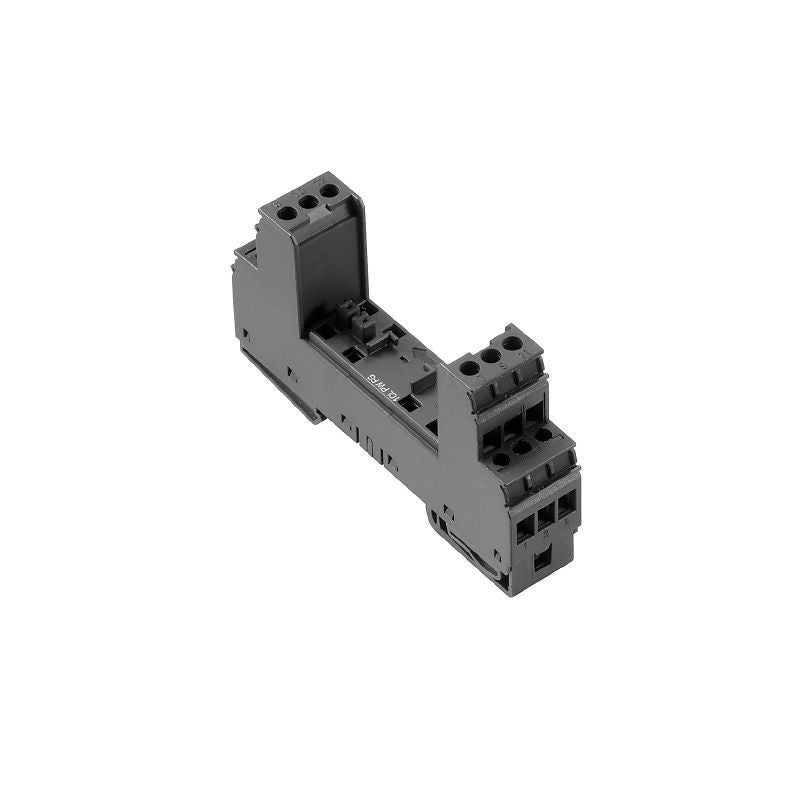

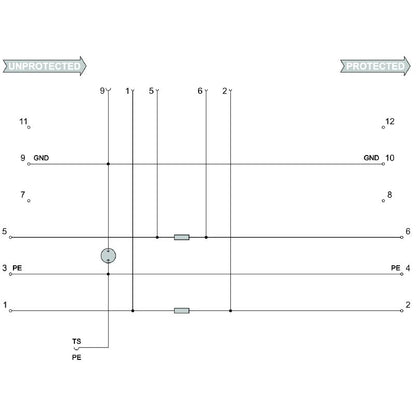

This base unit functions as a connection point for floating-ground powered cable pairs alongside 24V power supplies Once installed, it establishes a contact that links the mounting rail to the integrated sparkover gap, creating a high impedance connection between the ground of the protective switch within the protective plug and the earth potential The base element features mechanical coding compatible with the specific type of protected plug according to its switching type and rated voltage.

The initial insertion of a protected plug easily identifies the base unit, and it also offers visual identification based on the type of protected switching and voltage Additionally, all terminals have the option for marking as required.

Features and Benefits:

    •Flange-mounted housing.

    •Surge protection.

    •Compliant with RoHS without exemption.

    •Protection degree of IP20.

    •Designed for AC/DC voltage type.

    •Terminal design for secure connections.

    •No optical function display.

    •Measurement - Monitoring - Setting.

Specifications:

 Depth 69 mm
 Height 90 mm
 Width 17.8 mm
 Storage temperature -40 °C...80 °C
 Operating temperature -40 °C...70 °C
 Humidity 5...96 %
 Input-current, max. I 450 mA for Signal and 26 A for Power
 Internal inductance, max. L 0 µH
 Rated current I 16 A
 Dielectric strength at FG against PE ≥ 500 V
 Stripping length 7 mm
 Clamping range, min. 0.5 mm²
 Clamping range, max. 4 mm²
 Wire cross-section, solid, min. 0.5 mm²
 Wire cross-section, solid, max. 4 mm²
 Wire connection cross section, finely stranded, max. 2.5 mm²
 Conductor cross-section, flexible, AEH (DIN 46228-1), min. 0.5 mm²
 Conductor cross-section, flexible, AEH (DIN 46228-1), max. 2.5 mm²
 Connection cross-section, stranded, min. 0.5 mm²
 Connection cross-section, stranded, max. 2.5 mm²
 Blade size 0.6 x 3.5 mm
 Protection degree IP20
 UL certificate E311081
 GOST certificate GOST-Zertifikat
