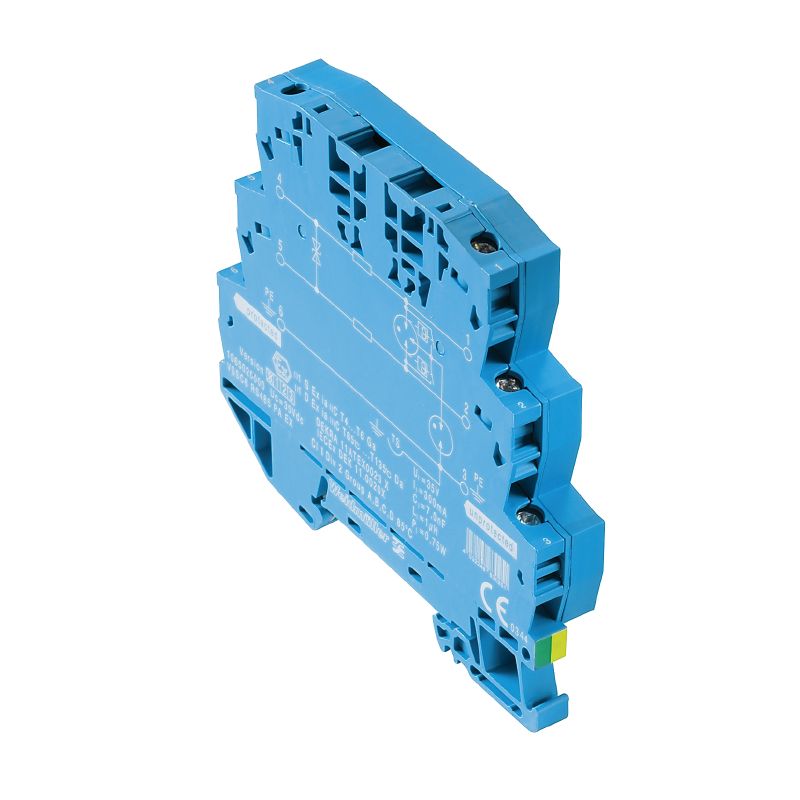

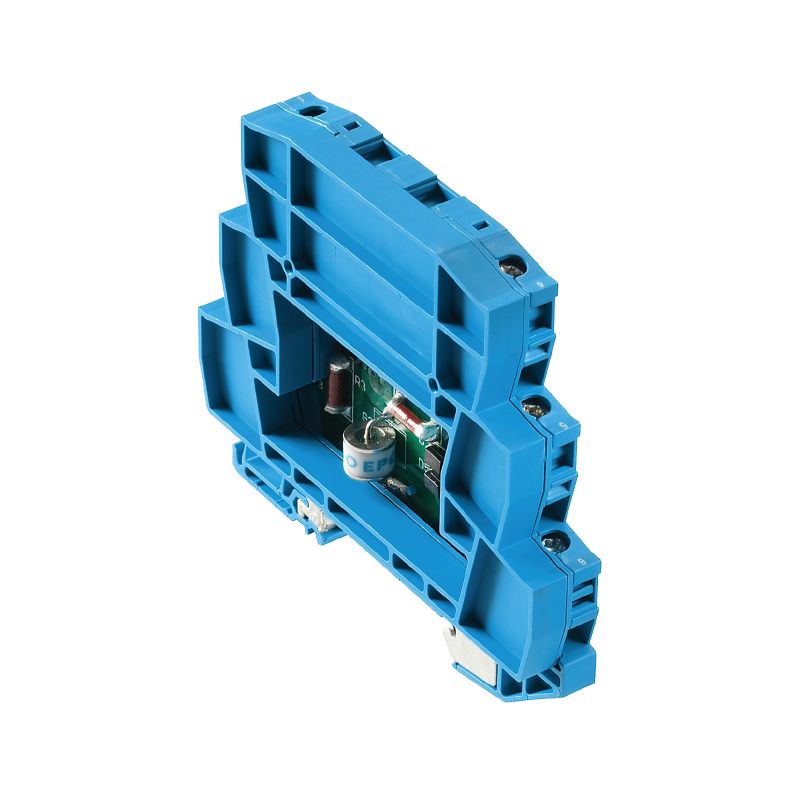

1065020000 - 2 kV Surge Protector for RS422/RS485 Circuits

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a specialized surge protector tailored for measurement and control systems, capable of withstanding surge voltages up to 2 kV This device meets RoHS standards, ensuring safe use in various environments It offers strong protection for RS 422 / RS 485 signal circuits, making it a reliable choice for your applications With an operational temperature range of -40 °C to 70 °C, this surge protector is built to perform under extreme conditions.

Additionally, it supports a maximum input voltage of 35 V and complies with several international safety standards and environmental regulations, guaranteeing reliability and safety.

Features and Benefits:

•Compliant with IEC 61508 for safety integrity level (SIL) 3.

•Max input power rating of 0.75 W.

•Designed for RS 422 / RS 485 Profibus applications.

•Labelable for easy identification in installations.

•Compact DIN rail module design, only 6.2 mm wide.

•Surge protection for instrumentation and control.

•Surge protection for measurement and control.

Specifications:
