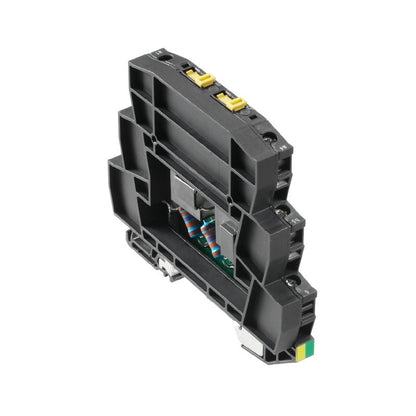

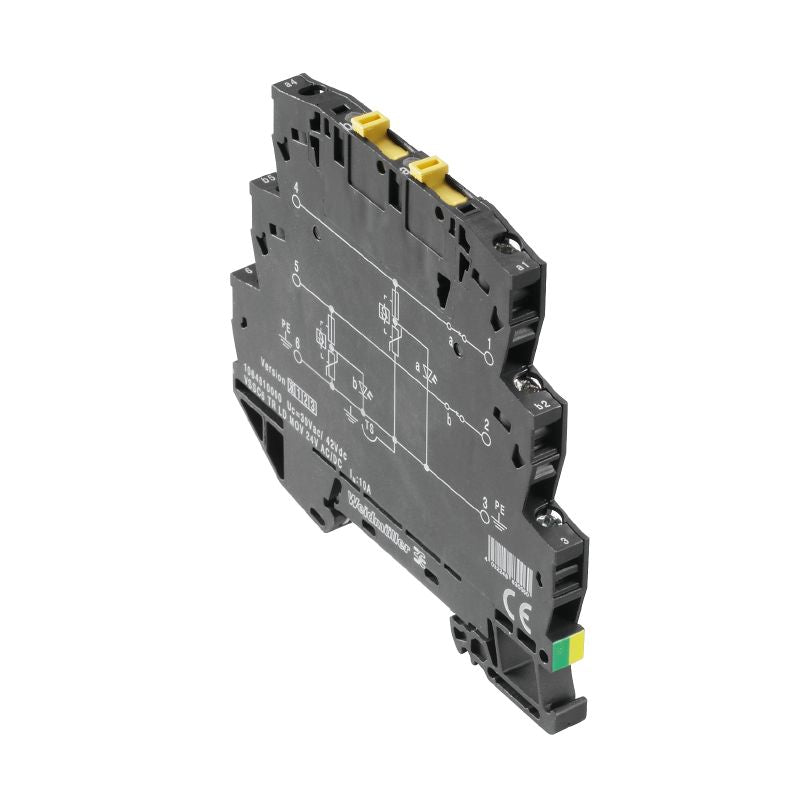

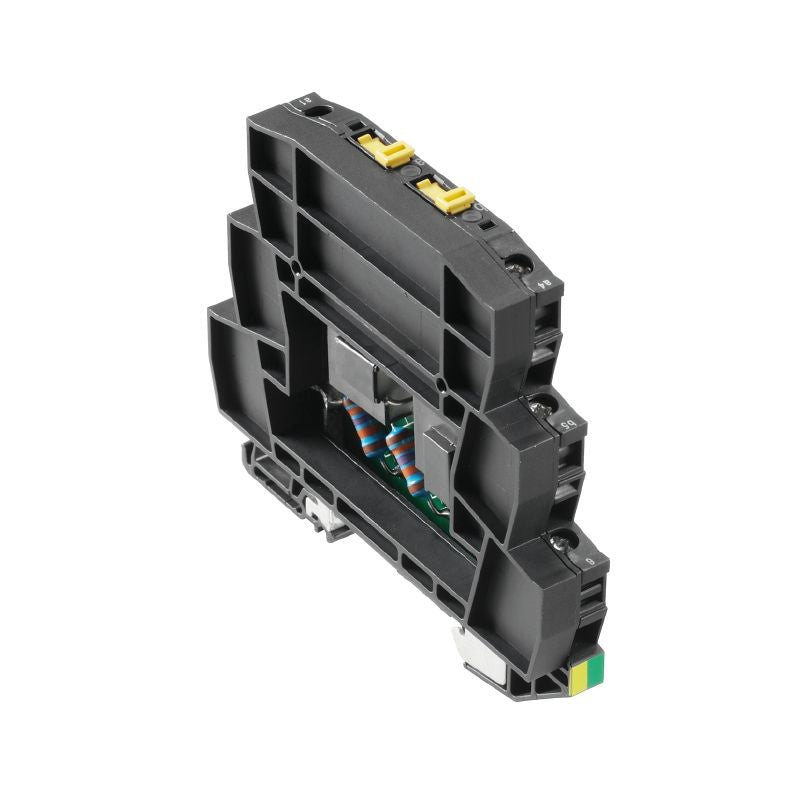

1064800000 - Surge Protection Device for Control Systems, 100V Max (Pack of 8)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the VSSC6 TRLDMOV 12VDC, a specialized device for safeguarding instrumentation and control systems against surges This essential equipment provides robust protection for measurement and control configurations, supporting up to 100 V between L/N and PE Furthermore, it meets RoHS compliance and bears the UL certification number E311081, ensuring quality and safety standards in your setup.

Features and Benefits:

•Temperature range: -40 °C to 80 °C for storage and -40 °C to 70 °C for operation.

•Has a protection degree of IP20.

•Internal capacity of 24 nF.

•Screw connection type with a stripping length of 10 mm.

•Optical function display present.

•Includes a functional screw with test plug receptacle.

•Designed for a maximum current of 12 A.

•Rated voltage of 12 V DC.

•Measurement - Monitoring - Setting.

Specifications:
