1064490000 - 12V DC Surge Protection Module with LED Indicator (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

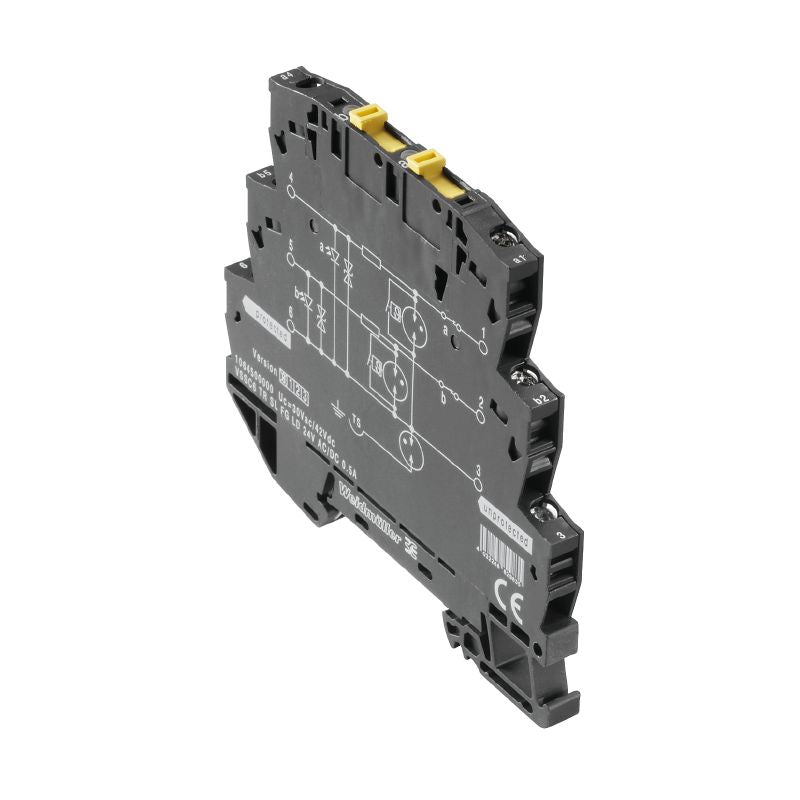

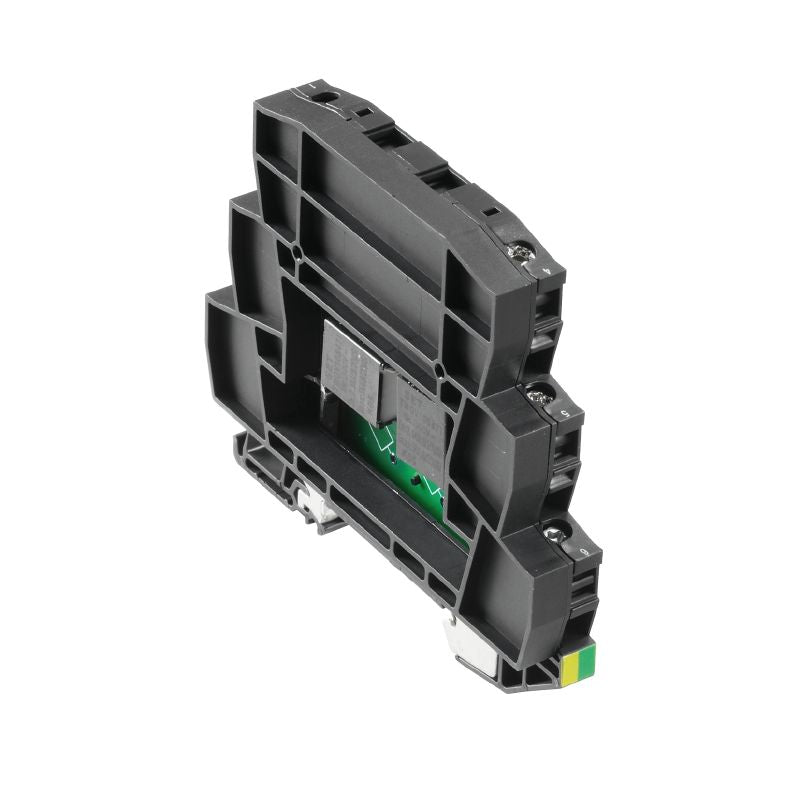

Introducing a reliable surge protection solution tailored for control and measurement systems This device efficiently operates at a maximum input voltage of 15 V and supports an input current of 500 mA It is specifically designed to maintain optimal performance in signal circuits with a rated voltage of 12 V DC Certified for compliance with RoHS and UL standards, this surge protection module has dimensions of 81 mm deep, 88.

5 mm tall, and 62 mm wide, weighing just 444 grams It’s built to endure storage temperatures ranging from -40 °C to 80 °C and functions seamlessly in conditions between -40 °C and 70 °C With a humidity tolerance of 5% to 96%, it is well-suited for diverse environments Each unit is equipped with a green LED indicator that signals operational status For easy installation, it can be mounted on a TS 35 rail and meets a variety of surge voltage category requirements, making it a versatile choice for your protection needs.

Features and Benefits:

•Surge protection for measurement and control systems.

•Visual signal indication with a green LED.

•Capable of protecting up to two binary, potential-free signal circuits.

•Fits a standard TS 35 mounting rail.

•Suitable for instrumentation and monitoring systems.

Specifications:
