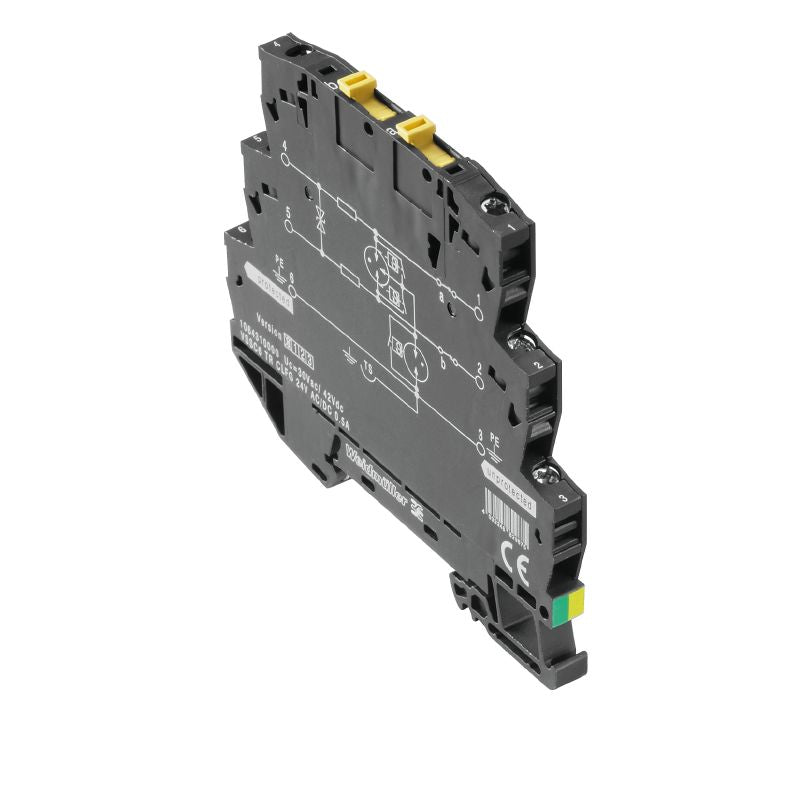

1064320000 - Compact 6.2mm Surge Protection Module for 48V Signals (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a versatile surge protection unit, expertly crafted for measurement and control applications in floating-ground signal circuits This unit supports voltages of up to 48 V and is designed as a compact, single-piece module, measuring just 62 mm in width, perfect for DIN rail installation It offers the capability to isolate each circuit for enhanced flexibility, safeguarding a current loop with a maximum rating of 0.

5 A When set up, it creates a spark gap to connect the high-impedance earth between the rail and the protective switch's reference ground, ensuring optimal safety Additionally, each terminal is easily identifiable by voltage and switching type, and can be conveniently labeled for user-friendly operation.

Features and Benefits:

•Compact design for easy installation.

•Isolator functionality for each signal path.

•Visual identification for user convenience.

•Suitable for floating-ground driven signal circuits.

•Measurement and control systems.

Specifications:
