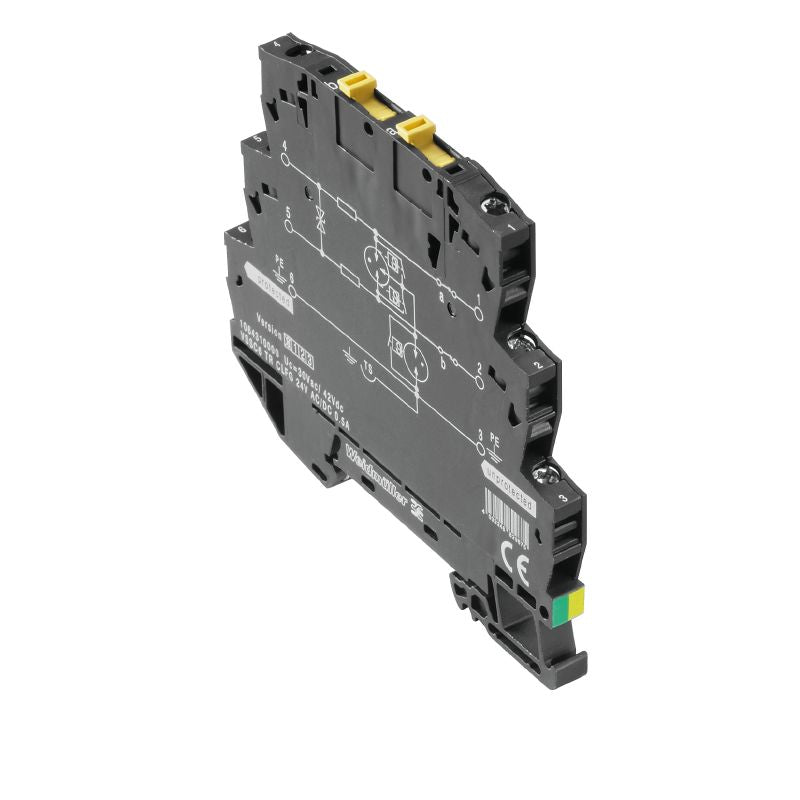

1064310000 - DIN Rail Surge Protection Module, 24V, 0.5 A, Isolated (Pack of 10)

1064310000 - DIN Rail Surge Protection Module, 24V, 0.5 A, Isolated (Pack of 10)

SKU: SKU: 1064310000   Download PDF

Select a Variant:
  • 1064310000 - DIN Rail Surge Protection Module, 24V, 0.5 A, Isolated (Pack of 10)
Qty:
Regular price Now $834.77   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $834.77 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

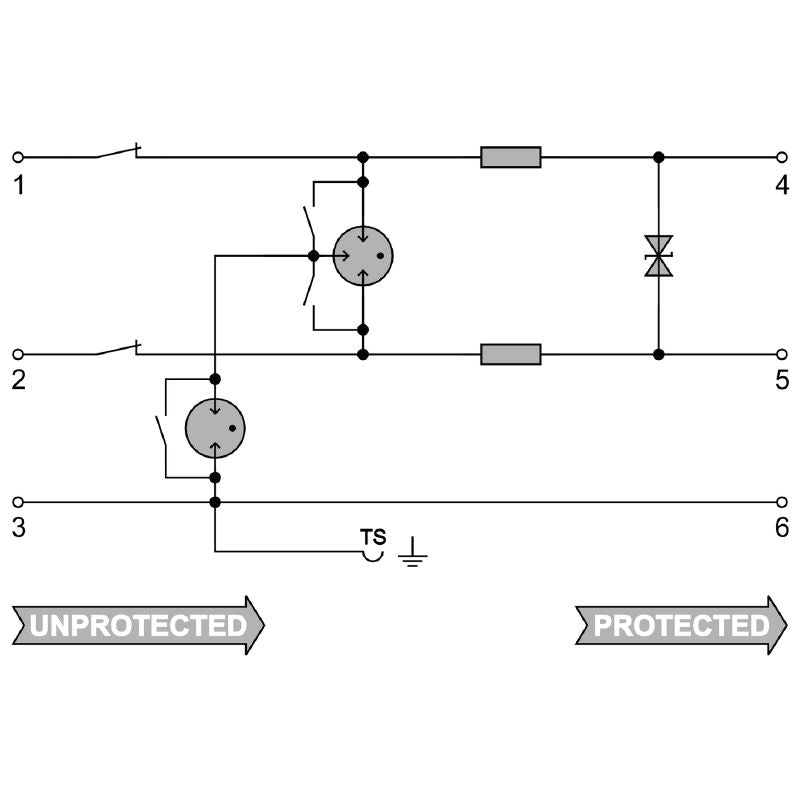

Introducing a robust surge protection module tailored for DIN rail installation, specifically crafted for signal circuits featuring a floating ground Operating at 24V UC and utilizing 2-wire technology, this device safeguards circuits with a maximum current of 05 A Each signal path benefits from an integrated isolator for added safety When installed, it guarantees a protective spark gap between the mounting rail and the reference ground.

Designed for measurement and monitoring purposes, the module also supports optical identification according to protection type and voltage level, featuring options for easy labeling.

Features and Benefits:

    •Compact design at 6.2mm width for DIN rail mounting.

    •Supports floating-ground driven signal circuits.

    •Optical identification possible for the terminal.

    •Each signal path features an isolator for safety.

    •Measurement and control.

    •Instrumentation and control.

    •Signal monitoring.

Specifications:

 Depth 81mm
 Height 88.5mm
 Width 6.2mm
 Rated current I_N 500mA
 Max. continuous voltage, Uc (AC) 30V
 Max. continuous voltage, Uc (DC) 42V
 Protection degree IP20
 Number of poles 1
 SIL compliance 3
 Discharge current I_max (8/20µs) wire-PE 5kA
 Discharge current I_n (8/20µs) wire-PE 2.5kA
 Surge voltage category III
 Storage temperature -40°C...80°C
 Operating temperature -40°C...70°C
