1064250000 - Compact Surge Protection Module for Control Systems, 6.2mm Wide (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

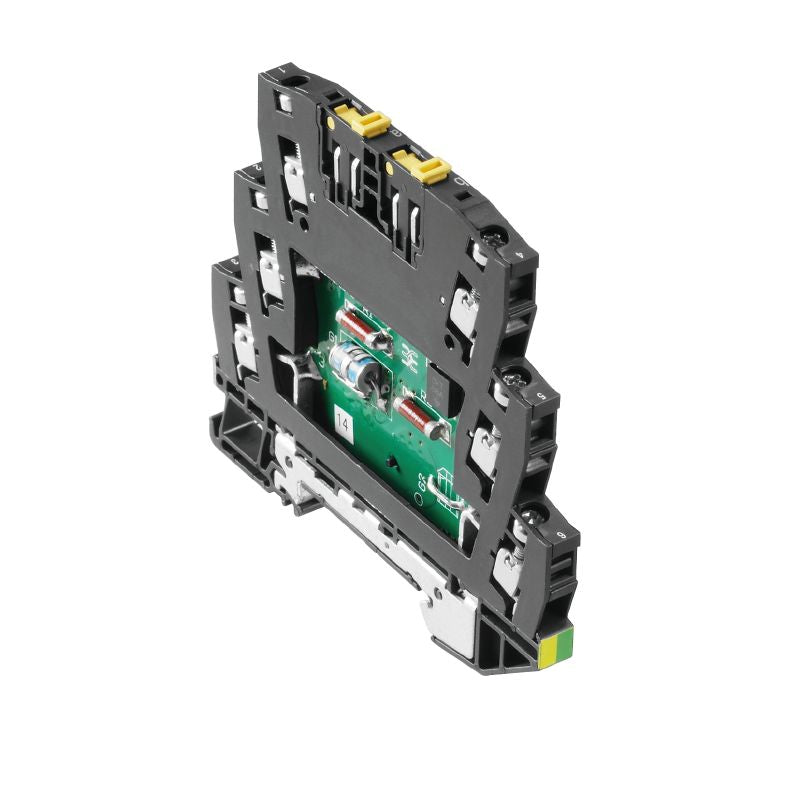

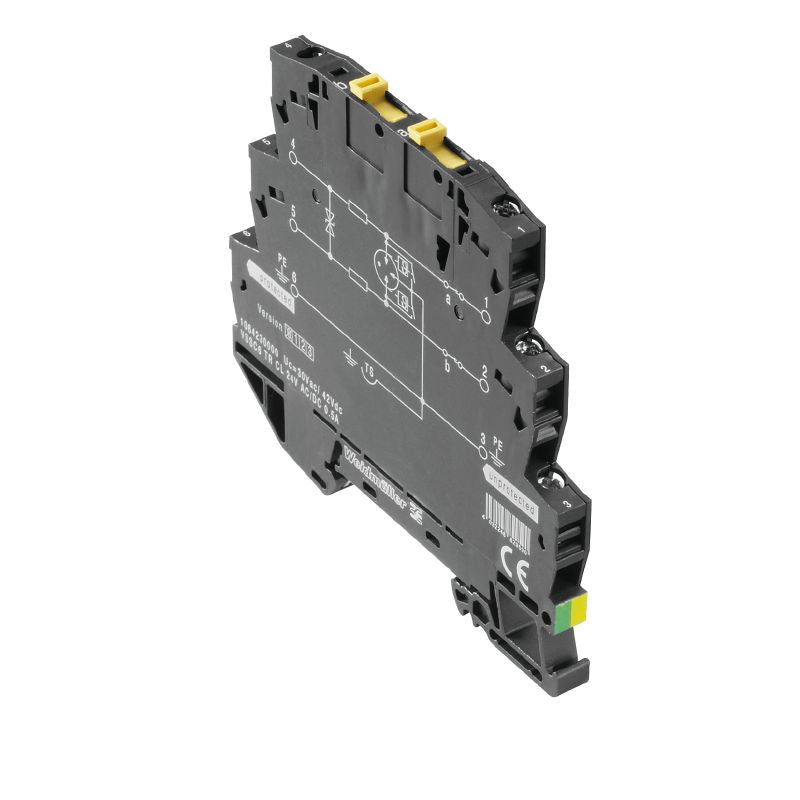

Introducing a reliable surge protection device crafted for measurement and control systems This compact module, only 62 mm in width, is specifically designed to protect floating-ground signals with a maximum voltage of 60 V It features an isolator that enables the opening of each signal path and is capable of managing current loops up to 06 A Upon installation, it establishes an electrical connection between the mounting rail and the ground reference of the protection circuit.

Additionally, the terminal allows for easy optical identification based on the type of protected switching and voltage levels, and can be conveniently labeled for clarity.

Features and Benefits:

•Screw connection type for effective terminal connection.

•Isolation function enhances safety by enabling individual signal path management.

•Compact design allowing easy integration into existing systems.

•IP20 protection degree for safe operational use.

Specifications:
