1063730000 - Compact Surge Protector for Signal Circuits, 6.2mm Wide (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

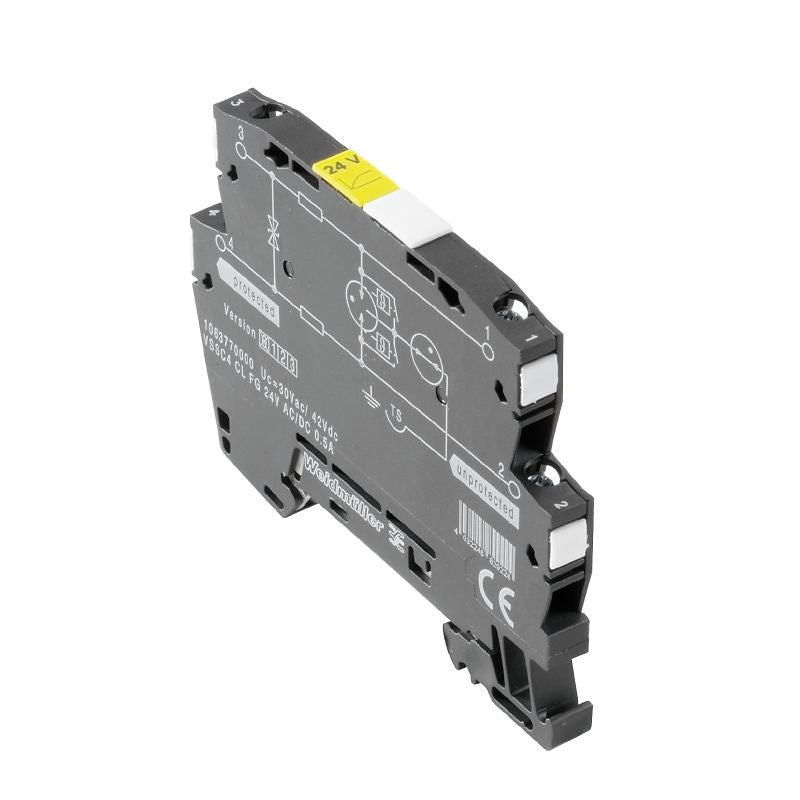

Introducing the VSSC4 CL 24VAC/DC 05A surge protector, expertly crafted for measurement and control applications This compact device, measuring just 62 mm in width, installs easily on DIN rails and is compliant with RoHS guidelines, as confirmed by certificate number E311081 It provides reliable surge protection for signal circuits that utilize 2-wire technology, with a maximum input voltage of 42V.

The unit can handle an input current of up to 500 mA, functioning optimally in temperatures ranging from -40 °C to 70 °C Finished in a sleek black design, it comes equipped with a screw connection terminal, ensuring dependable protection across various environments while maintaining high reliability and performance.

Features and Benefits:

•Compact design for easy installation in DIN rail applications.

•Surge protection for instrumentation and control.

•Operating temperature between -40 °C to 70 °C.

•Visible optical function display not included.

•IP20 protection degree.

•Protection level UP < 1000 V.

•Measurement and control.

•Surge protection for signal circuits.

Specifications:
