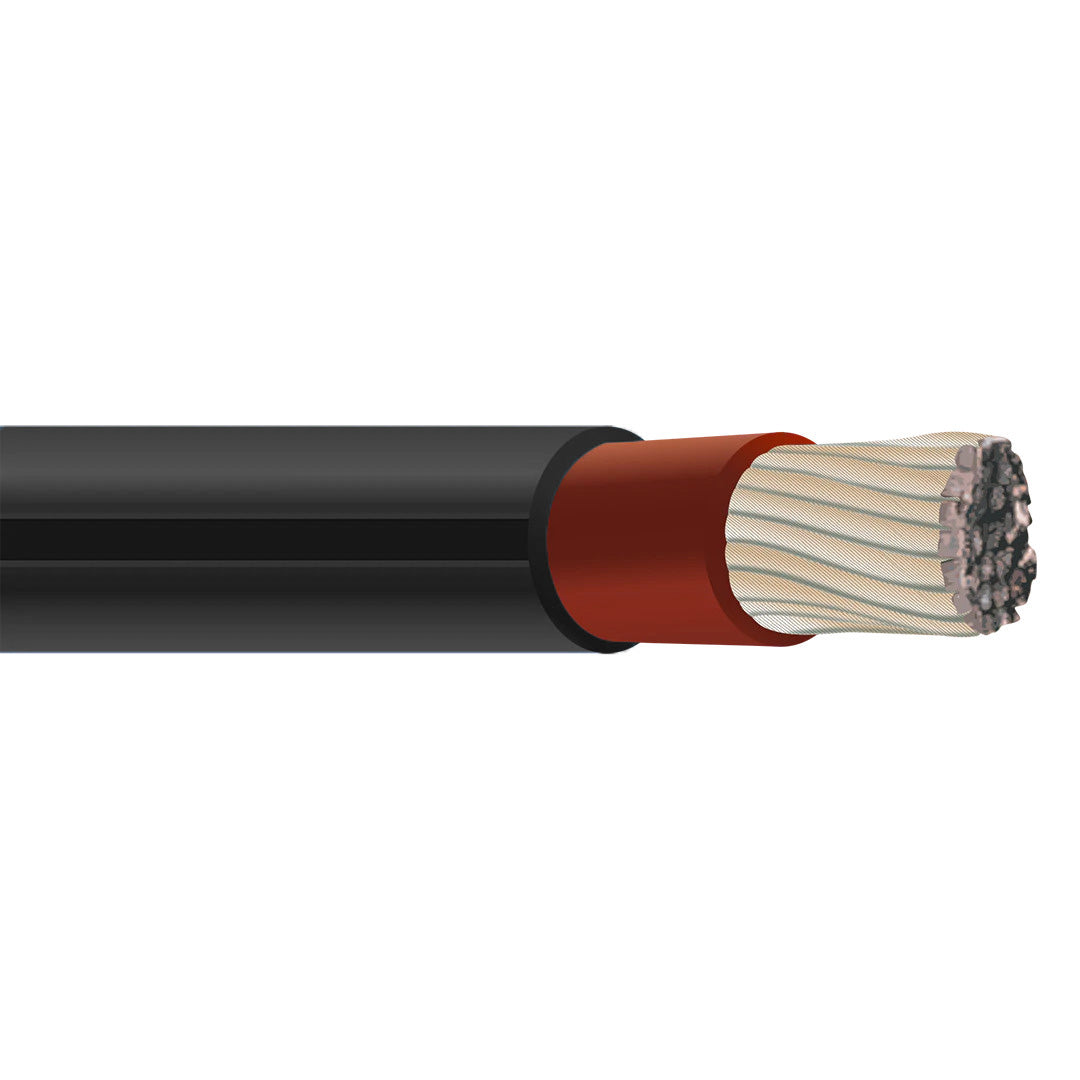

TelcoFlex III Central Office Cable

TelcoFlex III Central Office Cable

Conductors:
• Class B stranded tinned copper conductor

Insulation:
• The Cable has low-smoke, lead-free and silicone-free non-halogenated insulation.

Tempeature Rating:
• 90°C Dry and 60°C Wet

Voltage Rating:
• 600V

Standards:
• UL Listed RHH/LS
• FT-4 Flame Test
• VW-1
• ASTM B-33
• Physical and Electrical tests in accordance with UL Standard 44 Requirements.
• CSA AWM I B 105ºC

Applications:
• UL Listed RHH/LS FT4 and VW-1, 90ºC dry, 60ºC wet, 600 volts. Sizes 1/0 and larger are UL, CT USE rated. CSA AWM I B 105ºC, 600 volts.

Size
AWG
Conductor
Strand
Insulation Thickness
(inches)
Outside Diameter
(inches)
Max. D.C. Res. @ 20ºC Approx. Weight
(lbs per ft)
Action
14 7/.0242 0.045 0.225 2.730 0.031 Add to Cart
12 7/.0305 0.045 0.247 1.720 0.041 Add to Cart
10 7/.0385 0.045 0.272 1.080 0.059 Add to Cart
8 7/.0486 0.060 0.327 0.678 0.092 Add to Cart
6 7/.0612 0.060 0.370 0.427 0.13 Add to Cart
4 7/.0772 0.060 0.414 0.269 0.19 Add to Cart
2 7/.0974 0.060 0.482 0.169 0.282 Add to Cart
1/0 19/.0745 0.080 0.606 0.106 0.443 Add to Cart
2/0 19/.0837 0.080 0.651 0.084 0.538 Add to Cart
4/0 19/.1055 0.080 0.756 0.052 0.812 Add to Cart
350 MCM 37/.0973 0.095 0.930 0.032 1.313 Add to Cart
500 MCM 37/.1162 0.095 1.066 0.022 1.822 Add to Cart
750 MCM 61/.1109 0.110 1.267 0.0148 2.692 Add to Cart
