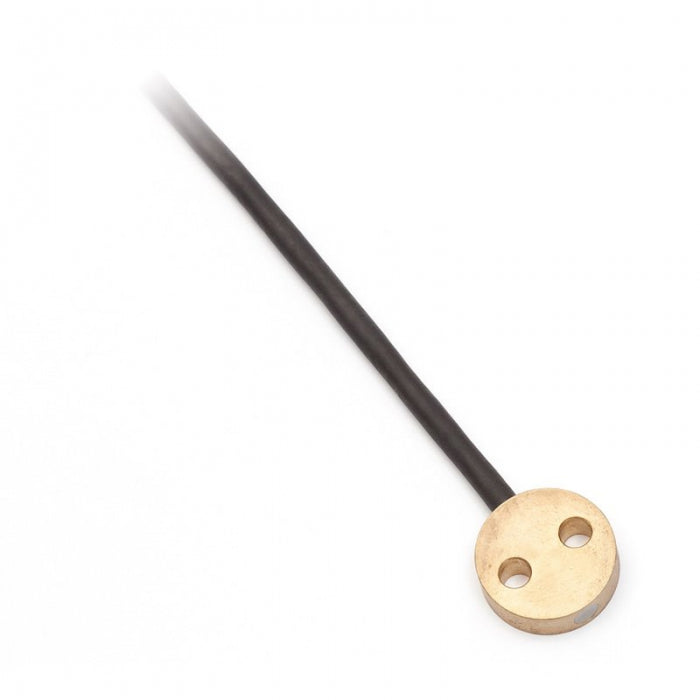

Pt1000TG7/E Temperature Probe ELKA Connector Cable 10 meters

Name: Pt1000TG7/E Temperature Probe ELKA Connector Cable 10 meters
Brand: COMET
SKU: SN167E
Price: 100.00 USD
Availability: InStock

SKU: SKU: SN167E Download PDF

SET THE QTY:

Qty:

Now $100.00 Web pricing policy

~~BEFORE~~ Now $100.00 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Resources

Description:

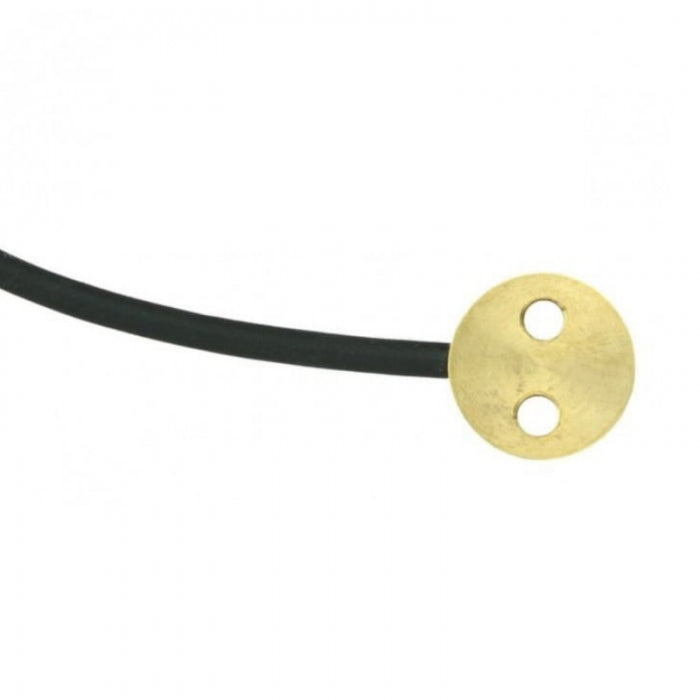

Temperature probes Pt1000TG7 are designed to measure the surface temperature of solid substances The maximum temperature range of use of the sensors is -50 to +200 °C and these limits must not be exceeded even for a brief period Used type of lead-in cable has silicone insulation and shielding The structure of the sensors enables fast response to changes in temperature The sensors are mounted to the surface using one or two M4 screws.

The sensors are designed for use in a chemically non-aggressive environment The method of use must be chosen with regard to the temperature and chemical resistance of the case and lead-in cable.

Features and Benefits:

•Measuring range of -50 to +200 °C.

•Fast response to temperature changes.

•Designed for chemical non-aggressive environment.

•Silicone shielded lead-in cable.

•Mounting requires M4 screws.

Specifications:

Measuring range:	-50 to +200 °C
Accuracy:	± (0.15 + 0.002 t) at °C
Accuracy class:	A
Time response:	t0.5 <10 s (on flat surface of Al prism without paste)
Type of sensing element:	Pt1000
Temperature coefficient:	3850 ppm / °C
Wire connection:	2-wire connection
Material of the case:	brass

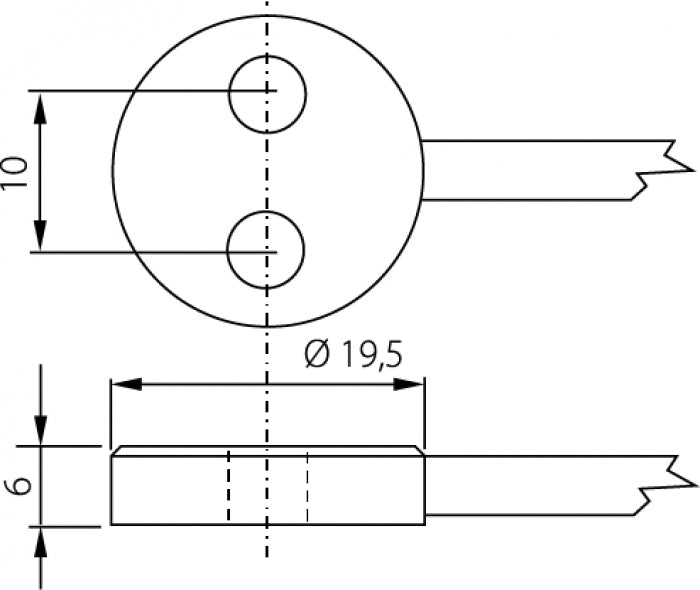

Dimensions of the case:	height 6 ± 0.1 mm; diameter 19.5 ± 0.1 mm; mounting holes diameter 4.3 ± 0.05 mm
Lead-in cable:	silicone shielded
Length of lead-in cable:	10 meters
Connector:	ELKA
IP protection:	IP65
Warranty:	30 months
