Description:

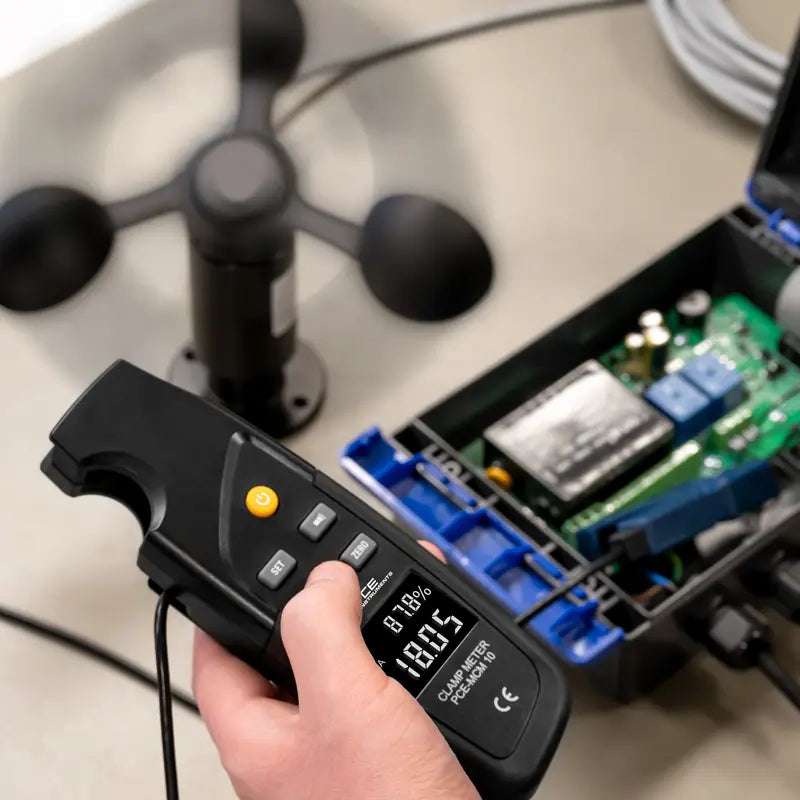

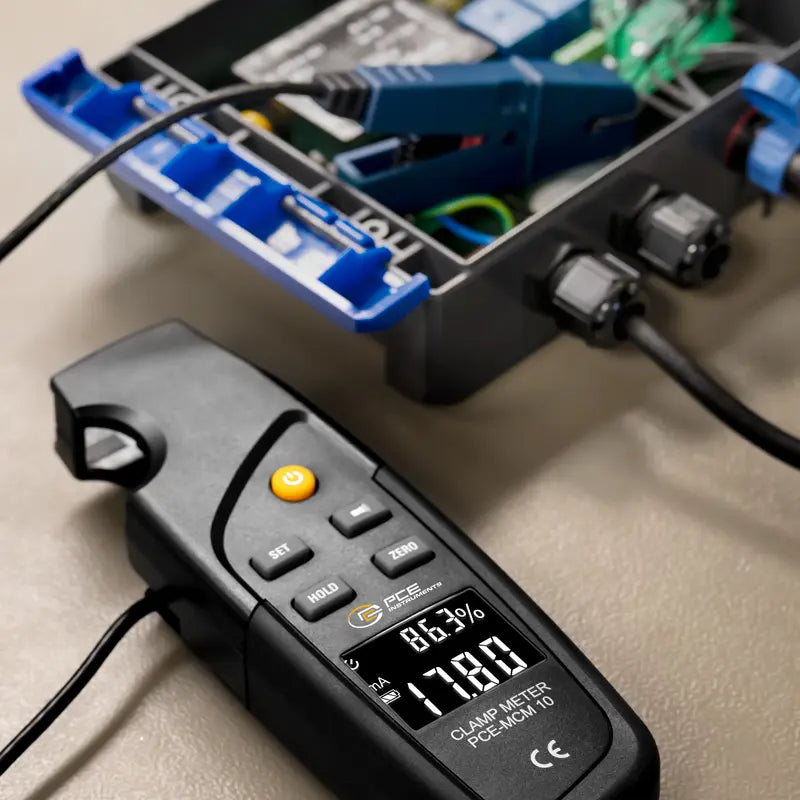

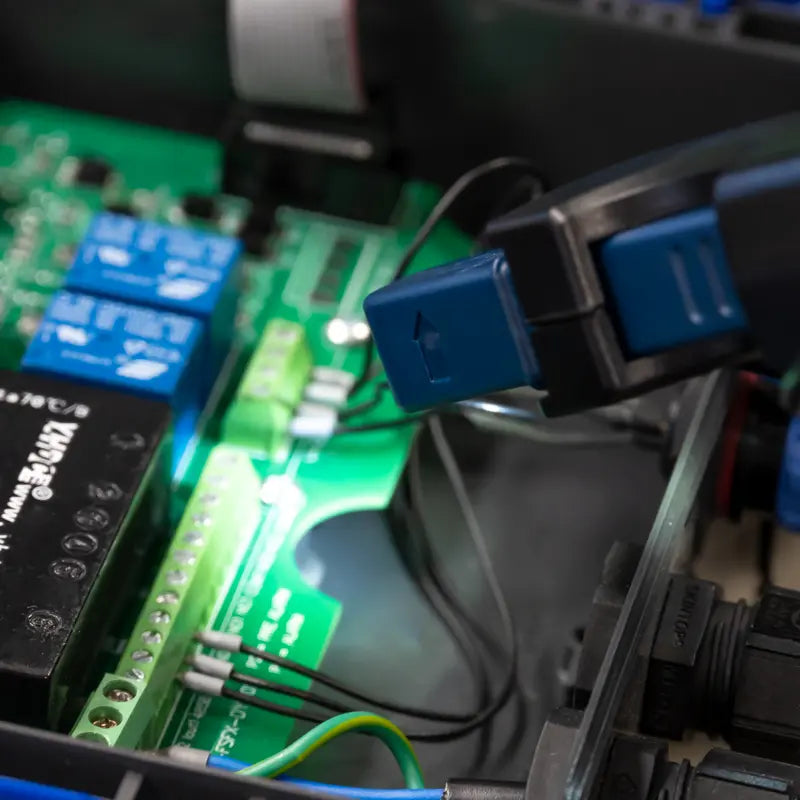

Introducing a precise voltmeter, perfect for measuring direct currents within a range of ±999 mA This device ensures reliable readings with an accuracy of ±03% of the measurement plus 8 digits Equipped with a 1 meter (33 ft) cable that connects to a current clamp, it allows for effortless attachment to the wire being tested, offering the flexibility to operate with both hands—ideal for environments where adjustments are necessary.

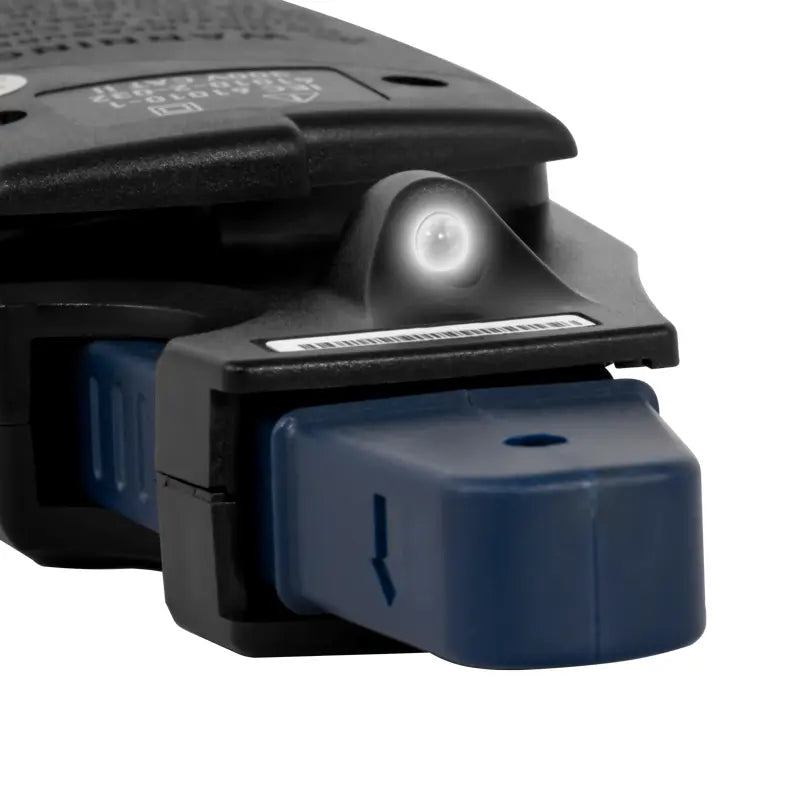

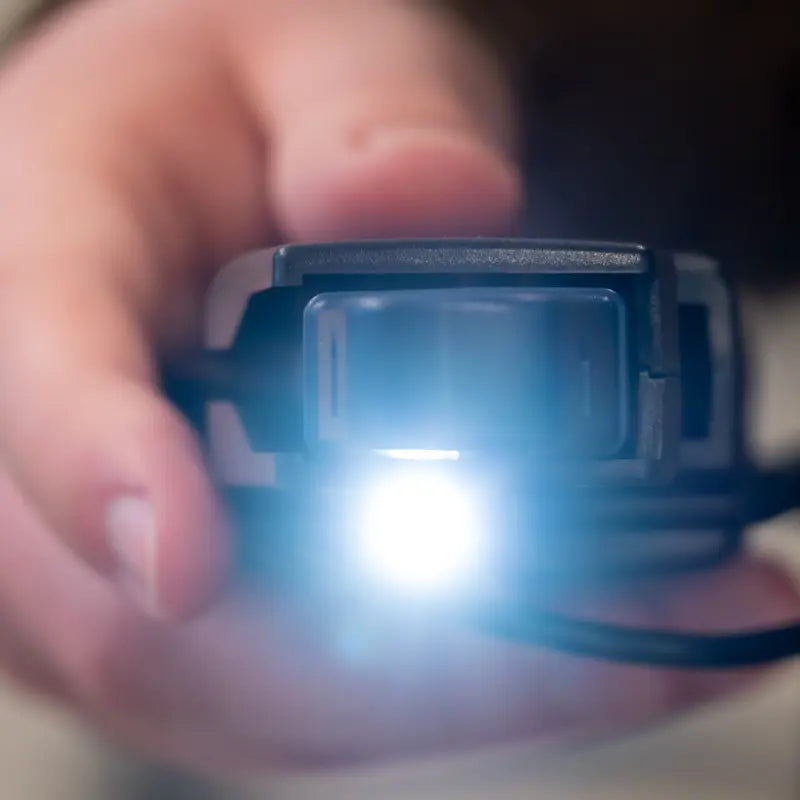

Visibility is enhanced with a built-in LED light that illuminates the measurement area, making it easier to read results With an estimated battery life of 40 hours, this voltmeter is a dependable choice for accurate current readings, especially in relation to process signals An optional ISO calibration certificate is available to further increase usability and trust in this tool.

Features and Benefits:

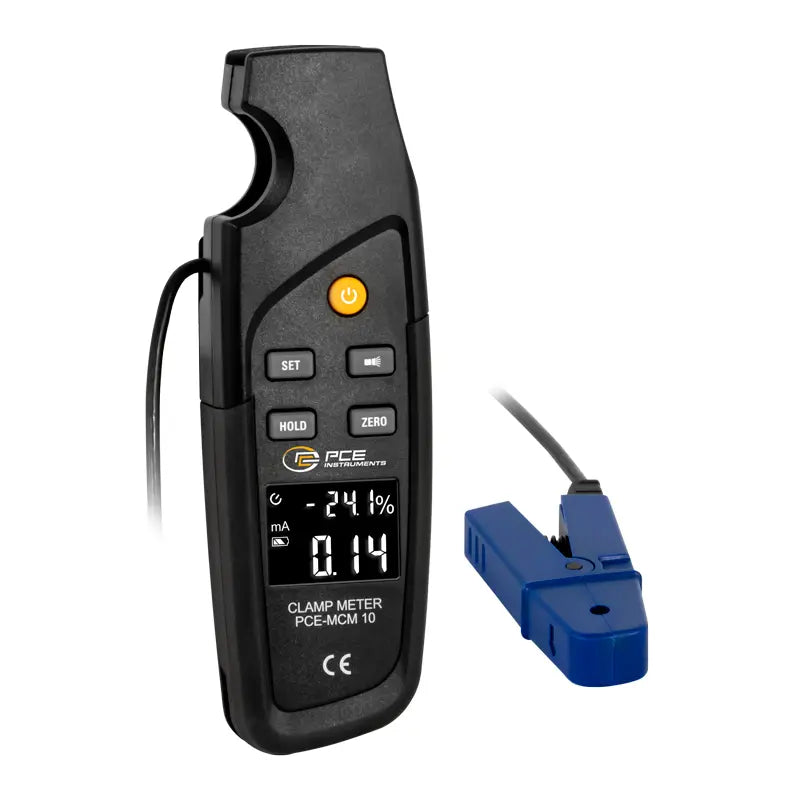

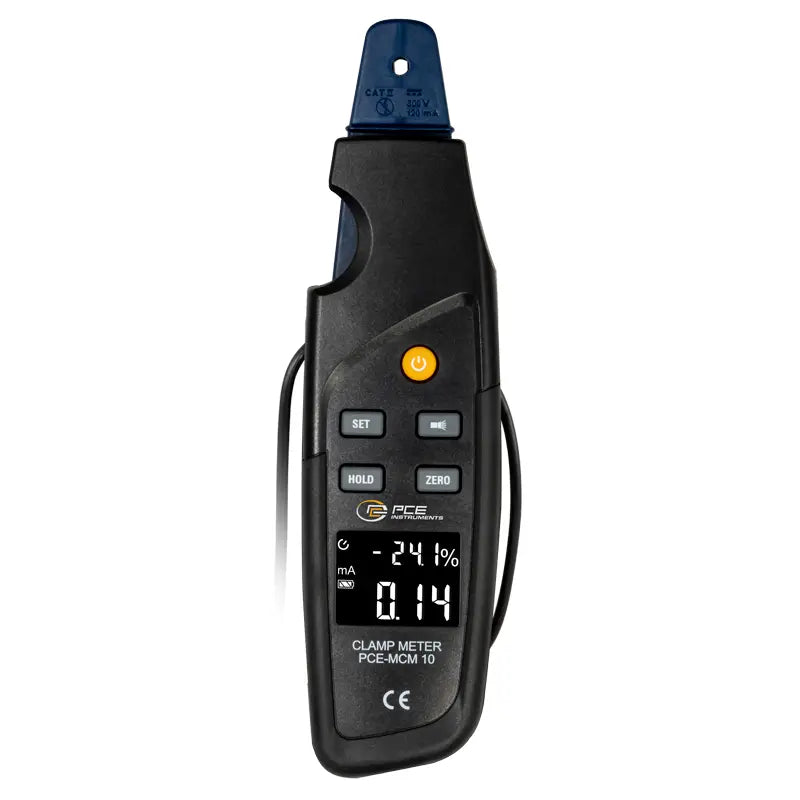

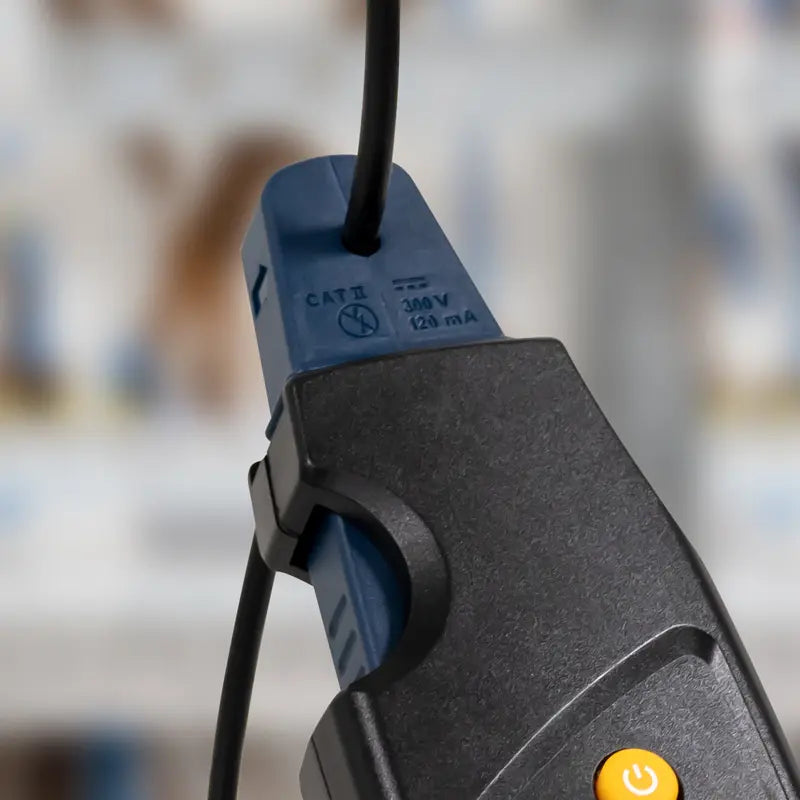

•Detachable process clamp meter with 1 m / 3.3 ft cable.

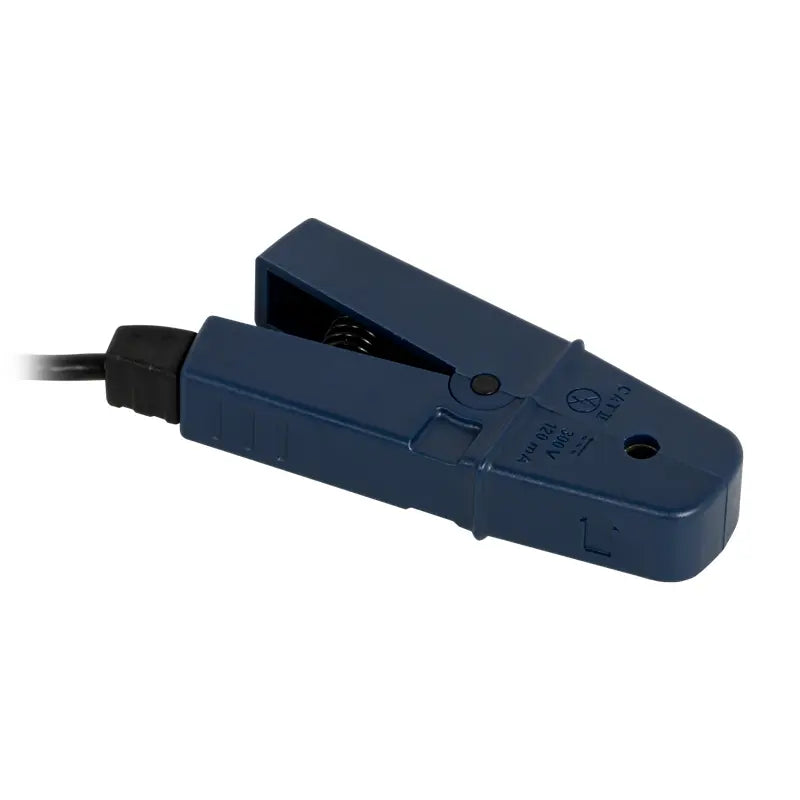

•Clamp opening of 5 mm diameter.

•Measurement range ±99.9 mA DC.

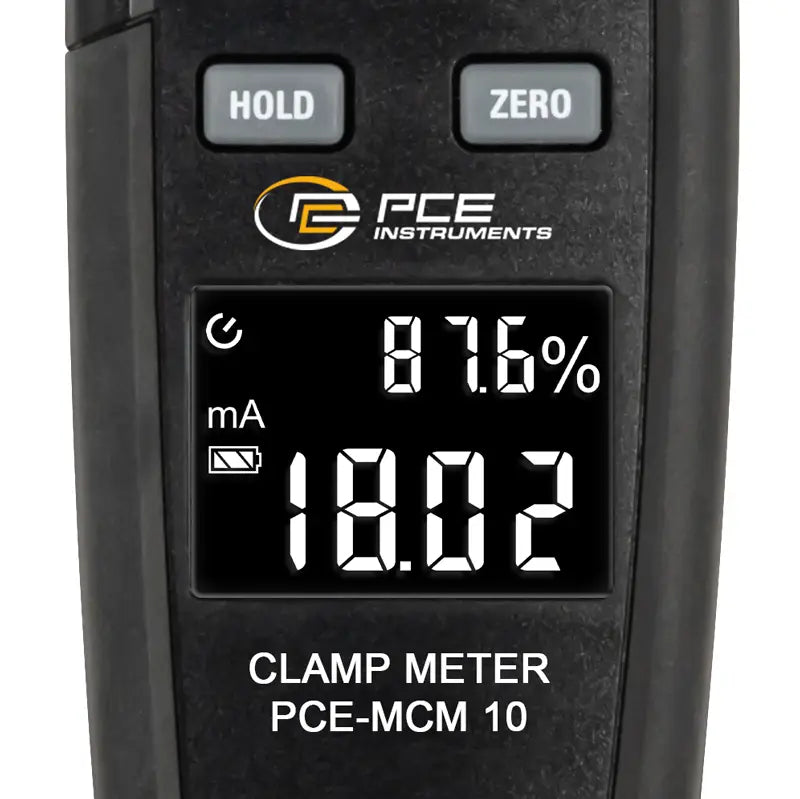

•Display with backlight.

•Operating time of approx. 40 hours.

•Optional ISO calibration certificate.

Specifications:

Measuring range:	±20.99 mA DC; ±21.0 … ±99.9 mA DC
Resolution:	0.01 mA; 0.1 mA DC
Accuracy:	±(0.3 % of rdg. + 8 Digits); ±(1 % of rdg. + 8 Digits)
Influence of the earth's magnetic field on the measured value, max:	0.25 mA DC
Diameter of clamp opening:	Ø5 mm
Switch-off:	automatic
Continuously switched on:	after 10 minutes OFF

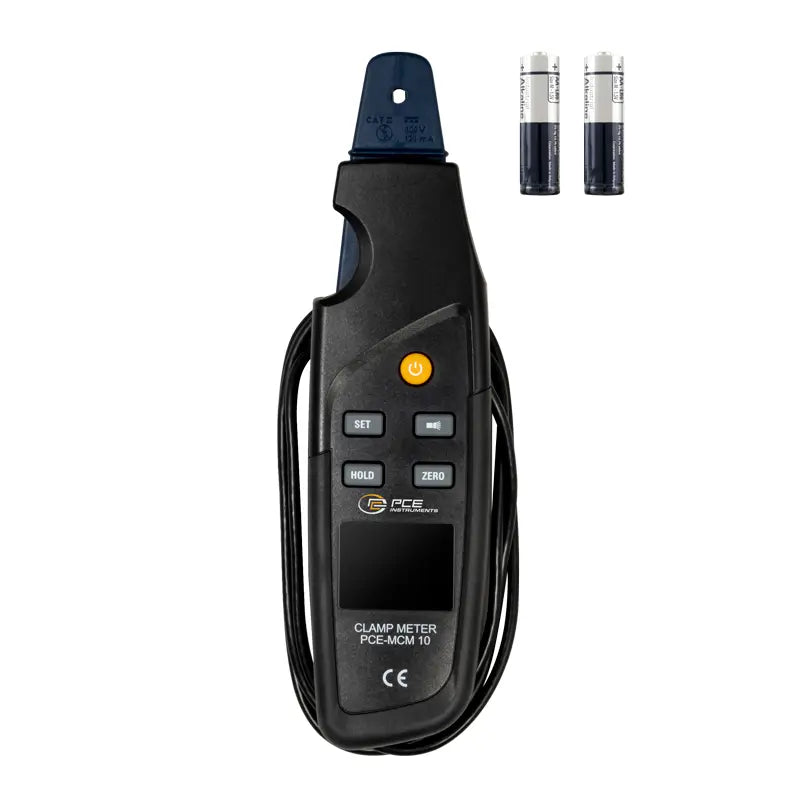

Operating voltage:	3V via 2 AA batteries
Battery life:	approx. 40 hours
Protection class:	IP40
Overvoltage categories:	CAT II 300V
Operating conditions:	-10 … 50°C / 14 ... 122°F
Storage conditions:	-15 … 60°C / 5 ... 140°F
Environmental humidity:	<90% RH at < 30°C / 86°F; <75% RH at 30 ... 50°C / 86 ... 122°F
Working altitude:	0 ... 2000 m / 6,561 ft above sea level
Dimensions:	handheld device: 180 x 55 x 39 mm / 7.1 x 2.2 x 1.5 in; current clamp: 90 x 40 x 1.5 mm / 3.5 x 1.6 x 0.06 in; cable length: approx. 1 m / 3.3 ft
