PCE-LT 12 - Versatile Voltage Tester with Cable Finder & NCV Function

PCE-LT 12 - Versatile Voltage Tester with Cable Finder & NCV Function

SKU: SKU: PCE-LT 12   Download PDF

Select a Variant:
  • PCE-LT 12 - Versatile Voltage Tester with Cable Finder & NCV Function
Qty:
Regular price Now $191.00   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $191.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the PCE-LT 12 Voltage Tester, a multifunctional tool perfect for electricians and IT professionals This compact device not only measures voltage and current but also analyzes network connection cables, making it essential for troubleshooting Use it to ensure your LAN connections are properly wired and functioning, as well as for testing telephone lines Lost track of your cables? No problem! The integrated cable finder allows you to quickly locate the needed cable by connecting the tester to one end, turning it into a transmitter.

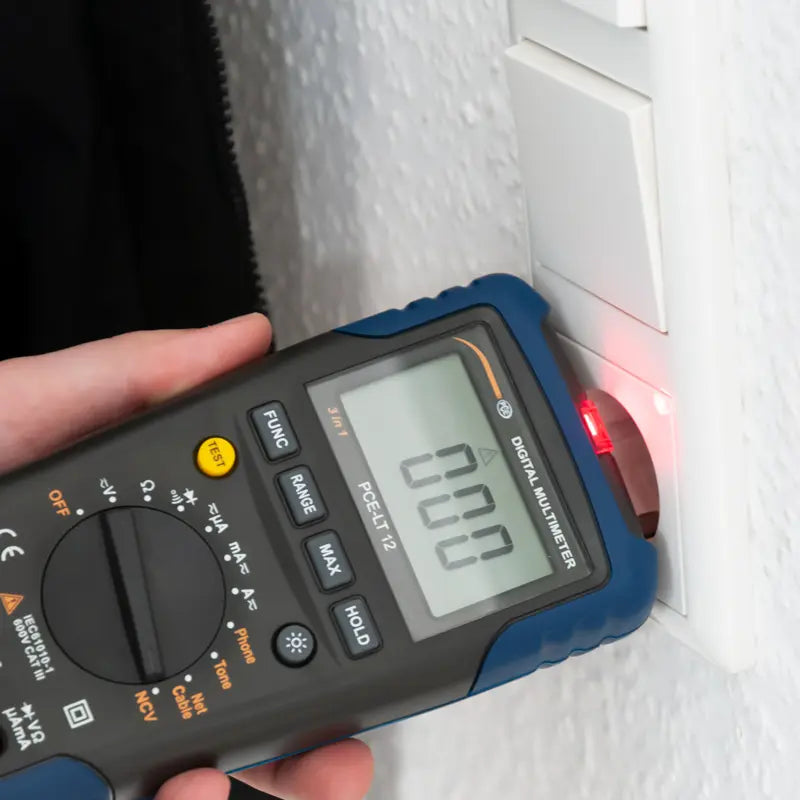

The included receiver will help guide you to the target cable, whether it's hidden in a wiring harness or behind walls Safety is enhanced with the Non-Contact Voltage (NCV) feature, which enables you to check for voltage presence without making contact Simply hold the tester near the line and rely on its audible and visual signals to alert you when voltage is detected This contactless measurement capability significantly minimizes the risk of electric shocks, making it a reliable choice for any work environment.

Features and Benefits:

    •Extensive network connection testing.

    •Telephone connection examination.

    •Acoustic cable finder function.

    •Robust housing for mobile use.

    •Voltage, current, resistance measurement.

    •Contactless voltage detection.

Specifications:

 Measuring function AC
 Measuring range AC 200 mV to 750V
 Resolution AC 0.1 mV to 1V
 Accuracy AC ± (0.8% + 5 digits)
 Maximum input voltage AC 750V
 Frequency range AC 40 ... 400 Hz
 Measuring function DC
 Measuring range DC 200 mV to 1000V
 Resolution DC 0.1 mV to 1V
 Accuracy DC ± (0.5% + 5 digits) to ± (0.8% + 5 digits)
 Maximum input voltage DC 1000V
 Alternating current measuring range
 Input current maximum μA 2000 μA
 Input current maximum mA 200-mA
 Input current maximum A 10 A
 Resistance measuring range 200 Ω to 20 MΩ
 Resolution resistance 0.1 Ω to 0.01 MΩ
 Accuracy resistance ± (1.0% + 5 digits)
 Diode measurement Indicates the forward voltage at 1 mV
 Continuity test Beep at <70 Ω

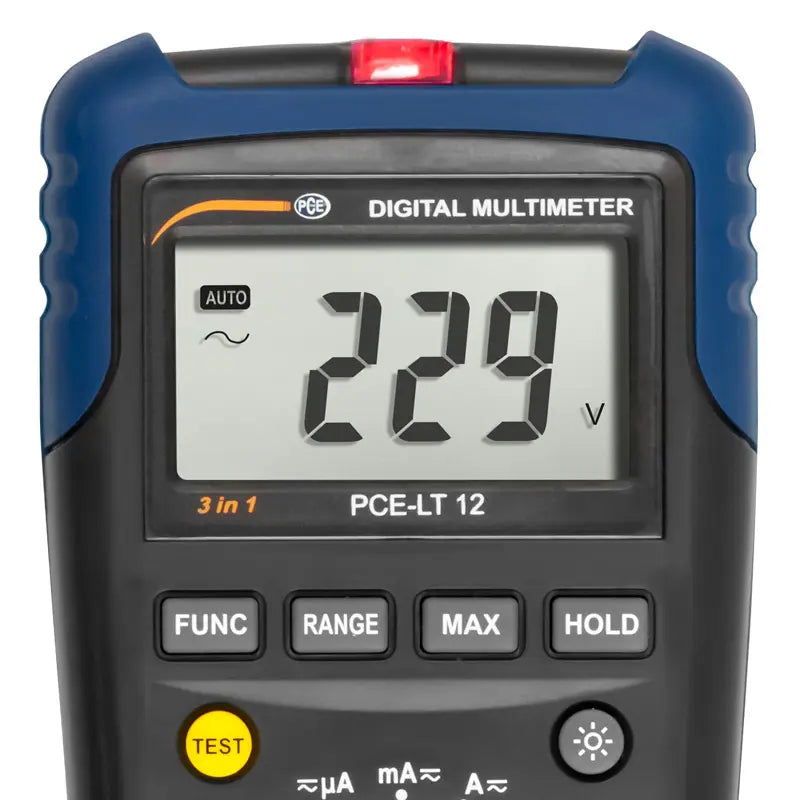

 Display LCD, 1999 digits
 Power supply 9V block battery
 Operating conditions 0 ... 40°C / 32 ... 104°F, -10 ... 50°C / 14 ... 122°F
 Dimensions 195 x 92 x 55 mm / 7.7 x 3.6 x 2.2 in
 Fuses F10A / 500V, F200mA / 1000A
 Battery indicator Display when battery is discharged
 Automatic shutdown After 15 minutes of inactivity
