PCE-LED 20 - Portable LED Lux Meter with 1.5m Sensor Cable

PCE-LED 20 - Portable LED Lux Meter with 1.5m Sensor Cable

SKU: SKU: PCE-LED 20   Download PDF

Select a Variant:
  • PCE-LED 20 - Portable LED Lux Meter with 1.5m Sensor Cable
Qty:
Regular price Now $243.00   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $243.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the PCE-LED 20, an advanced photometer equipped with an external LED light sensor featuring a generous cable length of approximately 15 meters (49 feet) Ideal for various environments such as schools, offices, and factories, this essential tool ensures that lighting conditions adhere to safety standards Quickly and efficiently assess indoor lighting with this reliable meter that displays readings directly on its clear screen for immediate visibility.

Versatile in functionality, the LED light meter comes with multiple presets, allowing you to activate or deactivate different features as needed Enjoy the convenience of the HOLD function which freezes the current measurement on the display Additionally, it can capture extreme values and calculate average readings for comprehensive analysis The device includes useful options such as zero adjustment, automatic shutdown, and auto range selection.

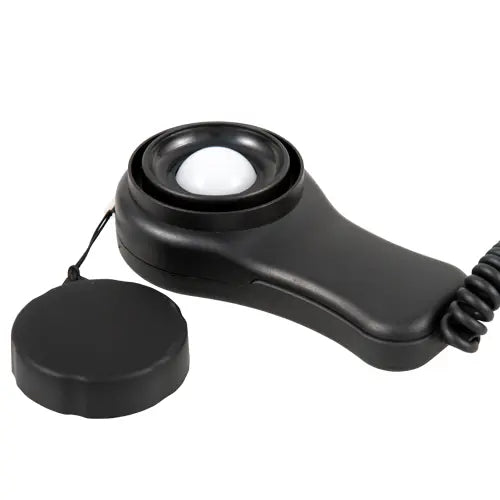

With measurement capabilities in lux and footcandle, this portable LED lux meter features a user-friendly design with only seven keys, enabling operation with one hand Powered by batteries, it is easy to take on the go for field measurements The sensor boasts a large exposure area and is connected via a coiled cable that can be fully extended when required To protect the sensor and extend its lifespan, a protective cap is included, which should be used during storage and also when performing zero adjustments.

Features and Benefits:

    •Displays measurements in lux or footcandle.

    •Battery status indicator.

    •Battery-saving automatic power off.

    •Overload indicator.

    •Wired sensor cable length of 1.5 m / 4.9 ft.

    •MIN / MAX / AVG / HOLD functions.

    •2.5 measurements per second.

    •Zero adjustment.

    •Automatic range selection.

Specifications:

 Measuring ranges 40 / 400 / 4000 / 40000 / 400000 lx, 40 / 400 / 4000 / 40000 fc
 Measuring units Lux (lx) or footcandle (fc)
 Sensor Silicone photodiode with built-in filter
 Display Max. representation 3999, Representation of 40000 / 400000 lux and 40000 fc in klux and kfc respectively
 Measuring accuracy ± 3% (for a standard incandescent lamp at 2856 K and LED white light), ± 6% for other visible light sources
 Overload indication OL = Overload
 Internal memory 99 measured values
 Measuring rate 2.5 x per second
 Measurable sources of light LED and any other visible light
 Measuring functions Maximum / Minimum / Average / Hold / Zero, Automatic balance, Automatic shutdown, Automatic range selection
 Power supply 3 x 1.5V AAA batteries
 Operating conditions 5 ... 40°C / 41 … 104°F, 0 ... 70% RH
 Storage conditions -10 ... 60°C / 14 … 140°F, 0 ... 70% RH
 For compliance with standards EMC: EN 61326-1 (2006), IEC 61000-4-2 (2006), IEC 61000-4-3 (2006) + (2007), JIS C1609: 1993, CNS 5519, OSHA § 1915.82
 Dimensions Approx. 162 x 62 x 28 mm / 6.4 x 2.5 x 1.1 in (L x W x H)
 Length of sensor cable Approx. 1.5 m / 4.9 ft
 Reproducibility ± 3%
