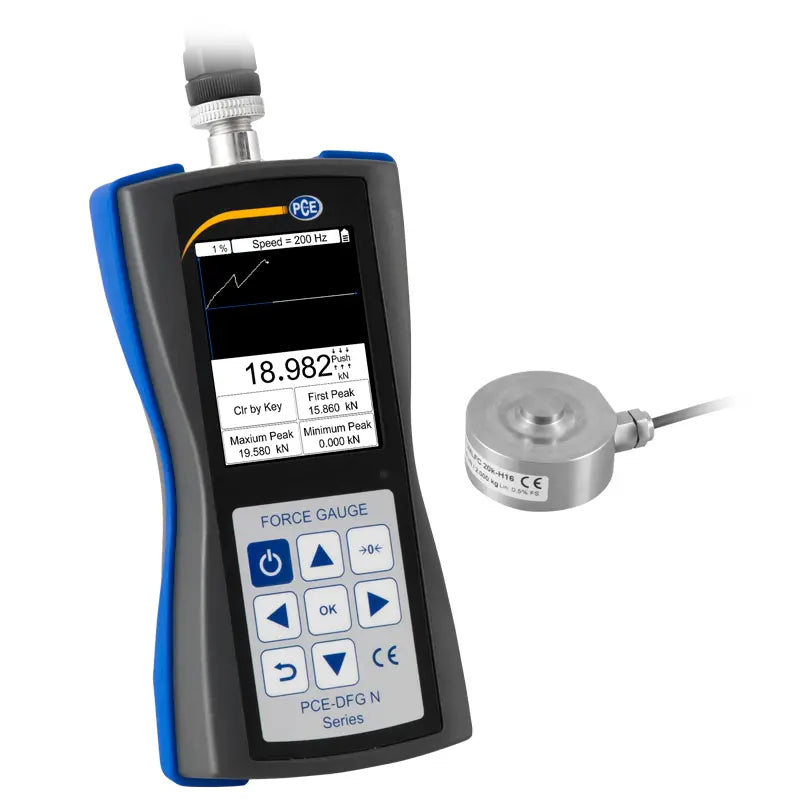

PCE-DFG NF 20K - Compact Force Gage with 3m Cable & PEAK Hold Function

Description:

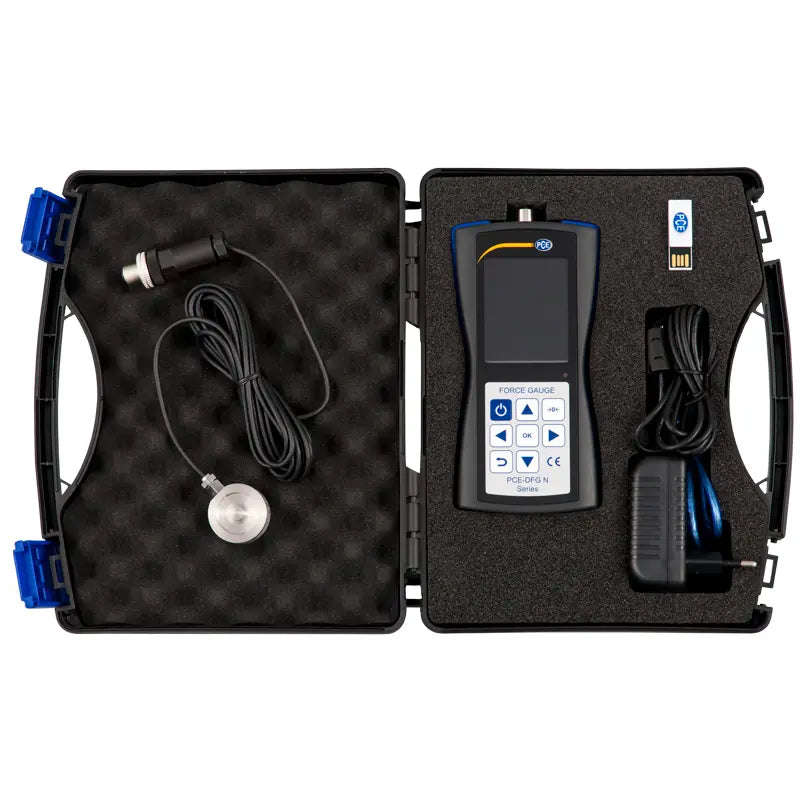

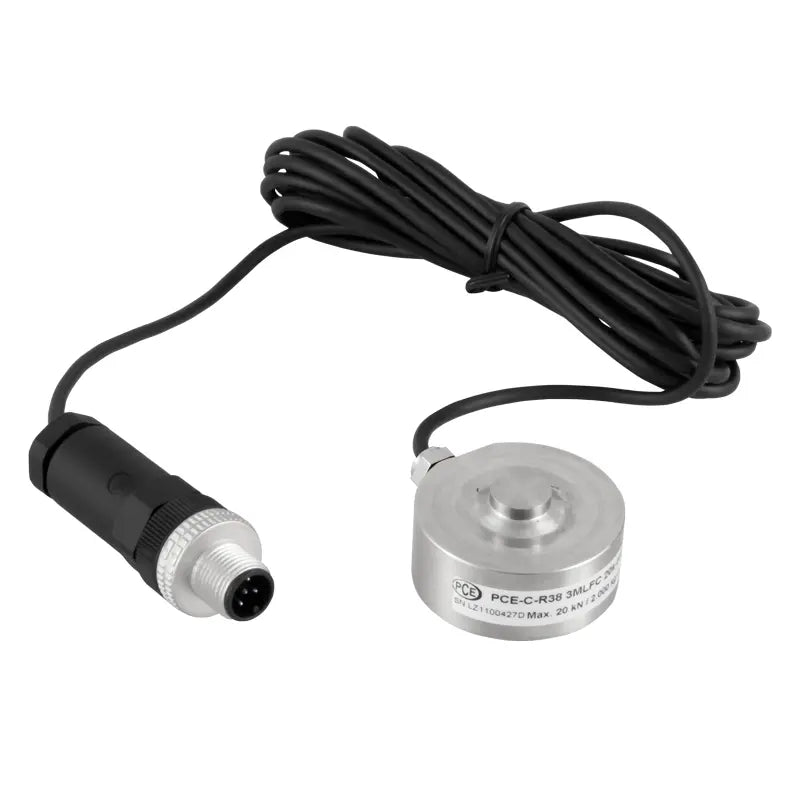

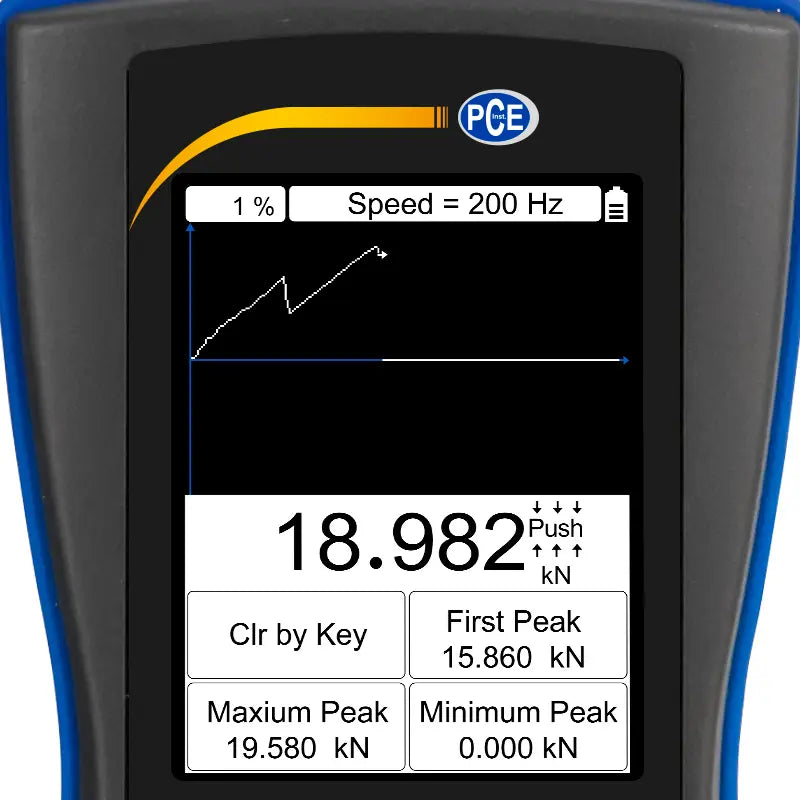

Introducing the PCE-DFG NF 20K Force Gage, your reliable solution for measuring compressive forces, especially in challenging locations This device is paired with an external load cell and includes a 3-meter sensor cable that enhances its adaptability to various setups, thanks to its compact sensor dimensions Operating at an impressive sampling rate of up to 1600 Hz, it offers real-time values and graphical traces directly on the display.

Measurements can be recorded internally or transferred via USB with the provided software, allowing for live data capture at 800 Hz The PEAK Hold feature retains the highest measured value until it is exceeded or reset, also enabling the storage of two limit values for ongoing observation Should any limits be surpassed, visual indicators are triggered, providing alerts through external interfaces—making it a great companion for testing machines and applications that require precision and monitoring.

Features and Benefits:

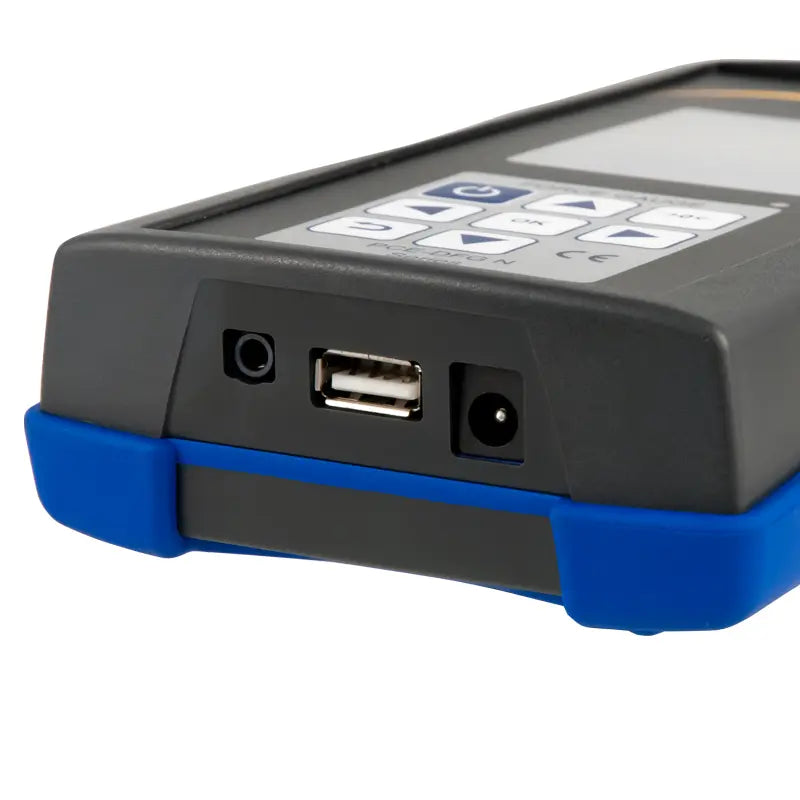

•USB interface for easy connectivity.

•Graphic display for clear visualization of data.

•Fast response time up to 1600 Hz.

•Includes PC software for data analysis.

•Memory capacity for 100 measurements.

Specifications:
