PCE-DFG N 50K - High-Resolution Force Gauge with USB, 6m Cable

Description:

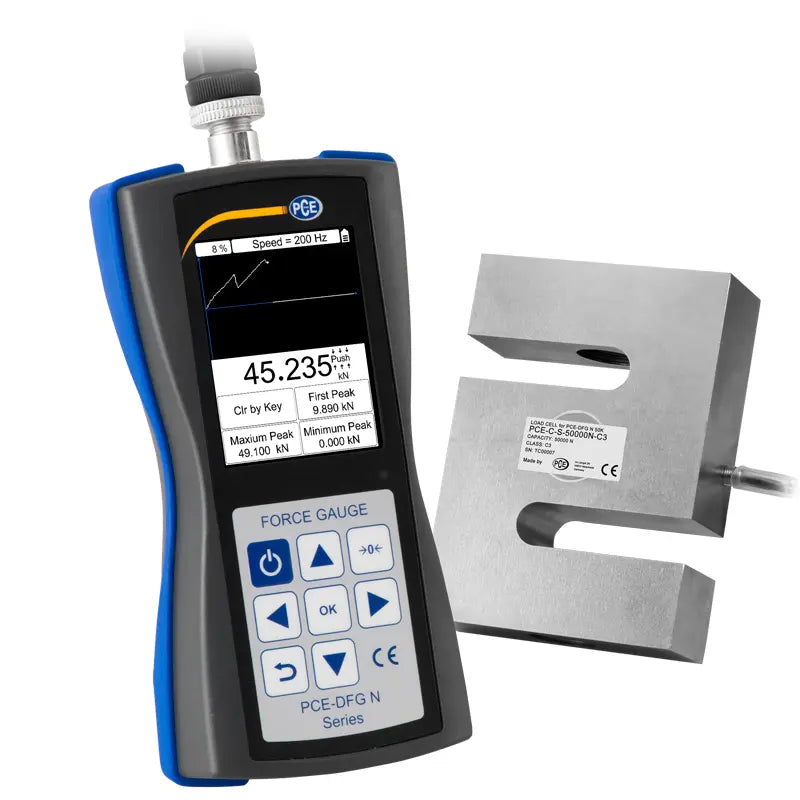

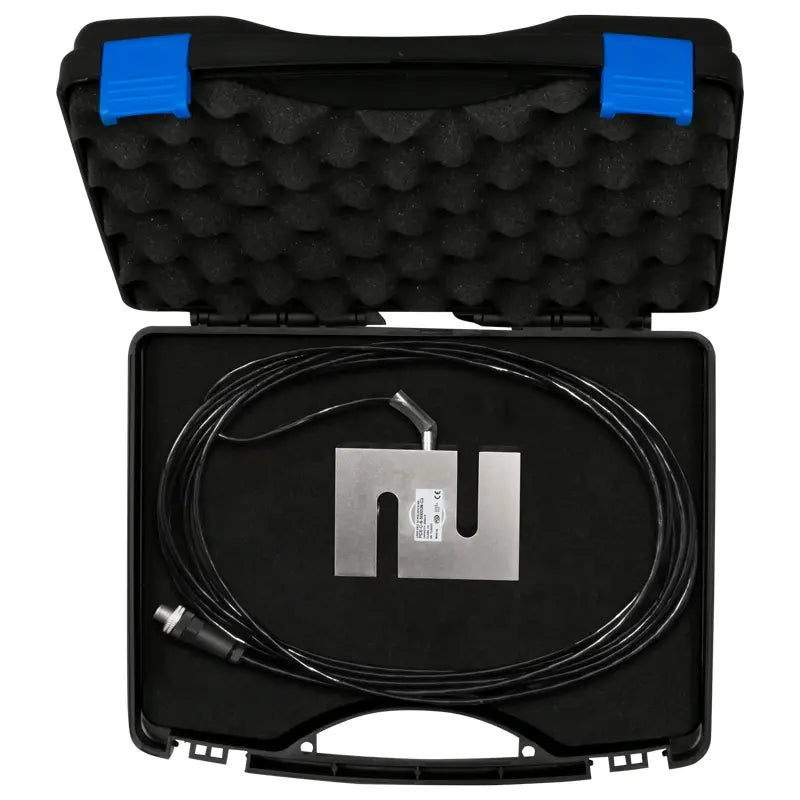

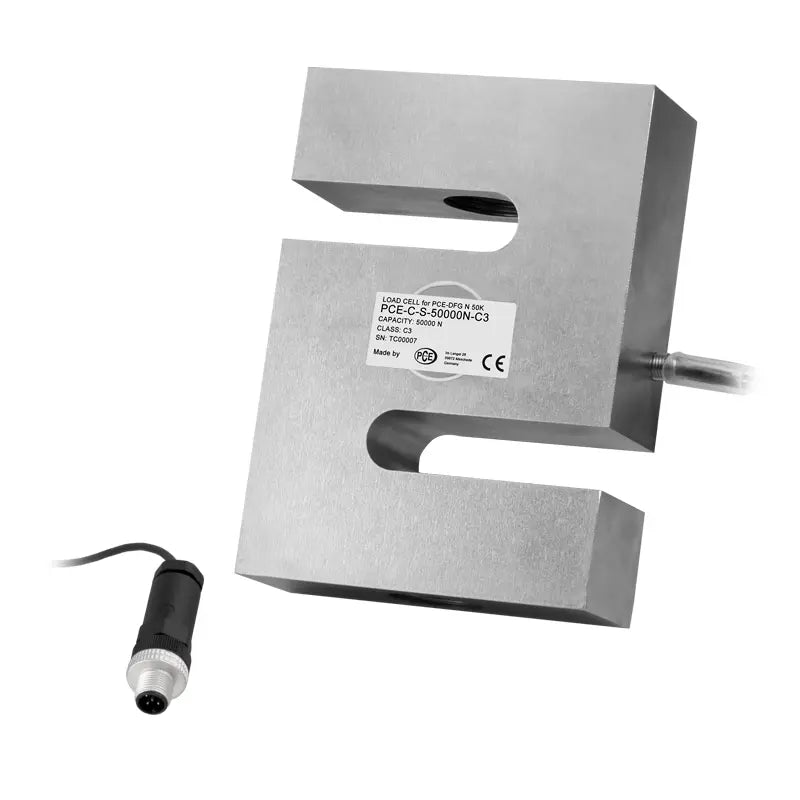

Introducing the PCE-DFG N 50K force gauge, equipped with an external S load cell, USB connectivity, and included PC software This precision instrument is adept at measuring both tensile and compressive forces, delivering high-resolution results essential for test laboratories The external measuring cell connects seamlessly with a sensor cable that extends approximately 6 meters Operating with a remarkable sampling rate of up to 1600 Hz, real-time measured values are displayed on the device as both instantaneous figures and a graphical measurement curve.

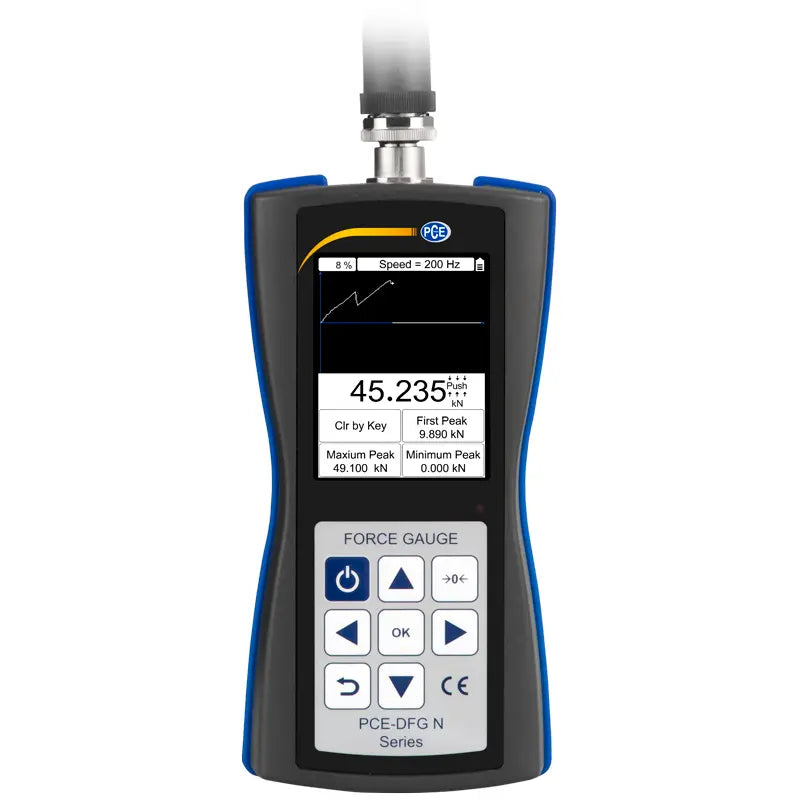

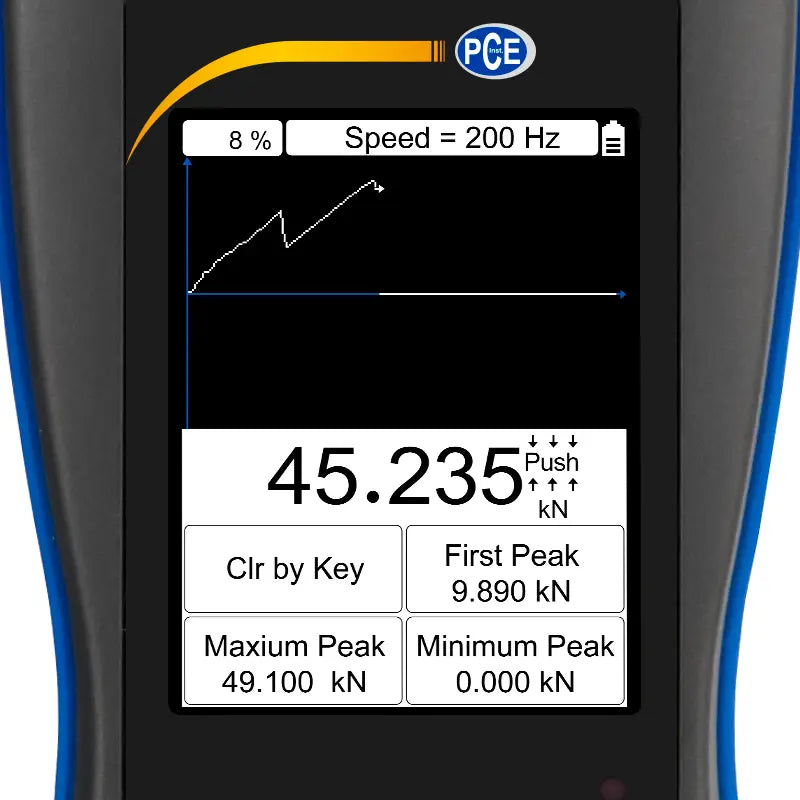

Users can choose to store measurements internally or transfer live data via the USB interface, with sampling rates of up to 800 Hz The force gauge features a user-friendly graphic LCD that presents readings in both numeric and graphical formats With an IP54 rating, it’s well-suited for challenging industrial environments Additionally, the device allows for the configuration of two limit values to be monitored continuously; any breach or failure to reach these limits triggers an alert on the display and can activate external notifications.

Features and Benefits:

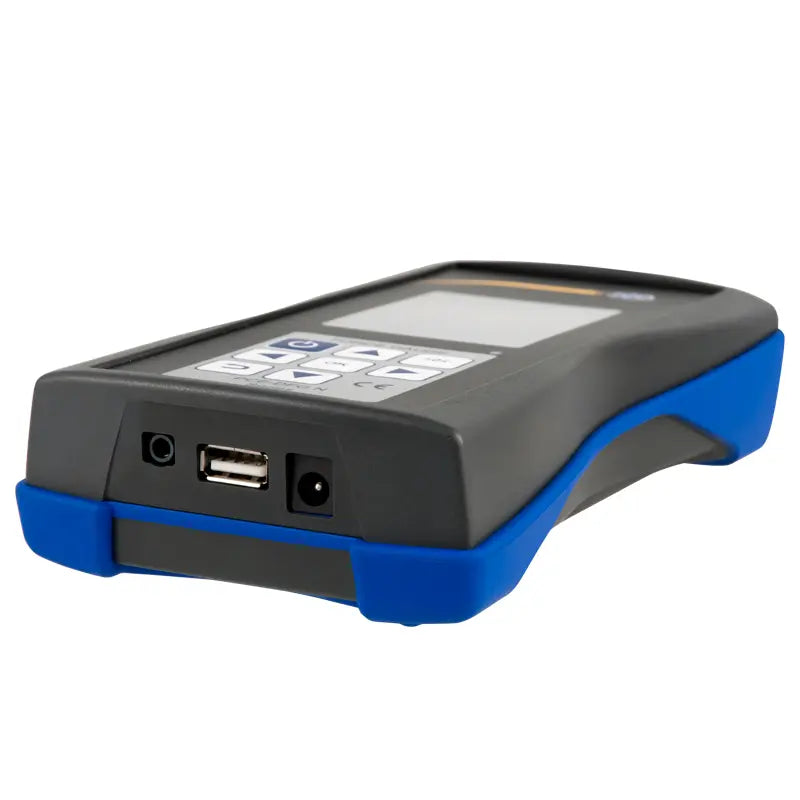

•USB interface.

•Graphic display.

•Fast response time.

•PC software included.

•Memory for 100 measurements.

Specifications:
