PCE-CLT 10 - Accurate Cable Locator with 3000m Range & TFT Display

PCE-CLT 10 - Accurate Cable Locator with 3000m Range & TFT Display

SKU: PCE-CLT 10   Download PDF

Select a Variant:
  • PCE-CLT 10 - Accurate Cable Locator with 3000m Range & TFT Display
Qty:
Now $297.00   Web pricing policy
BEFORE   $0.00 Now $297.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

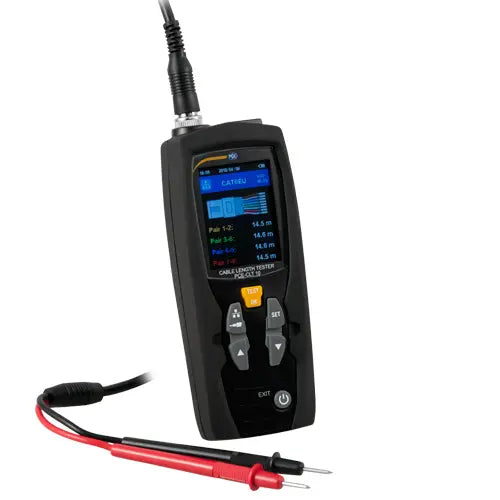

Introducing the PCE-CLT 10 Cable Locator, a precision instrument for measuring cable lengths with exceptional accuracy This versatile device features a 24" TFT display for easy viewing and can measure distances up to 3000 meters (or 98425 feet) It accommodates 20 pre-set cable types and has the capability to store 99 custom cable configurations, making it highly adaptable for various applications Utilizing advanced time domain reflectometry technology, the PCE-CLT 10 efficiently measures both installed and ready-to-install cables, reaching lengths of up to three kilometers or two miles.

The user-friendly interface grants quick access to stored measurements for enhanced convenience To extend battery life, the device automatically powers down after 10 minutes of inactivity, with customizable shutdown timings The bright illuminated display ensures you can read measurement results with ease, even in low-light conditions.

Features and Benefits:

    •High measuring accuracy up to 3000 m / 9842.5 ft.

    •Results displayed in seconds.

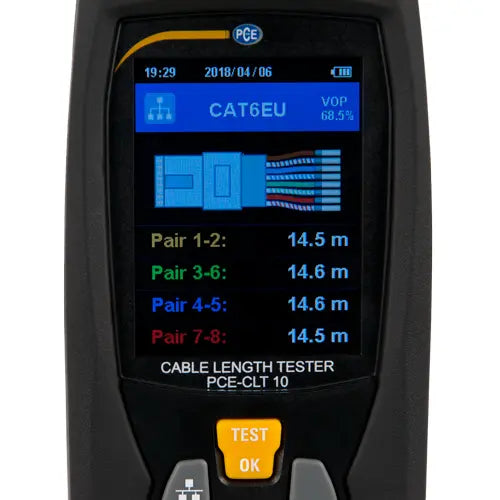

    •2.4" TFT color display.

    •Automatic shutdown adjustable.

    •Illuminated TFT display.

    •20 pre-set cable types.

Specifications:

 Measuring range cable length: 5 ... 3000 m / 16.4 ... 9842.5 ft with shortening factor ≤99.9%, 5 ... 2400 m / 16.4 ... 7874.0 ft with shortening factor ≤80.0%, 5 ... 2000 m / 16.4 ... 6561.7 ft with shortening factor ≤66.0%, 5 ... 1500 m / 16.4 ... 4921.3 ft with shortening factor ≤50.0%
 Measurement units: m, ft
 Resolution: 0.1 m
 Measuring principle: Time domain reflectometer
 Selection area: Automatic control range
 Measurement accuracy: ± [2% of reading ± 0.2 m] <100 m, ± [2% of reading ± 0.5 m] ≤100 m
 Impedance selector: Automatic output of the impedance control
 Shortening factor / propagation speed: Adjustable from 1.0 ... 99.9%
 Cable types: 20 standard cables
 Memory: 99 memory slots for individual cables

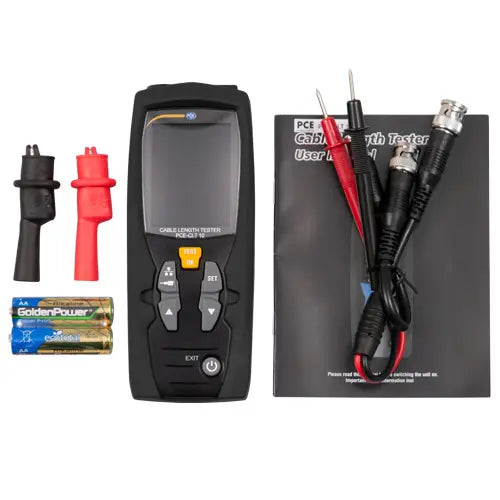

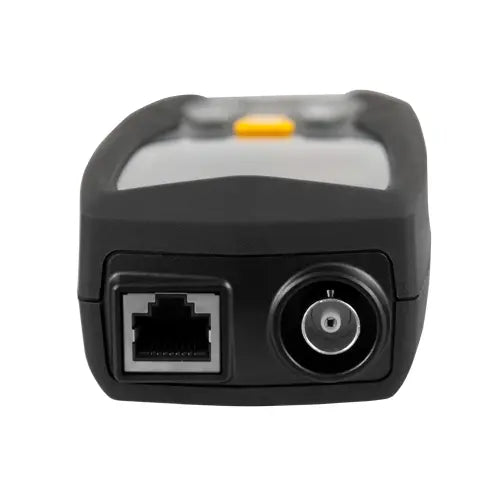

 Connector type: BNC, RJ45, and alligator clips
 Power supply: 2 x 1.5V AA battery
 Battery status indicator: Yes
 Automatic shutdown: Adjustable between 10 and 60 minutes
 Menu languages: German, English
 Operating temperature: 0 ... 40°C / 32 ... 104°F
 Storage temperature: -10 ... 50°C / 14 ... 122°F
 Relative humidity: 0 ... 80% relative humidity
