Description:

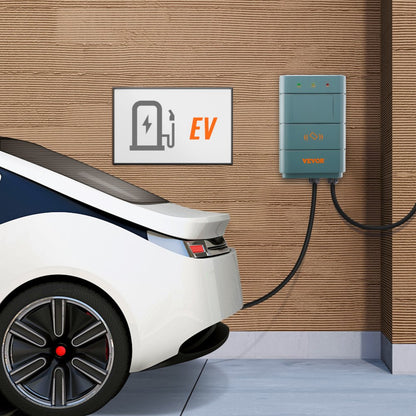

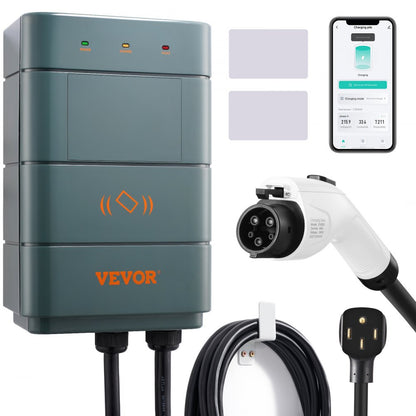

Introducing the VEVOR Level 2 Electric Vehicle Charging Station, your efficient solution for charging electric vehicles This advanced EV charger features adjustable power settings ranging from 0 to 40 amps, providing a powerful output of 96 kW via a 240V NEMA 14-50 plug User-friendly and convenient, the charging process is easily managed through a smartphone app, granting you the ability to monitor and schedule your charging sessions.
Crafted from robust materials, this charger is built to last, with thick cables designed for frequent use without signs of wear Its durable construction also includes weather-resistant elements, making it suitable for both indoor and outdoor applications Enhanced with smart technology, this charger offers Wi-Fi connectivity and various safety measures such as voltage protections and real-time monitoring, complete with clear LED indicators.
Features and Benefits:

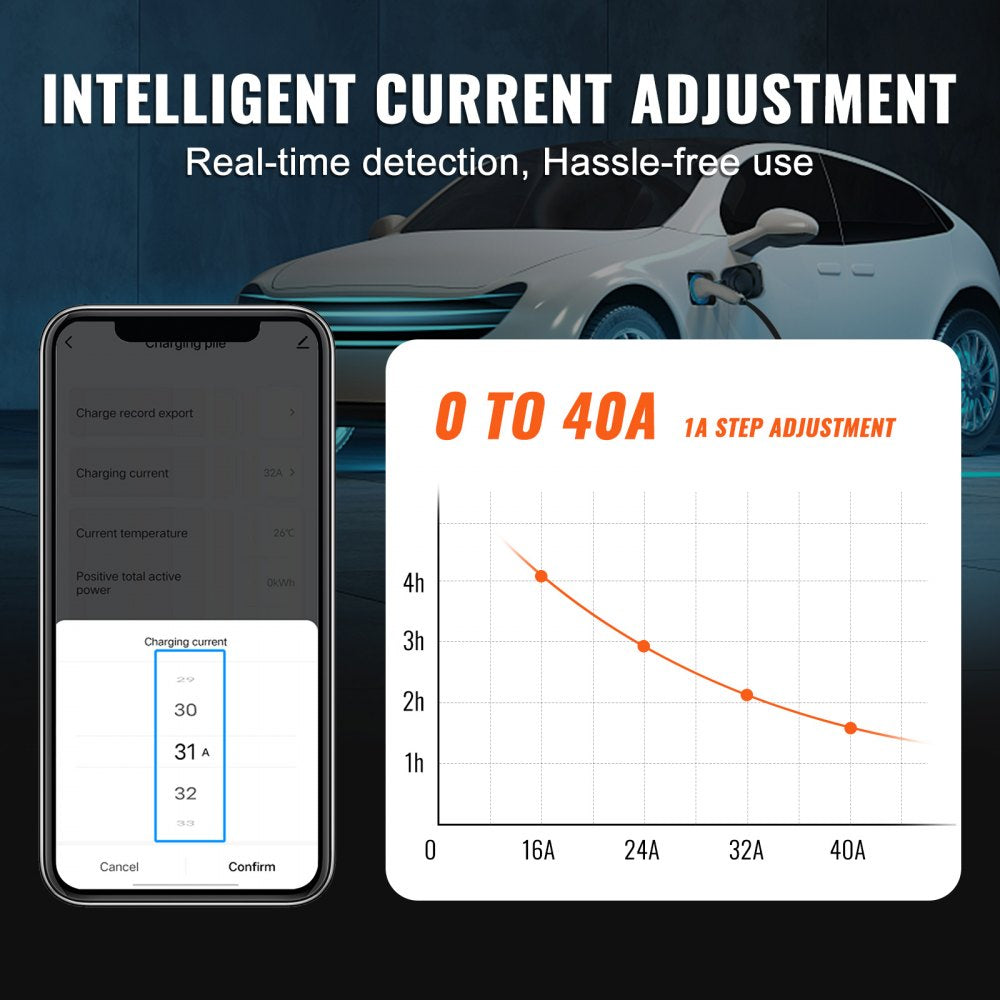

•Adjustable current settings from 0 to 40A.
•Wi-Fi connectivity for remote monitoring and control.
•User-friendly installation with pre-installed components and clear instructions.
•Weather-resistant design suitable for various environments.
•High safety standards with ETL and Energy Star certifications.
•Real-time charging status updates via a smart app.
•Charging electric vehicles and plug-in hybrid vehicles.
Specifications:
| Model | EV-A01-US009B |
| Voltage | Level II 240V±15%, 60 Hz |
| Power Output | 9.6 kW |
| Maximum Output Current | 40A |

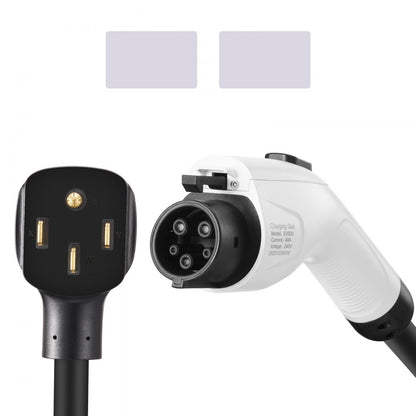

| Charging Interface | SAE J1772 |
| Input Plug | NEMA 14-50P |
| IP Rating | IP66 |
| Charging Cable | 22 ft / 6.7 m (2*9AWG+1*10AWG, TPE) |
| Input Cable | 3.3 ft / 1 m (2*8AWG+1*10AWG, PVC) |
| Certification | ETL Certified; Energy Star Certified |
| Enclosure Material | PC+ABS |

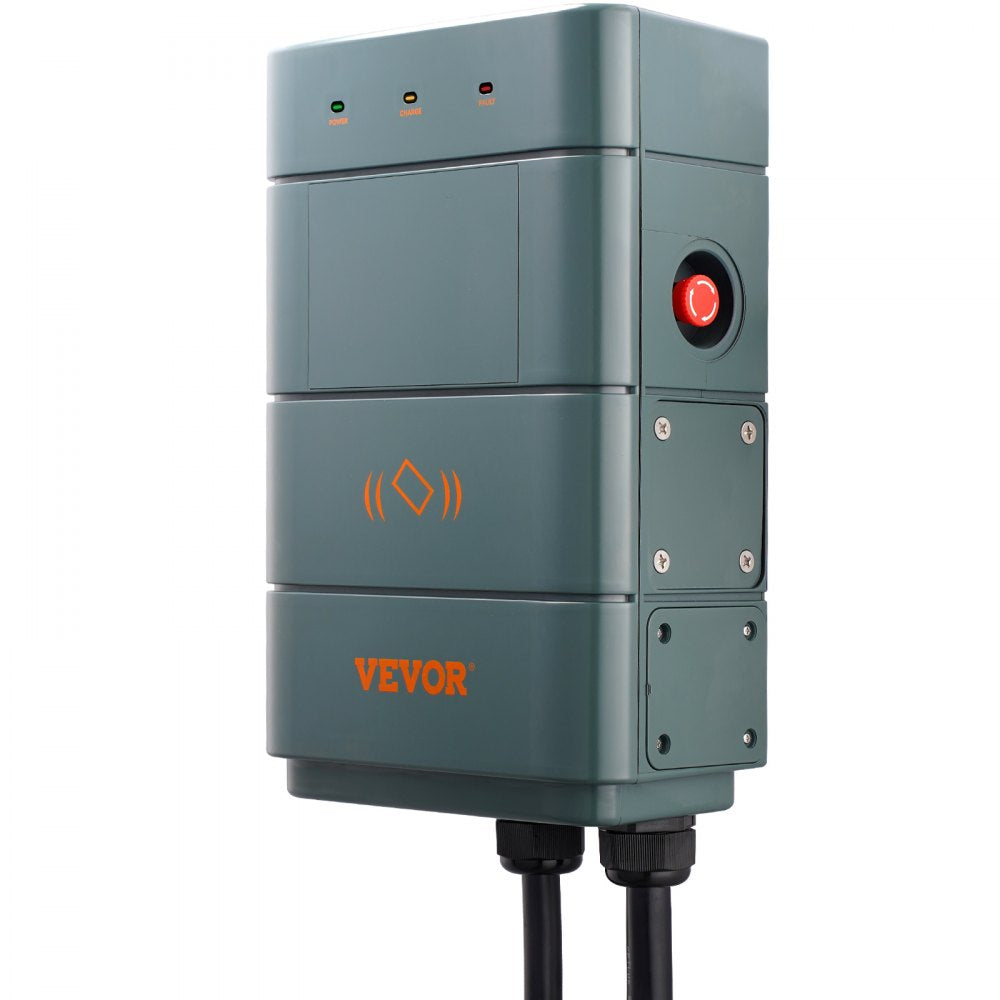

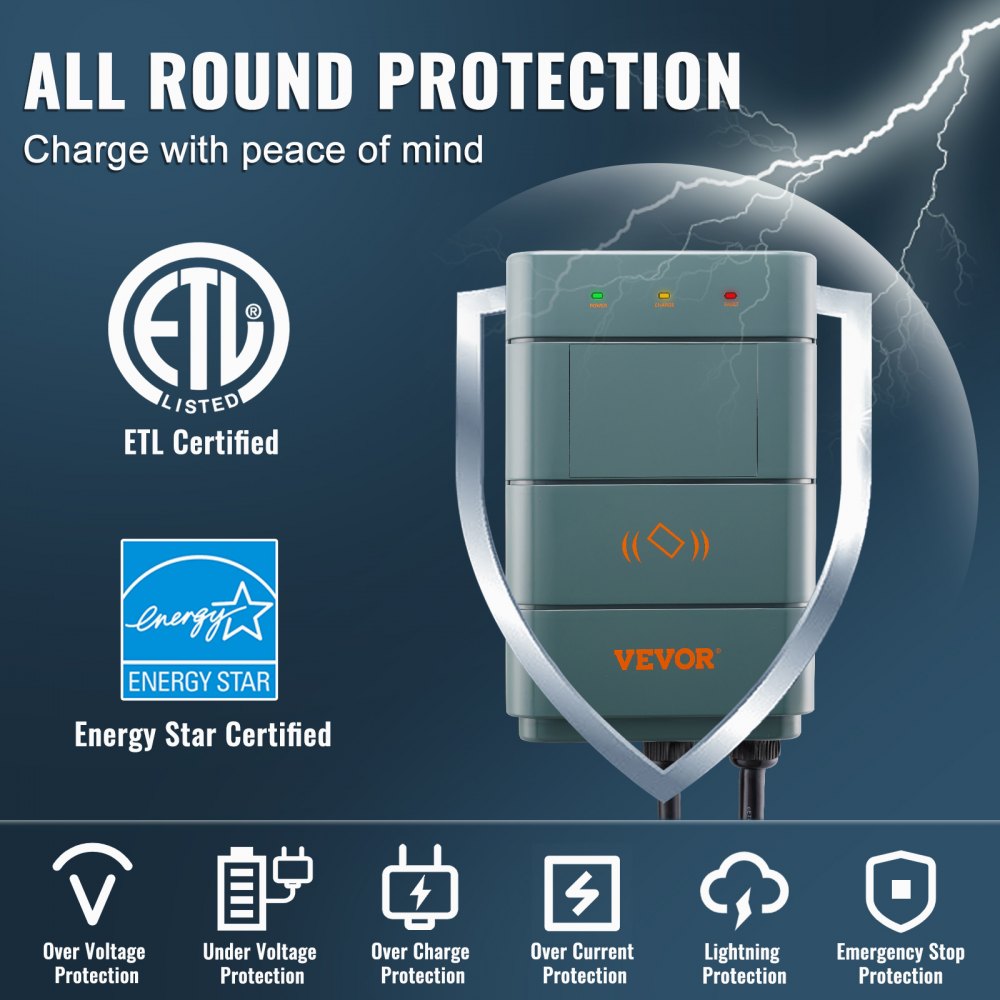

| Protection Function | Over Voltage, Under Voltage, Over Charge, Over Current Protection, Lightning Protection, Emergency Stop Protection |

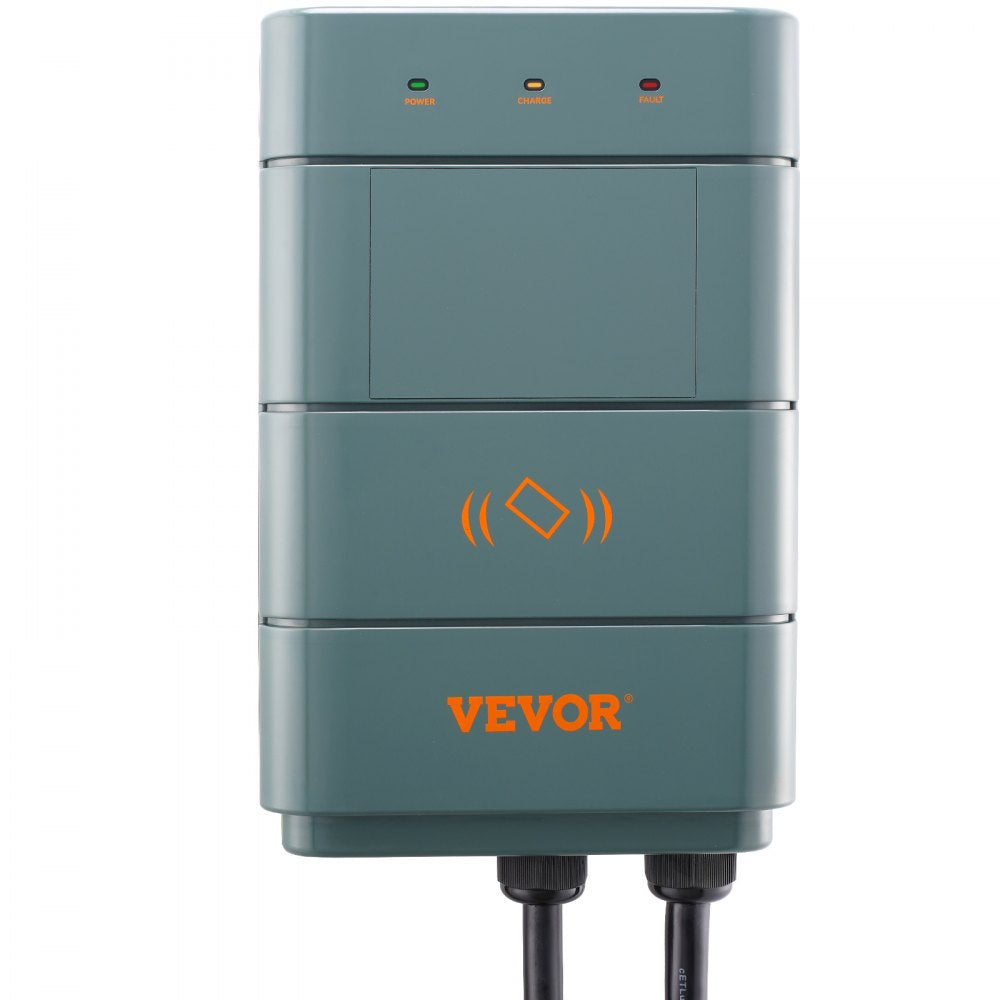

| Indicator Light | Standby - Green on; Charging - Yellow blinking; Alarm - Red on |
| Indication of Status | 3*LED Light Indicator |

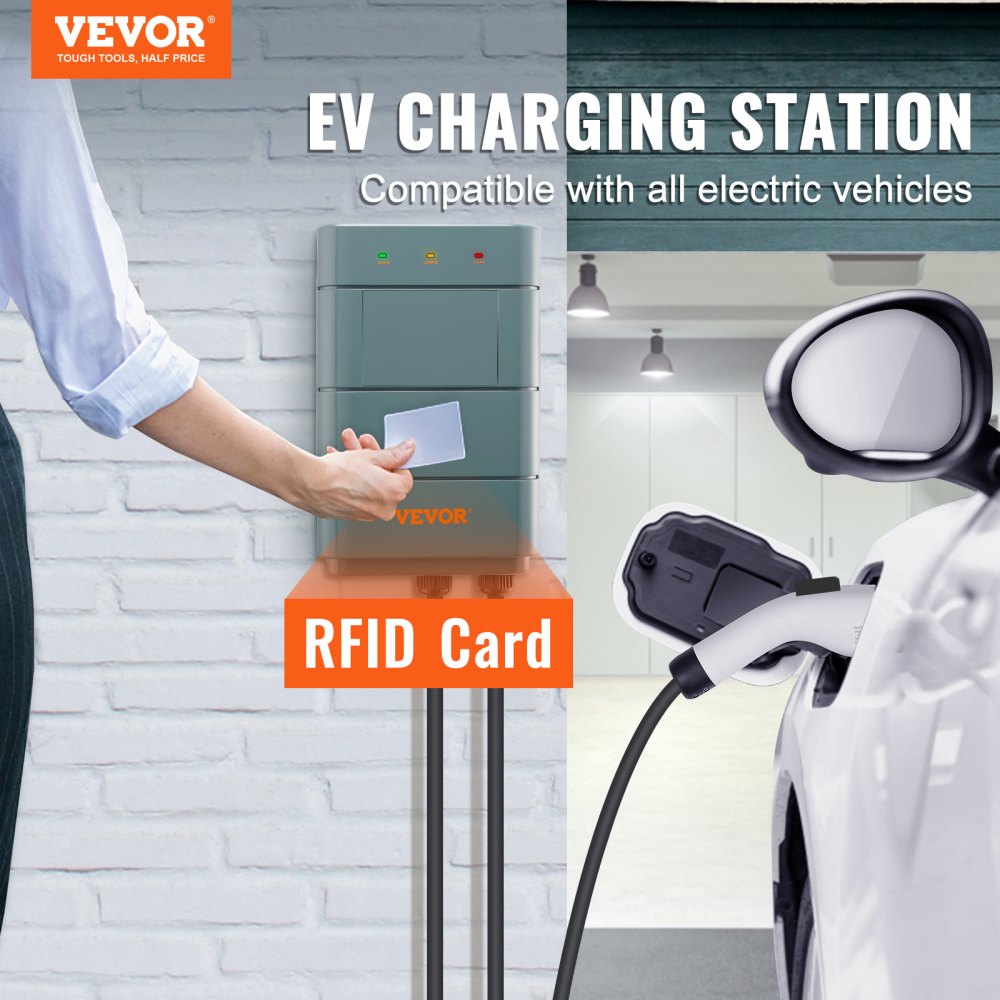

| Charging Mode | Swipe Card Charging / APP Charging |
| Operating Temperature | -22 to 122℉/-30 to 50℃ |
| Relative Humidity | 5% to 95% No Condensation |
| Standard of Reference | CCS1 (combo/Type 1) AC Level 2 charging |

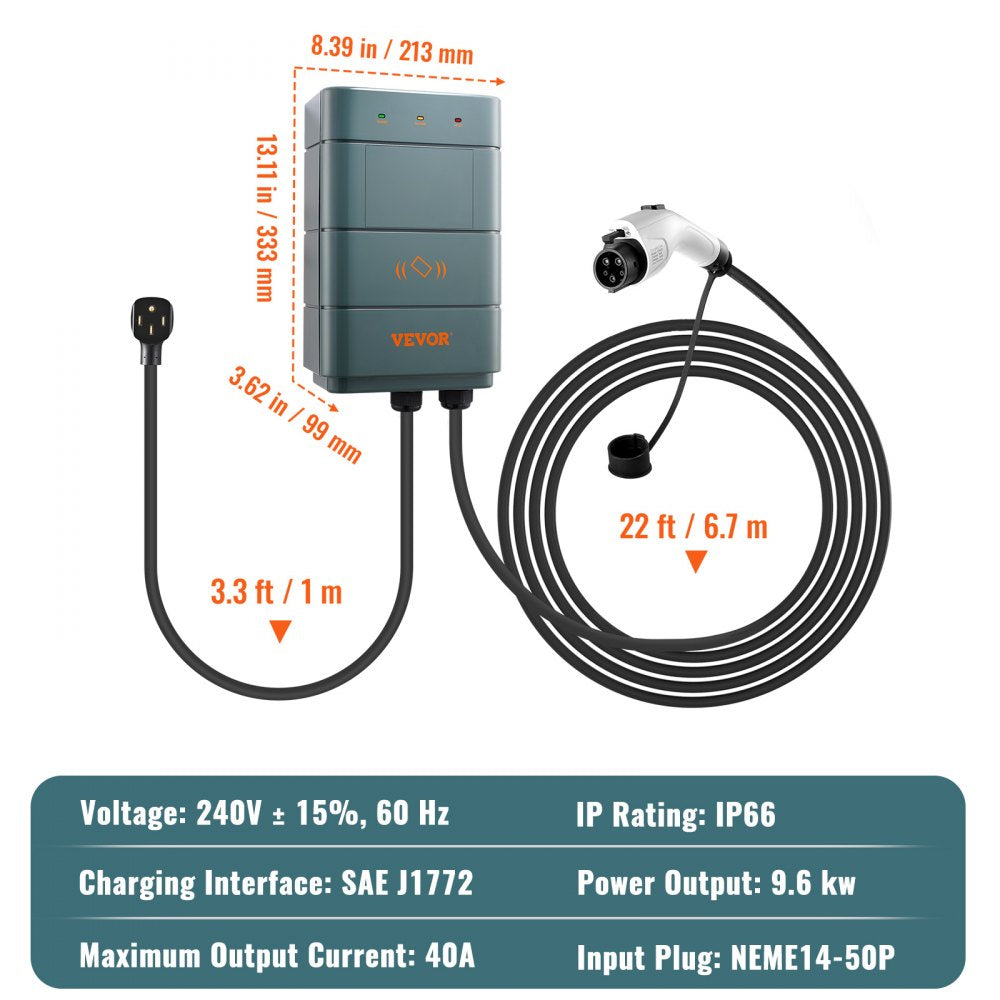

| Item Dimensions (H x W x D) | 13.11 x 8.39 x 3.62 in / 333 x 213 x 92 mm |
| Packing Size (H x W x D) | 20.87 x 16.54 x 7.68 in / 53 x 42 x 19.5 cm |
| Net Weight | 14.88 lbs / 6.75 kg |
| Gross Weight | 18.74 lbs / 8.5 kg |
