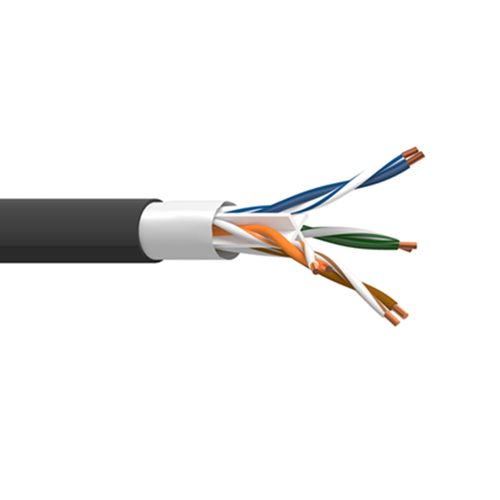

Belden IEA003 23 AWG 4 Pair Solid Cat 6A DataTuff FEP Jacket Cable

Description:

Industrial Ethernet Cat 6A, 4 Bonded-Pair, 23 AWG Solid Bare Copper, FEP Insulation, Patented X-Spline and EquiBlock Technologies, U/UTP-Unshielded, FEP Jacket, CMP.

Insulation:

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Insulation Diameter: 0.044 in (1.1 mm)

Outer Jacket:

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Diameter: 0.269 in (6.83 mm)
• Overall Cable Diameter (Nominal): 0.269 in (6.83 mm)
• Center Member (Patented X-Spline), EquiBlock Barrier Technology

Standards:

• Voltage Rating: 300 V RMS
• Operating Temperature: -70°C To +200°C

Applications:

• extreme temp, exposure to oil and gasoline, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc.

Specifications:

• Size (AWG): 23
• No. of Pairs: 4
• Stranding: Solid
• Conductor Material: BC - Bare Copper
• Part Number: IEA003
