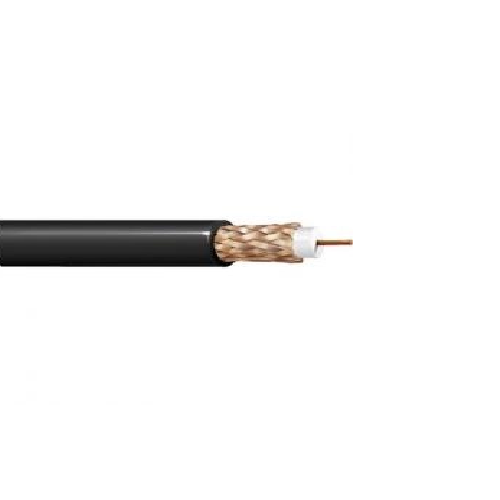

Belden 9290 18 AWG 1 Conductor Solid RG6 75 Ohm Coax Cable

Description:

18 AWG solid 0.038" bare copper conductor, foam polyethylene insulation, double bare copper braid shields (95% coverage), PVC jacket..

Insulation:

• Material: PE - Polyethylene (Foam)
• Nominal Diameter: 0.18 in

Outer Shield:

• Layer 1: Outer Shield Type Braid, Bare Copper (BC) Material, Coverage 95%

• Layer 2: Outer Shield Type Braid, Bare Copper (BC) Material, Coverage 95%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.288 in
