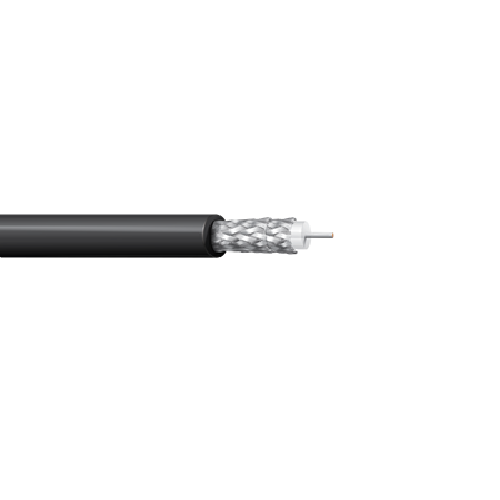

Belden 9273 19 AWG 1 Conductor Solid RG-223 Mil-Spec 50 Ohm Coax Cable

Description:

Mil-Spec Coax, 50 Ohm, RG-223, 19 AWG Solid Silvered Copper Conductor, PE Insulation, Double 95% Silvered Copper Braid Shield, PVC Jacket (Non-Contaminating), CMX, Commercial, non-QPL.

Insulation:

• Material: PE - Polyethylene
• Nom. Insulation Diameter: 0.117 in (2.97 mm)

Outer Shield:

• Layer 1: Outer Shield Type Braid, Silvered Copper (SC) Material, Coverage 95%

• Layer 2: Outer Shield Type Braid, Silvered Copper (SC) Material, Coverage 95%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride (Non-Contaminating)
• Nom. Diameter: 0.212 in (5.38 mm)
• Overall Cable Diameter (Nominal): 0.212 in (5.38 mm)

Applications:

• High frequency microwave and satellite, Point-to-point and point-to-multipoint wireless antenna communication
