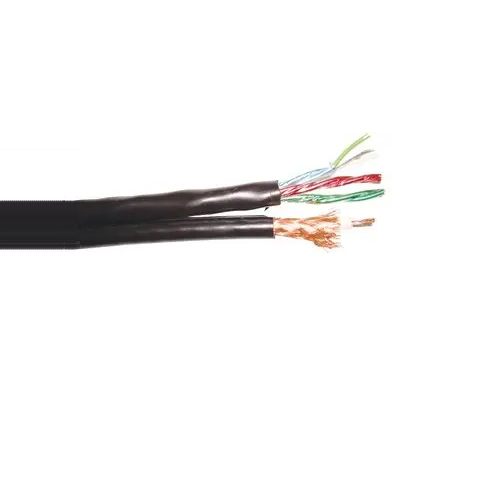

Belden 9165 22 AWG 7x30 Stranding RG-59 Composite ENG Cable

Description:-

Composite, RG-59 22 AWG BC Coax, stranded (7x30), BC braid 95% coverage, 3 PR 22 AWG TC, stranded (7x30), w/drain wire, PVC jacket.

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 0.146 in (3.71 mm)

• Material: PVC - Polyvinyl Chloride
• Nom. Insulation Diameter: 0.054 in (1.4 mm)

 Inner Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Bare Copper (BC)
• Material Trade Name: Beldfoil (Z-Fold)
• Coverage: 95%

• Layer: 2
• Shield Type: Braid
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%

Outer Shield:-

• Layer: 1
• Outer Shield Type: Braid
• Material: Bare Copper (BC)
• Coverage: 95%

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.290 x 0.561 in

Standards:-

• UL Voltage Rating: 30 V RMS
• Nominal Characteristic Impedance: 75 Ohm, 35 Ohm
• Operating Temperature Range: -30°C To +60°C

Specifications:-

• Size (AWG): 22
• Stranding: 7x30
• Nominal Diameter: 0.03 in
• Conductor Material: BC - Bare Copper

• Size (AWG): 22
• Stranding: 7x30
• Nominal Diameter: 0.029 in
• Conductor Material: TC - Tinned Copper
• Part Number: 9165
