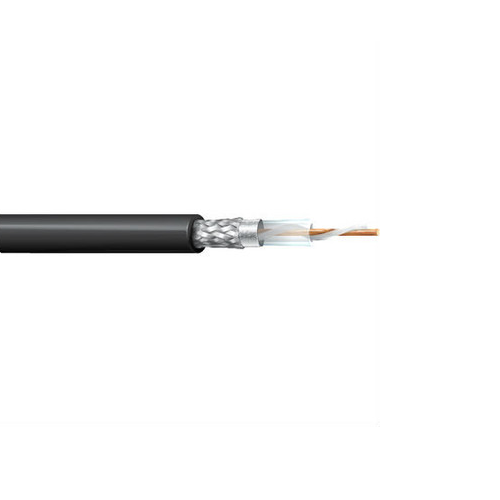

Belden 89913 10 AWG 1 Conductor Solid RG-8 Wireless Transmission 50 Ohm Coax Cable

Description:

50 Ohm Wireless Transmission Coax, RG-8, 10 AWG Solid Bare Copper Conductor, FEP Insulation, Foil + 90% Tinned Copper Braid Shield, PVDF Jacket, CMP.

Insulation:

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Insulation Diameter: 0.292 in (7.42 mm)
• Solid FEP monofilament spiral around conductor. Solid FEP tube over monofilament

Outer Shield:

• Layer 1: Outer Shield Type Tape, Tri-Laminate (Alum+Poly+Alum) Material, Duobond II Material Trade Name, Coverage 100%

• Layer 2: Outer Shield Type Braid, Tinned Copper (TC) Material, Coverage 90%

Outer Jacket:

• Material: PVDF - Polyvinylidene Fluoride
• Nom. Diameter: 0.360 in (9.14 mm)
• Overall Cable Diameter (Nominal): 0.360 in (9.14 mm)

Applications:

• Point-to-point and point-to-multipoint wireless antenna communication; Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio
Frequency Identification)
