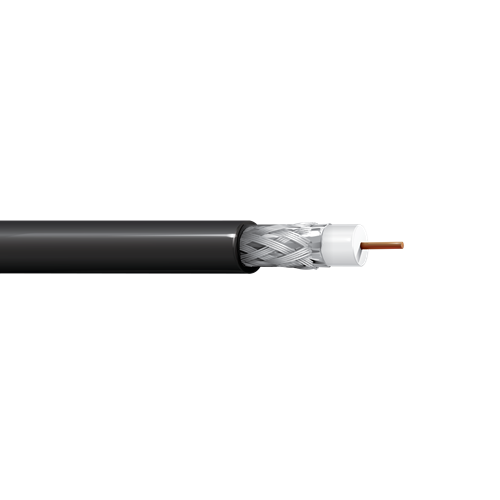

Belden 89248 18 AWG 1 Conductor Solid RG-6 Analog Video 75 Ohm Coax Cable

Description:

75 Ohm Analog Video Coax, RG-6, 18 AWG Solid Bare Copper Conductor, FEP Insulation, Foil + 65% Tinned Copper Braid Shield, FEP Jacket, CMP.

Insulation:

• Material: FEP - Fluorinated Ethylene Propylene (Foam)
• Nom. Insulation Diameter: 0.168 in (4.27 mm)

Outer Shield:

• Layer 1: Outer Shield Type Tape, Tri-Laminate (Alum+Poly+Alum) Material, Duofoi Material Trade Name, Coverage 100%

• Layer 2: Outer Shield Type Braid, Tinned Copper (TC) Material, Coverage 65%

Outer Jacket:

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Diameter: 0.222 in (5.64 mm)
• Overall Cable Diameter (Nominal): 0.222 in (5.64 mm)

Applications:

• Standard analog video
