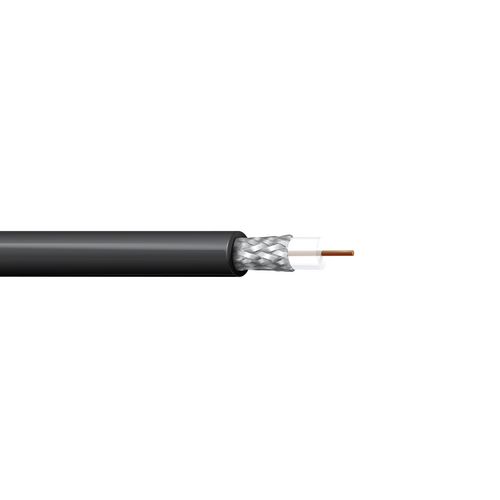

Belden 88240 20 AWG 1 Conductor Solid Bare Copper 300V Wireless Transmission Coax Cable

Description:

50 Ohm Wireless Transmission Coax, RG-58, 20 AWG Solid Bare Copper Conductor, FEP Insulation, 95% Tinned Copper Braid Shield, FEP Jacket, CMP.

Insulation:

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Insulation Diameter: 0.107 in (2.72 mm)

Outer Shield:

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 95%

Outer Jacket:

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Diameter: 0.159 in (4.04 mm)
• Overall Cable Diameter (Nominal): 0.159 in (4.04 mm)

Standards:

• Voltage Rating: 300 V (CMP)
• Operating Temperature: -70°C to +200°C
• Nom. Characteristic Impedance: 53 Ohm

Applications:

• Point-to-point and point-to-multipoint wireless antenna communication; Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio Frequency Identification)

Specifications:

• Size (AWG): 20
• No. of Conductor: 1
• Stranding: Solid
• RG Type: 58
• Nom. Diameter: 0.032 in
• Conductor Material: BC - Bare Copper
• Part Number: 88240
