Product Information
Belden 8213 14 AWG 1 Conductor Solid RG11 Analog Video 75 Ohm Coax Cable
Description:

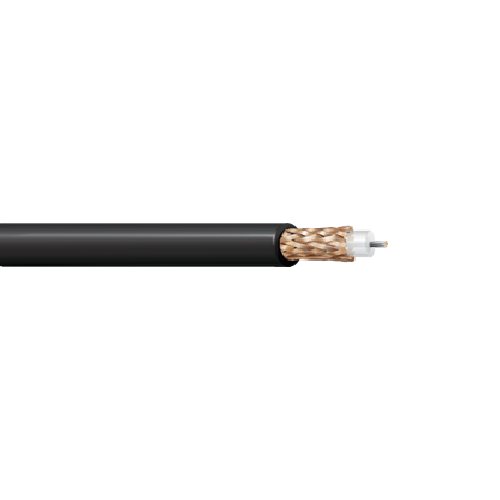

14 AWG solid 0.064" bare copper conductor, gas-injected foam HDPE insulation, bare copper braid shield (95% coverage), polyethylene jacket.
Insulation:
• Material: PE - Polyethylene (Foam)
• Nominal Diameter: 0.285 in
• Gas Injected
Outer Shield:
• Outer Shield Type: Braid
• Material: Bare Copper (BC)
• Coverage: 95%
Outer Jacket:
• Material: PE - Polyethylene
• Nom. Diameter: 0.405 in
Specifications:
• Size (AWG): 14
• Conductor Count: 1
• Stranding: Solid
• Nom. Diameter: 0.064 in
• RG Type: 11
• Impedance: 75 Ohm
• Conductor Material: BC - Bare Copper
• Part Number: 8213
• Size (AWG): 14
• Conductor Count: 1
• Stranding: Solid
• Nom. Diameter: 0.064 in
• RG Type: 11
• Impedance: 75 Ohm
• Conductor Material: BC - Bare Copper
• Part Number: 8213
