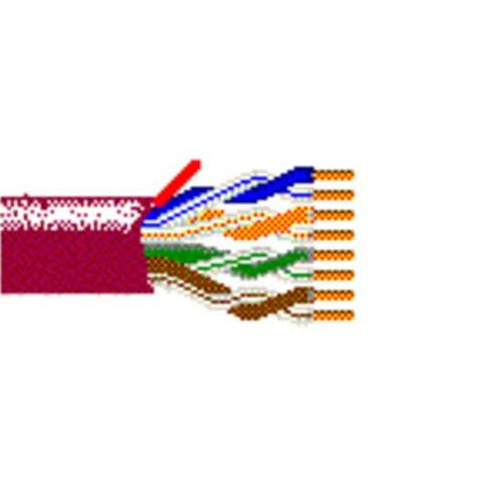

Belden 7987R 24 AWG 4 Pair Solid Bare Copper 300V NanoSkew cable

Description:-

NanoSkew 24 AWG twisted pairs, solid bare copper conductors, non-plenum, polyolefin insulation, skew 2.2ns/100m nominal, rip cord, PVC jacket.

Insulation:-

• Material: PO - Polyolefin

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.195 in
• Overall Cable Diameter (Nominal): 0.246 in (6.25 mm)

Standards:-

• UL Voltage Rating: 300 V RMS
• Operating Temperature Range: -20°C To +75°C

Specifications:-

• Size (AWG): 24
• No. of Pair: 4
• Stranding: Solid
• Conductor Material: Bare Copper
• Part Number: 7987R
