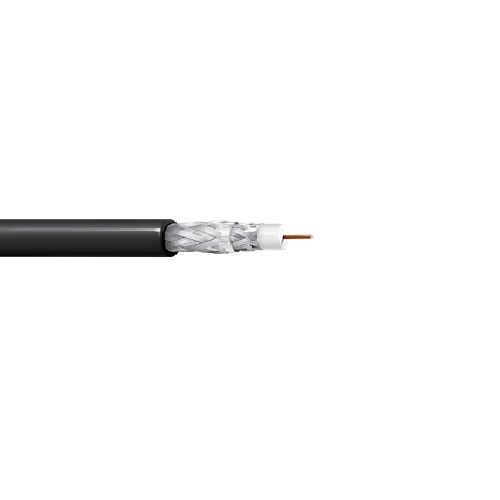

Belden 7916AP 18 AWG 1 Conductor Solid Series 6 Broadband Coax Cable

Description:

Broadband Coax, Series 6, 18 AWG Solid Bare Copper Conductor, FEP Insulation, Foil + 60% Aluminum Braid + Foil + 40% Aluminum Braid Shield, Flamarrest Jacket, CMP

Insulation:

• Material: FEP - Fluorinated Ethylene Propylene (Foam)
• Nom. Insulation Diameter: 0.170 in (4.32 mm)

Outer Shield:

• Layer 1: Outer Shield Type Tape, Tri-Laminate (Alum+Poly+Alum) Material, Duobond II Material Trade Name, Coverage 100%
• Layer 2: Outer Shield Type Braid, Aluminum Material, Coverage 60%
• Layer 3: Outer Shield Type Tape, Tri-Laminate (Alum+Poly+Alum) Material, Duofoil Material Trade Name,  Coverage 100%
• Layer 3: Outer Shield Type Braid, Aluminum Material, Coverage 40%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.248 in (6.30 mm)
• Overall Cable Diameter (Nominal): 0.248 in (6.30 mm)

Construction Details:

• Series Type: 6

Applications:

• Broadband, Cable Television (CATV), RF drop cable, Direct Broadcast Satellite (DBS), Over-The-Air (OTA) antennas
