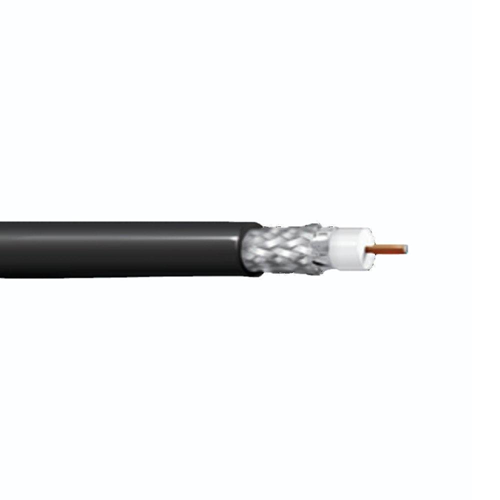

Belden 7810A 10 AWG 1 Conductor Solid RG-8 Wireless Transmission 50 Ohm Coax Cable

Description:

50 Ohm Wireless Transmission Coax, RF400, RG8, 10 AWG Solid Bare Copper Covered Aluminum Conductor, PE Insulation, Duofoil II + 95% Tinned Copper Braid Shield, PE Jacket.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 0.285 in (7.24 mm)

Outer Shield:

• Layer 1: Outer Shield Type Tape, Tri-Laminate (Alum+Poly+Alum) Material, Duobond II Material Trade Name, Coverage 100%

• Layer 1: Outer Shield Type Braid, Tinned Copper (TC) Material, Coverage 95%

Outer Jacket:

• Material: PE - Polyethylene
• Nom. Diameter: 0.403 in (10.2 mm)
• Overall Cable Diameter (Nominal): 0.403 in (10.2 mm)

Applications:

• Point-to-point and point-to-multipoint wireless antenna communication; Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio
Frequency Identification)
